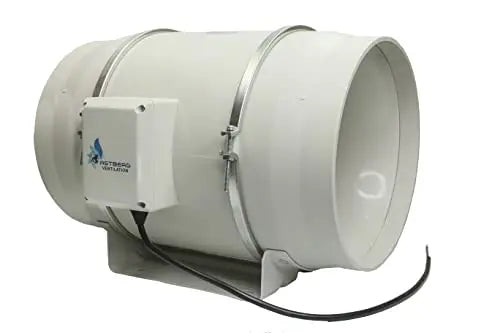

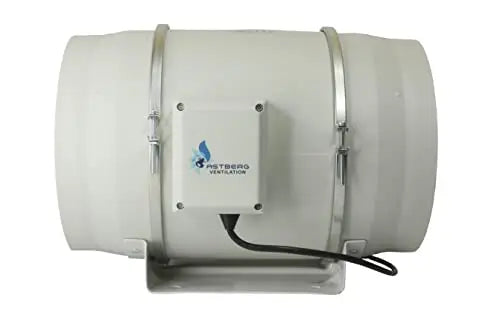

ASTBERG SILENT MIXFLOW CIRCULAR INLINE DUCT VENTILATION FAN AF250 1405CMH 250MM 10"
ASTBERG SILENT MIXFLOW CIRCULAR INLINE DUCT VENTILATION FAN AF250 1405CMH 250MM 10"
Brand: Astberg
Color: White
Features:

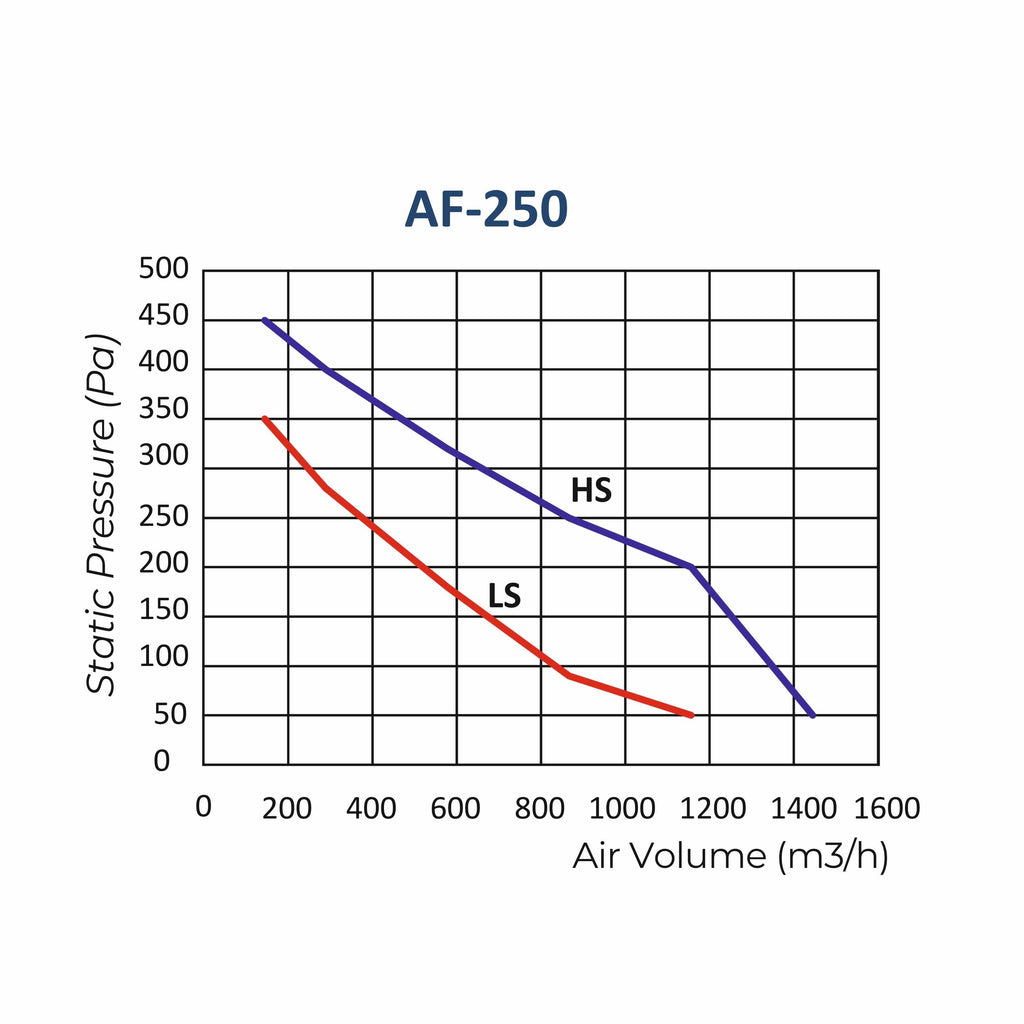

- Max. airflow: 1405m3/h
- Max. air pressure: 352Pa
- Voltage:220/50(V/Hz)
- Current:1.20(Amps)
- Net weight: 7.5kgs
- Power: 225 W
- Speed:- 2450 rpm
- Noise:- 66/58 db.
- Full ABS plastic body, light weight but with enough strength, double insulation

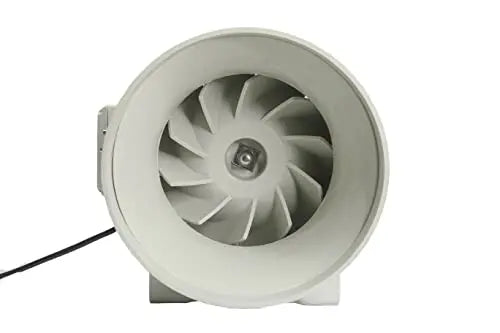

- Mixed-flow impeller design, high pressure and large air flow, high efficient, low noise.
- Special snap joints design, easy installation, perfect seal conditions, easy maintenance. It may be used effectively to ventilate conference room, office, public place, hotel, house, and modernized toilets and washrooms.

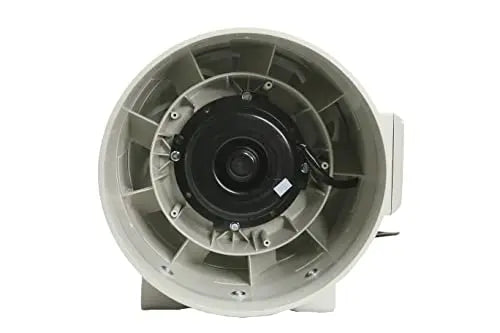

- Moreover, the motor and impeller are located at the center of the structure which means you can easily install, remove or maintain them without adjusting the pipeline even in sealed space. Also, it can be installed randomly in any sides of the pipeline, with any angle of the pipeline. Furthermore, this product can be installed with series connection if you need more pressure.
model number: AF
Package Dimensions: 15.1 x 12.2 x 11.3 inches
