Astberg APB200 Purification Filter Box: HEPA and Carbon Filtration for 200 mm (8") Duct Ventilation
Astberg APB200 Purification Filter Box: Three-Stage HEPA and Carbon Air Purification for 8" Duct Ventilation
The Astberg APB200 is a 200 mm duct-mounted filter box with a primary filter, HEPA filter, and activated carbon filter. Paired with a silent 8" inline fan, it cleans incoming air of PM2.5, odours, and formaldehyde before it reaches occupied rooms.
Price: Rs. 19,790 (MRP Rs. 23,790, 17% off)
Why Does Ventilation Alone Fail During a Severe Pollution Crisis?
When outdoor smog peaks, bringing in fresh air can mean bringing in pollution. Closing the windows blocks some of it, but it also traps CO₂, moisture, and chemical vapours from paint, furniture, and cleaning products.
A home air purifier cleans the air already in a room, but it doesn’t replace stale air. Ventilation replaces stale air, but unfiltered ventilation pulls outdoor pollutants inside.
Combining both is the ultimate solution. A ducted ventilation system brings in fresh air, and a filter stage cleans it first. The APB200 provides that filter stage for mid-size 8" duct systems, adding true air purification to ducted ventilation.
What Is the Astberg APB200?
The APB200 is a purification filter box that connects to a 200 mm (8") duct. It doesn’t move air by itself. You pair it with a silent 8" inline fan, and the box filters the air passing through.
Its compact size suits hidden installations in ceiling voids and service spaces. It also fits sensitive environments such as clinics, laboratories, and premium offices, where air quality matters.
Three-Stage Filtration
- Primary filter: captures larger particles and dust, protecting the stages behind it
- HEPA filter: removes fine particles, including PM2.5
- Activated carbon filter: adsorbs odours and chemical pollutants such as formaldehyde
How Do HVAC, Duct, AHU, and Exhaust Fan Work Together With a HEPA Filter?
Healthy indoor air needs a complete air set: fan, filter, duct, and extraction. Each part has its own job.
The Role of Each Component
- Duct network: The pathway that carries air. The APB200 connects inline to a 200 mm duct.
- Ventilator or inline fan: The fan pushes or pulls air through the duct and filter box. Pair the APB200 with a silent 8" inline fan sized for your airflow.
- HEPA filter and carbon: The HEPA stage handles fine particles, while activated carbon targets odours and chemical vapours. Together they cover both particulates and gases.
- HVAC: The system that heats, cools, and circulates air. Most HVAC systems recirculate indoor air, so a filtered fresh air branch adds clean outdoor air.
- AHU (Air Handling Unit): In large buildings, an AHU conditions and distributes air centrally. The APB200 gives single-zone systems a similar filtration stage without a full AHU.
- Exhaust fan: Stale air needs a way out. An exhaust fan or ventilator in the kitchen or bathroom lets exhaust air leave while filtered fresh air comes in.
The Airflow Path in Four Steps
- The fan draws outdoor air into the duct.
- The primary filter removes larger particles.
- The HEPA and activated carbon filters remove fine particles, odours, and chemical vapours.
- Clean air enters the room while an exhaust fan removes stale air.
Key Features of the APB200
- Three-stage filtration: primary filter, HEPA filter, activated carbon filter
- PM2.5 and formaldehyde filtration
- Tool-free filter replacement for fast maintenance and less downtime
- 200 mm (8") duct connection
- Compact design for hidden installation
- Works with a silent fan for quiet operation
- Robust build designed for long life with minimal maintenance
- Supply and exhaust use: air filters can be used in supply air streams or exhaust air streams

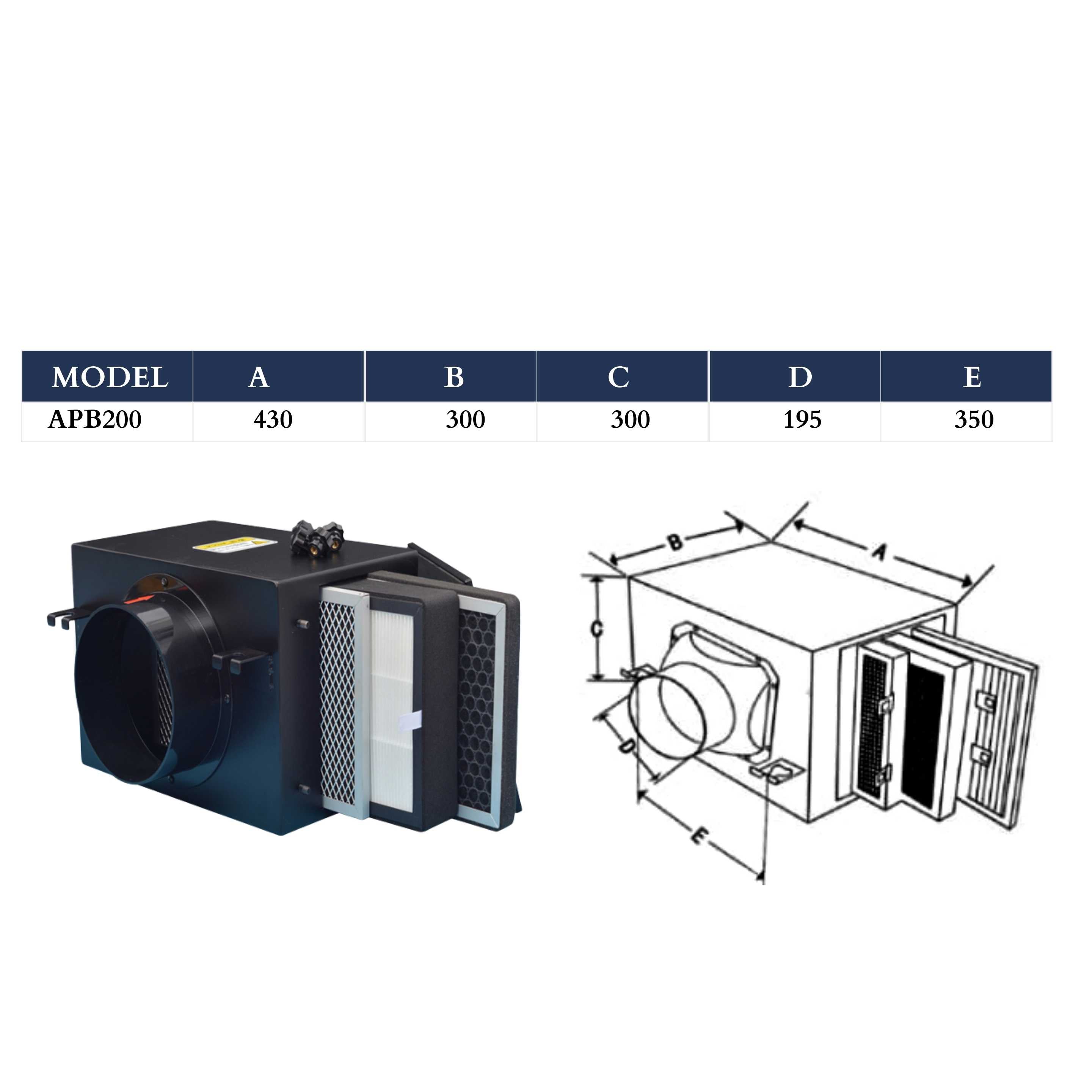

Technical Specifications
| Specification | Value |
|---|---|
| Model | Astberg APB200 |
| Type | Purification filter box (passive, requires a fan) |
| Duct size | 200 mm (8") |
| Filtration stages | Primary filter, HEPA filter, activated carbon filter |
| Target pollutants | PM2.5, formaldehyde, odours |
| Filter replacement | Tool-free |
Where Does the APB200 Work Best?
- Medical clinics: cleaner supply air for waiting rooms and consultation areas
- Premium offices: filtered fresh air for occupied workspaces
- Large homes and apartments: filtered ventilation for living areas
- Laboratories: filtration for controlled environments
- Meeting rooms and boardrooms: odour and fine particle control in busy spaces
Frequently Asked Questions
How does an AHU differ from a standard home air purifier?
An AHU is a central unit that conditions and distributes air through ductwork across a whole building. A standard home air purifier only filters recirculated air in one room. A duct filter box like the APB200 sits between the two: it filters air inside a duct, so you get clean fresh air without a full AHU.
Does the APB200 need a fan to work?
Yes. The APB200 is a filter box and has no motor of its own, so it needs a silent 8" inline fan or ventilator to move air through it. Size the fan for the added resistance of the HEPA and carbon filters.
Can a duct filter box replace a home air purifier?
For many rooms, yes. The APB200 filters incoming air with a HEPA filter and activated carbon, and your ventilation system keeps that air flowing through the space. It does not recirculate room air, so some users keep a portable purifier for spot cleaning.
Add True Air Purification to Your 8" Duct Ventilation with the APB200
Stop choosing between fresh air and clean air. The Astberg APB200 filters your ducted ventilation with HEPA and carbon, and the filters change without tools.
