An exhaust fan is a mechanical ventilation device that removes air from an enclosed space and pushes it outside or into a duct system. Unlike a regular fan that simply circulates air within a room, an exhaust fan actively extracts air — along with the moisture, heat, odours, and airborne particles it carries.

Exhaust fans are most commonly installed in:

• Bathrooms and toilets
• Kitchens and cooking areas
• Laundry rooms
• Utility and server rooms
• Garages and workshops
• Commercial and industrial spaces

In each of these environments, the fan solves a specific problem: too much moisture, too much heat, too many pollutants, or a combination of all three.

How Does a Ceiling Exhaust Fan Work?

A ceiling exhaust fan is mounted directly into the ceiling and draws air upward from the room. The extracted air is directed through a duct that exits through the wall, roof, or soffit outside the building.

The process is straightforward:

1. The fan motor spins the impeller or blades at high speed.
2. This creates a low-pressure zone at the fan inlet.
3. Room air — laden with moisture, heat, and particles — is drawn upward into the fan.
4. The air is pushed into the connected ductwork.
5. It exits outside the building, taking all pollutants with it.
6. Fresh air naturally enters the room through gaps, doors, or a dedicated fresh air inlet to replace the extracted volume.

A ceiling-mounted position gives exhaust fans a significant advantage: since warm, moist air naturally rises, a ceiling fan captures it at its highest concentration before it can settle on walls and surfaces.

Why Exhaust Fans Matter: The Real Risks of Poor Ventilation

Many homeowners underestimate what inadequate ventilation actually costs them. Here is what poor air extraction leads to over time:

1. Mould and Mildew Growth

Excess moisture in bathrooms and kitchens is the primary cause of mould. Once mould establishes itself behind tiles, in ceiling cavities, or within wall cavities, it is expensive to remediate and can cause serious respiratory problems.

2. Structural Damage

Moisture condenses on cold surfaces, seeping into paint, plaster, timber framing, and insulation. Over years, this causes paint to peel, timber to rot, and plaster to crumble — leading to costly repairs.

3. Poor Indoor Air Quality

Cooking fumes, VOCs from cleaning products, carbon dioxide from occupants, and biological contaminants all accumulate in poorly ventilated spaces. Studies consistently link poor indoor air quality to headaches, fatigue, allergies, and long-term respiratory conditions.

4. Odour Build-up

Without extraction, odours from cooking, bathrooms, and pets linger in fabrics, walls, and furnishings long after their source is gone.

5. Energy Inefficiency

Humid air is harder to heat and cool. Homes with poor ventilation often have higher energy bills because HVAC systems must work harder to maintain comfortable temperatures.

A properly sized and positioned exhaust fan eliminates all of these problems at their source.

Types of Exhaust Fans

Not all exhaust fans are the same. Here is a breakdown of the main types and where each one excels.

Ceiling Exhaust Fans

The most common type for residential use. Ceiling exhaust fans are mounted flush with the ceiling, providing a clean, unobtrusive appearance. They are ideal for bathrooms, toilets, laundry rooms, and bedrooms. Since they mount to the ceiling, they capture hot, moist air right at its highest point.

Best for: Bathrooms, toilets, bedrooms, laundry rooms

Explore Astberg's range of ceiling exhaust fans: astbergventilation.com/collections/ceiling-exhaust-fans

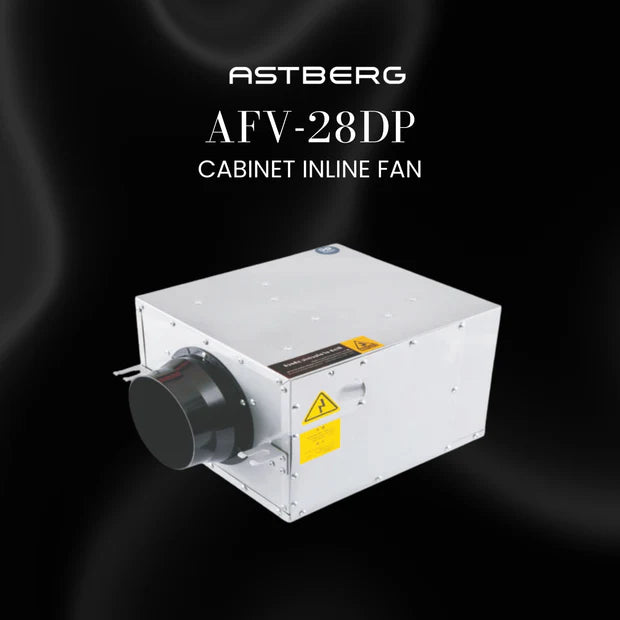

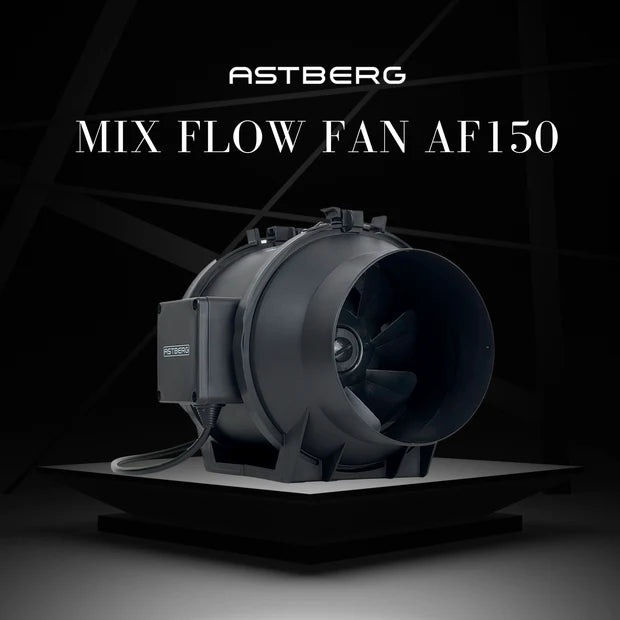

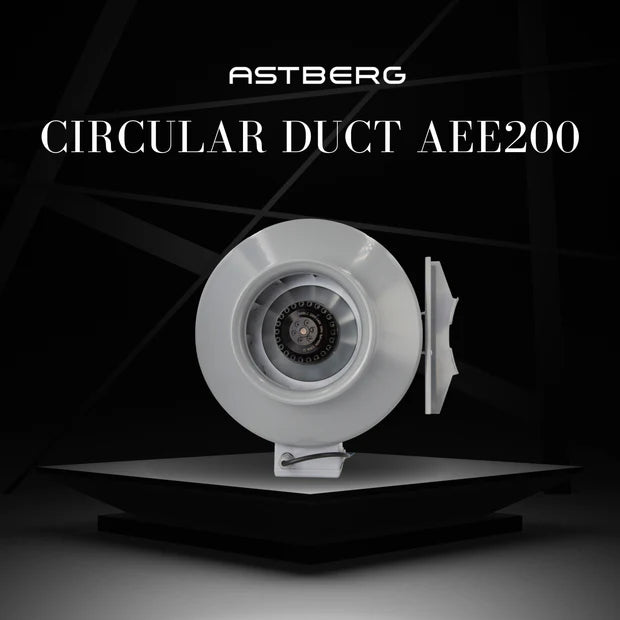

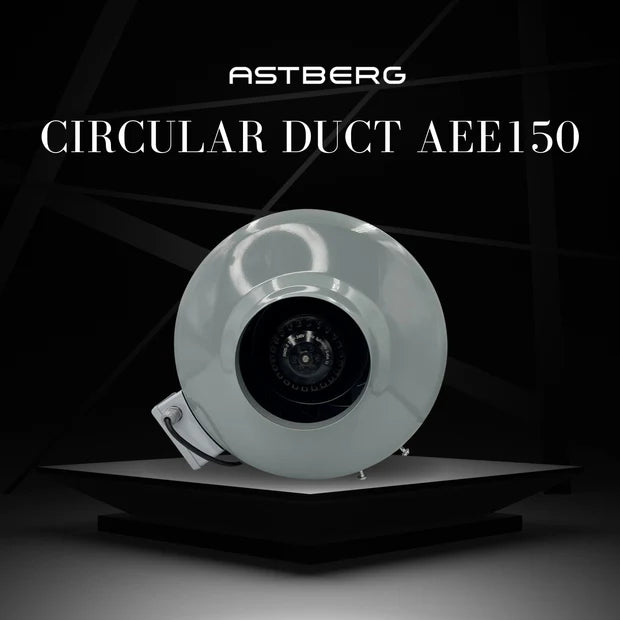

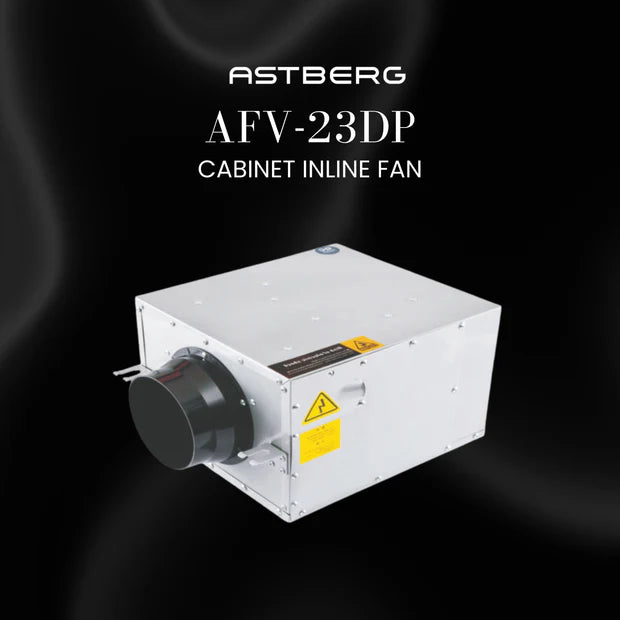

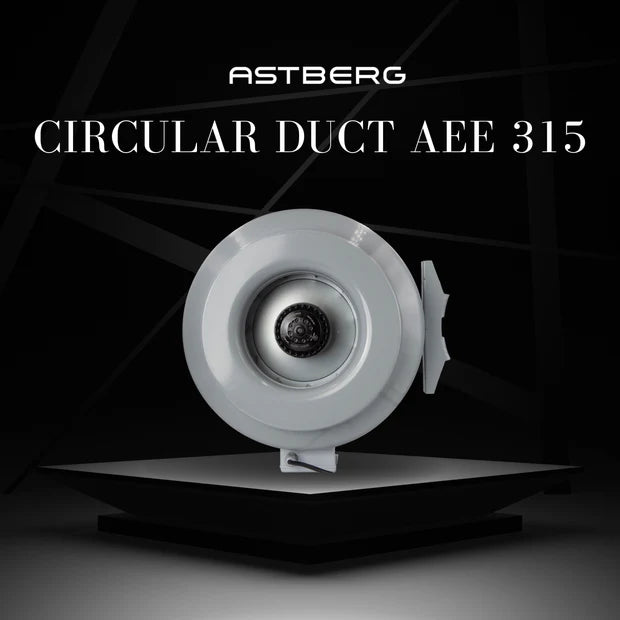

Inline Exhaust Fans

Inline fans are installed within the ductwork itself, rather than at the room surface. This makes them ideal for longer duct runs, multi-room ventilation systems, or spaces where fan noise must be kept to an absolute minimum. Because the motor sits away from the room (in the ceiling cavity, attic, or roof space), inline fans are significantly quieter at the point of extraction.

Best for: Master bathrooms, bedrooms, open-plan kitchens, multi-room systems

Kitchen Exhaust Fans

Kitchen fans are designed to handle the higher volumes of cooking fumes, grease particles, steam, and heat generated in cooking areas. They typically have higher airflow ratings and grease filters. Some models connect to rangehood systems; others work as standalone ceiling or wall-mounted units.

Best for: Kitchens, cooking areas, food service environments

Commercial and Industrial Exhaust Fans

For large commercial spaces, warehouses, server rooms, and industrial facilities, heavy-duty exhaust fans provide the high-volume airflow required to maintain safe working environments. These units are built for continuous operation and significantly higher static pressure requirements.

Best for: Offices, retail spaces, warehouses, server rooms, manufacturing.

What to Look for in a Ceiling Exhaust Fan

1. Airflow Capacity (m³/h or CFM)
Airflow is measured in cubic metres per hour (m³/h) or cubic feet per minute (CFM). The right capacity depends on the room volume and the rate at which you need to refresh the air. As a general rule:

• Bathrooms and toilets: aim for 8–10 air changes per hour
• Kitchens: 15–20 air changes per hour
• Utility rooms: 10–15 air changes per hour

To calculate required airflow: multiply room volume (length × width × height) by the desired air changes per hour.

2. Noise Level (dBA)
Noise is measured in decibels (dBA). For bedrooms and bathrooms, look for fans rated below 30 dBA. Ultra-quiet models can operate at 20 dBA or less — roughly equivalent to a whisper. Cheaper fans often produce 45–55 dBA, which is noticeable and distracting.

3. IP Rating (Moisture Resistance)
For bathroom and kitchen use, the fan must have an appropriate Ingress Protection (IP) rating. An IP44 rating (protected against splashing water) is the minimum for most bathroom zones. IP65 or higher is required for positions directly above showers.

4. Energy Efficiency
Modern exhaust fans with EC motors consume a fraction of the energy of older AC motor designs — often 5–15W for a standard bathroom fan. Look for fans with energy efficiency ratings or EC motor specifications.

5. Timer and Humidity Sensor Options

• Timer function: The fan continues to run for a set period after the light or switch is turned off, ensuring complete moisture extraction even after leaving the room.
• Humidity sensor (humidistat): The fan automatically activates when relative humidity exceeds a set threshold and shuts off once levels return to normal. This is the most effective approach for bathrooms used frequently or by multiple people.

6. Build Quality and Warranty
A ventilation fan that fails within a year or develops bearing noise is a false economy. Look for brands that offer genuine warranties and have a track record of reliability.

How to Maintain Your Exhaust Fan

A well-maintained exhaust fan lasts significantly longer and performs more effectively. Follow these simple steps:

1. Clean the grille every 3–6 months. Dust and lint accumulate on the intake grille, reducing airflow. Remove the grille and wash it with warm soapy water.
2. Check the duct annually. Ensure the duct is free of obstructions, condensation build-up, or pest nesting materials.
3. Verify the external vent. Check that the backdraught damper opens freely and that the external outlet is clear of debris.
4. Listen for bearing noise. A grinding or rattling sound from the motor indicates bearing wear. Most fans with serviceable motors can have bearings replaced; others require fan replacement.
5. Test the humidity sensor (if fitted). Breathe gently into the sensor grille — the fan should activate within 30–60 seconds.

Frequently Asked Questions

Q: How do I know what size exhaust fan I need?
Calculate your room volume (length × width × height in metres) and multiply by the required air changes per hour (8–10 for bathrooms, 15–20 for kitchens). The result is your minimum required airflow in m³/h.

Q: Can I install an exhaust fan without ducting?
Ductless (recirculating) fans use a carbon filter to remove odours but do not remove moisture. For bathrooms, ducted extraction is essential. Ductless options are only suitable in situations where ducting is genuinely not possible, and they should not be used as the primary ventilation solution for wet areas.

Q: How long should I run a bathroom exhaust fan after showering?
Run the fan for at least 15–20 minutes after showering to fully extract the moisture introduced during a typical hot shower. A timer function automates this process.

Q: Are ceiling exhaust fans noisy?
The noise level varies significantly by model and price point. Budget fans can generate 45–55 dBA, which is clearly audible. Quality fans designed for residential use operate at 20–30 dBA — quiet enough to be unnoticed during normal conversation. Always check the noise rating (dBA) before purchasing.

Q: What is the lifespan of a ceiling exhaust fan?
A quality ceiling exhaust fan should last 10–20 years with proper maintenance. The motor bearings are the most common failure point — regular use of the fan (rather than infrequent, high-load use) actually extends bearing life by keeping the motor lubricated.

Q: Do exhaust fans help with condensation on windows?
Yes. Window condensation is caused by warm, moist indoor air meeting the cold glass surface. By reducing overall indoor humidity, a properly sized and operated exhaust fan significantly reduces window condensation.
