ASTBERG PURIFICATION FILTER BOX HEPA CARBON DUST FILTER SETUP (150mm/6")- APB150

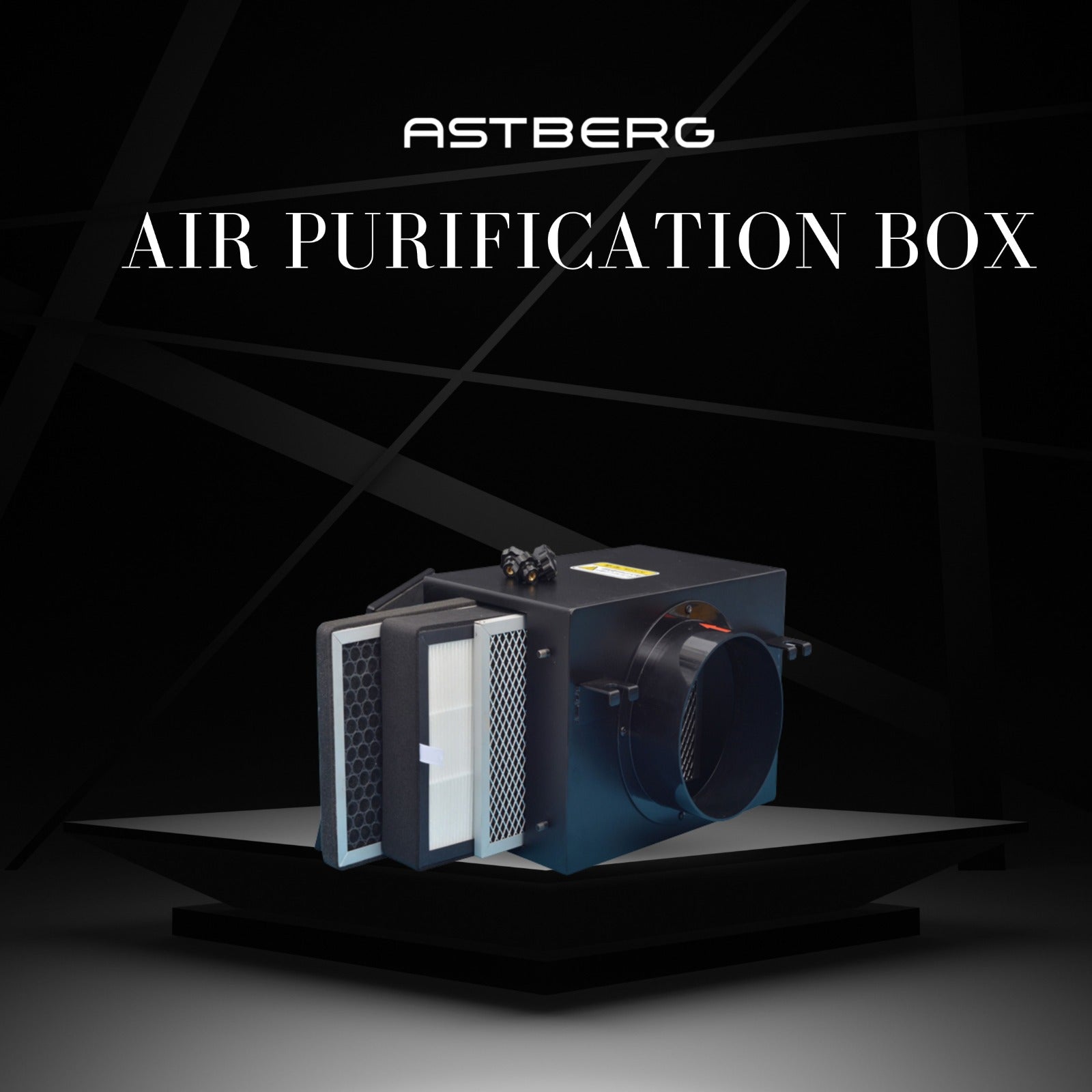

Astberg 150mm Purification Filter Box (APB150): HEPA + Carbon Air Purification for 6" Duct Ventilation
-
The Astberg 150mm Purification Filter Box is a three-stage HEPA and activated carbon filter unit that fits 6-inch duct fans. It removes PM2.5, dust, odours and formaldehyde from incoming air before it reaches your rooms, turning ordinary ventilation into filtered fresh-air supply.
Price: ₹9,490 (MRP ₹12,490, 24% off)
Why Air Demands More Than Opening a Window
Delhi’s AQI swings hard through the year. In October 2026 the city’s AQI fell to 191 on October 24, after three days in the “poor” zone. In winter, cold, stagnant air traps pollutants from crop burning, vehicles, construction dust and industry. Earlier this year, daily PM2.5 peaked at 388 µg/m³ on January 18.
That leaves homeowners with a dilemma:
- Windows closed: CO₂, cooking fumes, moisture and VOCs build up. Indoor air can be worse than outdoor air in poorly ventilated rooms.
- Windows open: you let Delhi’s PM2.5 straight in.
A home air purifier only recirculates and cleans the air already in the room. Proper ventilation replaces stale air with fresh air. Neither one solves the problem alone. The practical answer is to do both: bring outdoor air in through a filter and push stale air out.
What the Filter Box Does
The APB150 sits in the supply path of a 6-inch duct fan. Every litre of air passes through three stages before it is delivered indoors:
Stage 1: Primary filter
Catches coarse dust, lint and larger particles, and protects the finer filters behind it.
Stage 2: HEPA filter
The core of the air purification process. A HEPA filter traps the fine particulate matter (PM2.5) that dominates Delhi’s smog season.
Stage 3: Activated carbon filter
Adsorbs odours, formaldehyde and other gaseous pollutants that particle filters cannot stop.
How It Fits Into Your HVAC and Ventilation System
Think of the filter box as the compact, residential version of what an AHU (Air Handling Unit) does in a large building.
- AHU: In commercial HVAC systems, the Air Handling Unit pulls air through filter banks, conditions it and sends it through the duct network. It is sized for entire floors.
- Duct network: Carries air between spaces. A 150mm (6") duct is common in homes, bedrooms, offices and small clinics.
- Exhaust fan or ventilator: A duct fan or ventilator moves the air. Used as an exhaust fan, it removes stale air. Used as a supply fan, it draws fresh air in.
- Filter box: Placed on the supply side, it cleans the incoming air so the exhaust and supply streams stay balanced without importing pollution.
Together, the fan, duct and filter box form a complete fan-and-filter air set that you can fit into a ceiling void or discreet service space.
Key Features
- Three-stage filtration: primary filter, HEPA filter and activated carbon filter in one box
- Targets PM2.5, formaldehyde and odours: covers both particles and gases
- Fits 6" (150mm) duct fans: designed for use with quiet duct ventilation fans
- Tool-free filter replacement: no tools needed to change the filter core, so servicing is quick
- Compact, concealable design: suits small hidden installation spaces
- Durable construction: built for long service life with minimal maintenance
- Wide application range: homes, offices, hospitals, laboratories and warehouses
Where to Use It
- Delhi-NCR homes and apartments that need fresh air without opening windows during high-AQI days
- Bedrooms and nurseries where overnight air quality matters most
- Offices and workstations with shared air and limited airflow
- Clinics and labs that need cleaner supply air
Frequently Asked Questions
How does an AHU differ from a standard home air purifier?
An AHU is a large central unit within an HVAC system that filters, conditions and distributes air through ducts to many rooms. A home air purifier cleans only the air inside one room and does not bring in fresh air. The Astberg filter box works between the two: it filters air inside a duct so you get ventilation and purification together.
Can a HEPA filter box replace an air purifier during Delhi’s high-AQI season?
It does a different job. A home air purifier cleans the air already in a room, while this filter box cleans the fresh air you bring in through a duct fan. Pairing filtered ventilation with a purifier gives you cleaner air and healthy air exchange, which a sealed room with a purifier alone cannot.
Will it work with any exhaust fan?
It is designed for 6-inch (150mm) duct fans. It works on the supply side, so use it with a duct fan or ventilator that brings fresh air in, not with a standard exhaust fan that only expels air. Match the fan’s airflow to your room size using Astberg’s duct fan size calculator.
CTA: Order the APB150 at ₹9,490, or contact Astberg for help matching it to your duct fan and room size.
