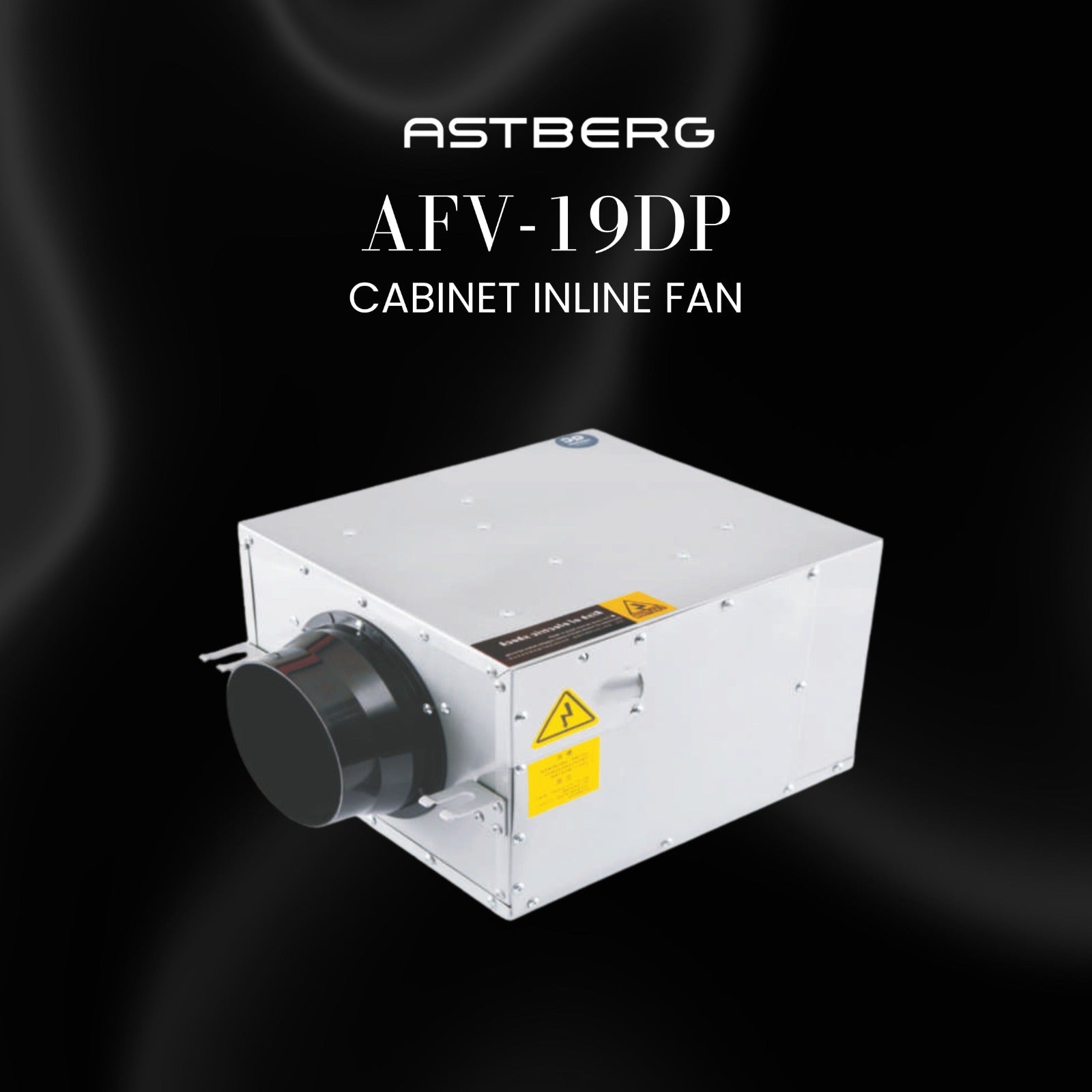

Astberg AFV-19DP Silent Cabinet Fan with G4 Dust Filter: 770 m³/h Quiet Fresh Air Duct Ventilation
Astberg AFV-19DP Silent Cabinet Fan with G4 Dust Filter: 770 m³/h Quiet Fresh Air Duct Ventilation
Astberg AFV-19DP Silent Cabinet Fan with Dust Filter: Quiet 770 m³/h Duct Ventilation for Larger Spaces
The Astberg AFV-19DP is a compact inline cabinet fan with a G4 dust filter. It moves up to 770 m³/h through a 200 mm duct at 31 dB and 114 W, bringing quiet, filtered ventilation to offices, clinics, hotels, and villas.
Price: Rs. 18,990 (MRP Rs. 23,290, 18% off)
Why Does Indoor Air Get Worse During a Severe Pollution Crisis?
When outdoor smog peaks, buildings seal their windows. That cuts some outdoor dust, but it also traps CO₂, moisture, cooking fumes, and odours. Without a steady supply of fresh air, indoor air quality drops fast, especially in busy rooms.
A home air purifier only filters air that is already in the room. It cannot replace stale air or reduce CO₂. Ventilation alone brings in fresh air, but it needs filtration so you aren’t pulling coarse dust inside.
Combining both is the ultimate solution. A ducted fan like the AFV-19DP moves fresh air and filters out coarse dust, while a HEPA filter stage or a room air purifier handles the fine particles. Together they form a complete clean-air setup.
What Is the Astberg AFV-19DP?
The AFV-19DP is a compact box-type fan that connects to a duct system. It fits in ceiling voids, plant spaces, and service areas. Its forward-leaning centrifugal fan and sheet metal housing are designed to keep noise low, even at higher airflow.
Built for Quiet, High-Volume Ventilation
- 770 m³/h airflow serves larger rooms, open offices, and clinic areas
- G4 primary filter captures coarse dust before it enters the duct
- 31 dB noise rating suits quiet commercial and residential spaces
- Sheet metal duct structure helps reduce noise
- Forward-leaning centrifugal fan for efficient, low-noise airflow
How Do HVAC, Duct, AHU, and Exhaust Fan Work Together With a HEPA Filter?
Healthy indoor air needs a complete air set: supply, filtration, distribution, and extraction. Each part has its own job.
The Role of Each Component
- Cabinet fan: The AFV-19DP draws air through the G4 filter and moves it through the duct.
- Duct network: The pathway that carries air. At 140 Pa of static pressure, the AFV-19DP suits medium duct runs with a few bends and grilles.
- HVAC: The system that heats, cools, and circulates air. Most HVAC systems recirculate indoor air, so a dedicated fresh air fan adds the outdoor air they lack.
- AHU (Air Handling Unit): In large buildings, an AHU conditions and distributes air centrally. The AFV-19DP provides a compact alternative for rooms and small zones.
- HEPA filter: The G4 filter is a coarse dust filter. For fine particle capture, add a HEPA filter stage downstream or use a room air purifier.
- Exhaust fan or ventilator: If the AFV-19DP supplies air, stale air needs a way out. An exhaust fan or ventilator in the kitchen or bathroom lets the exhaust air leave while fresh air comes in.
The Airflow Path in Four Steps
- Outdoor air enters through the intake.
- The G4 filter removes coarse dust.
- The AFV-19DP delivers up to 770 m³/h through the duct.
- An exhaust fan or ventilator removes stale air, moisture, and odours.
Key Features of the AFV-19DP
- 770 m³/h airflow for larger rooms and commercial zones
- 140 Pa static pressure for ducted systems
- 31 dB noise rating for quiet operation
- 114 W power on a 220 V / 50 Hz supply
- G4 primary filter for coarse dust
- 200 mm (8") duct connection
- Compact body: 397 × 376 × 254 mm
- Weight: 9 kg
- Forward-leaning centrifugal fan and sheet metal duct structure
Technical Specifications
| Specification | Value |
|---|---|
| Model | Astberg AFV-19DP |
| Type | Silent cabinet fan with pre-filter |
| Airflow | 770 m³/h |
| Static pressure | 140 Pa |
| Noise level | 31 dB |
| Power | 114 W |
| Voltage | 220 V / 50 Hz |
| Filter | G4 primary filter |
| Duct size | 200 mm (8") |
| Dimensions | 397 × 376 × 254 mm |
| Weight | 9 kg |
Where Does the AFV-19DP Work Best?
- Offices: steady fresh air for open-plan and meeting areas
- Clinics: quiet ventilation for waiting and consultation rooms
- Hotels: corridors, lobbies, and guest areas
- Restaurants and cafés: fresh air supply for dining areas
- Villas and large homes: quiet fresh air for living spaces
- Shopping malls and retail: zone-level ventilation with low noise
Frequently Asked Questions
How does an AHU differ from a standard home air purifier?
An AHU is a central unit that conditions and distributes air through ductwork across a whole building. A standard home air purifier only filters recirculated air in one room. A compact duct fan like the AFV-19DP sits between the two: it moves filtered fresh air through ductwork without needing a full AHU.
Does the AFV-19DP include a HEPA filter?
No. It includes a G4 primary filter, which captures coarse dust. For fine particles, pair it with a HEPA stage in your duct system or run a home air purifier alongside it.
Do I need an exhaust fan if I install a cabinet ventilation fan?
In most cases, yes. If the AFV-19DP supplies fresh air, stale air, moisture, and cooking fumes need a path out. Pairing it with an exhaust fan or ventilator keeps air moving through the space.
Bring Quiet, High-Volume Fresh Air Into Your Space with the AFV-19DP
Stop choosing between silence and airflow. The Astberg AFV-19DP delivers 770 m³/h of filtered ventilation at 31 dB.
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
