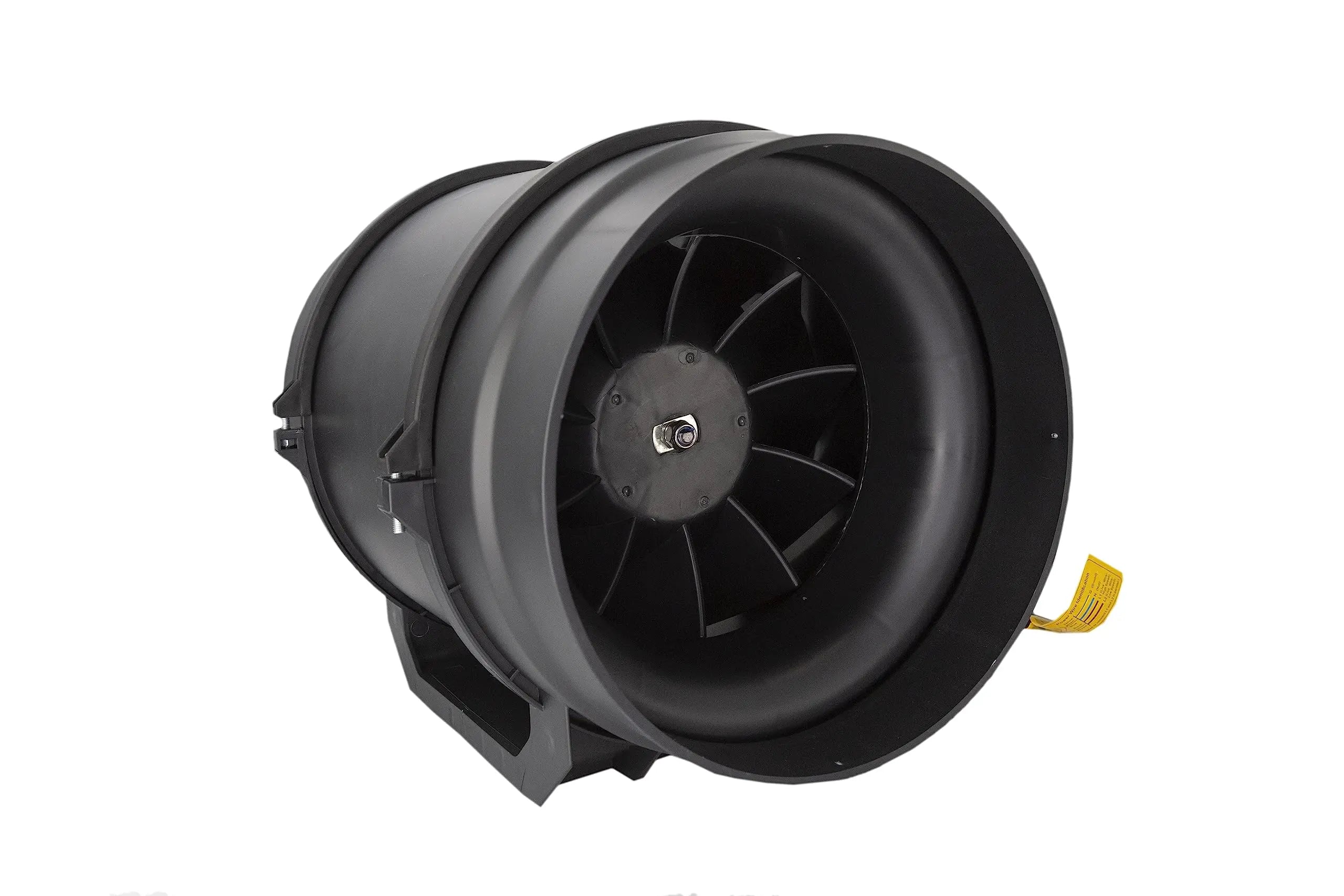

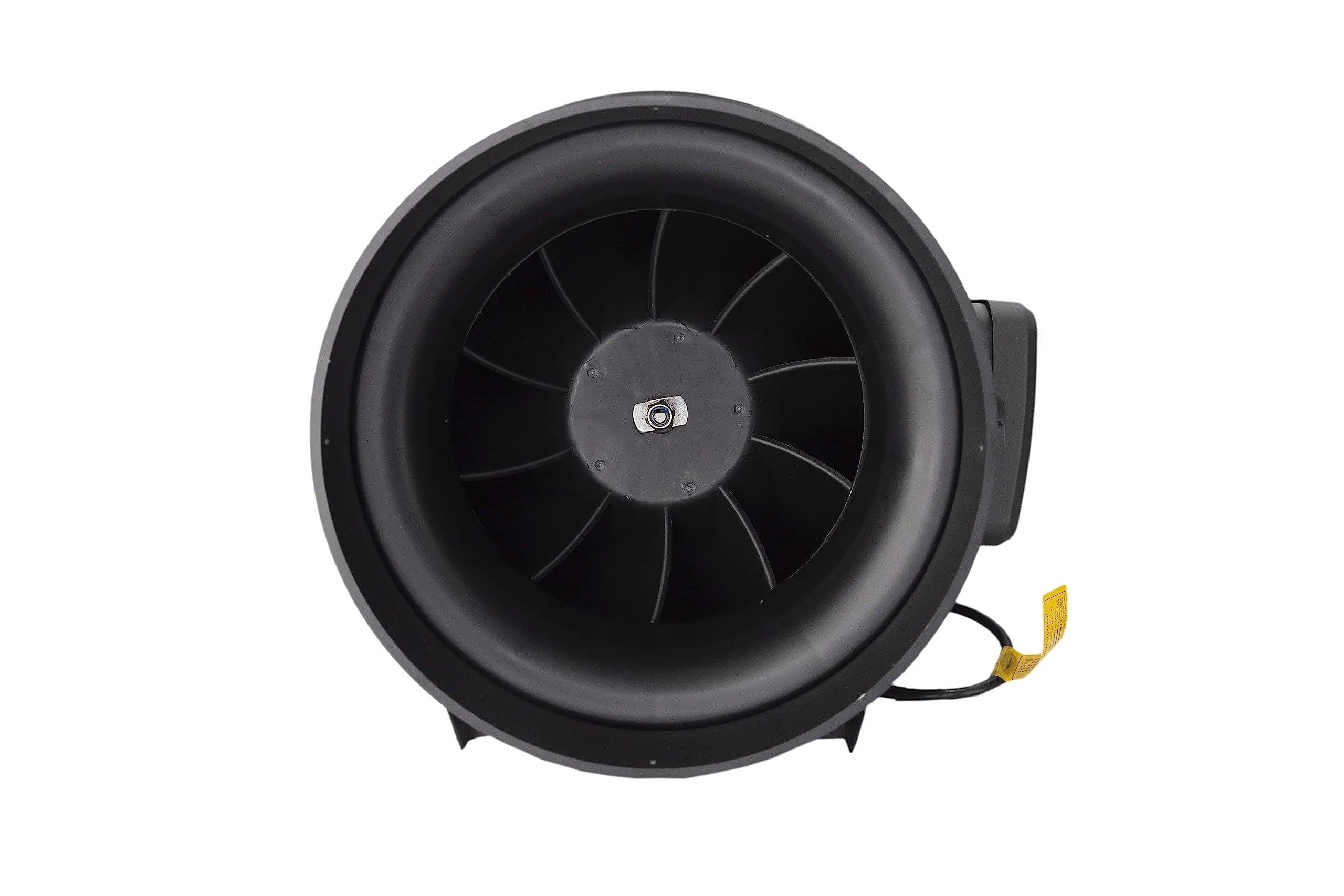

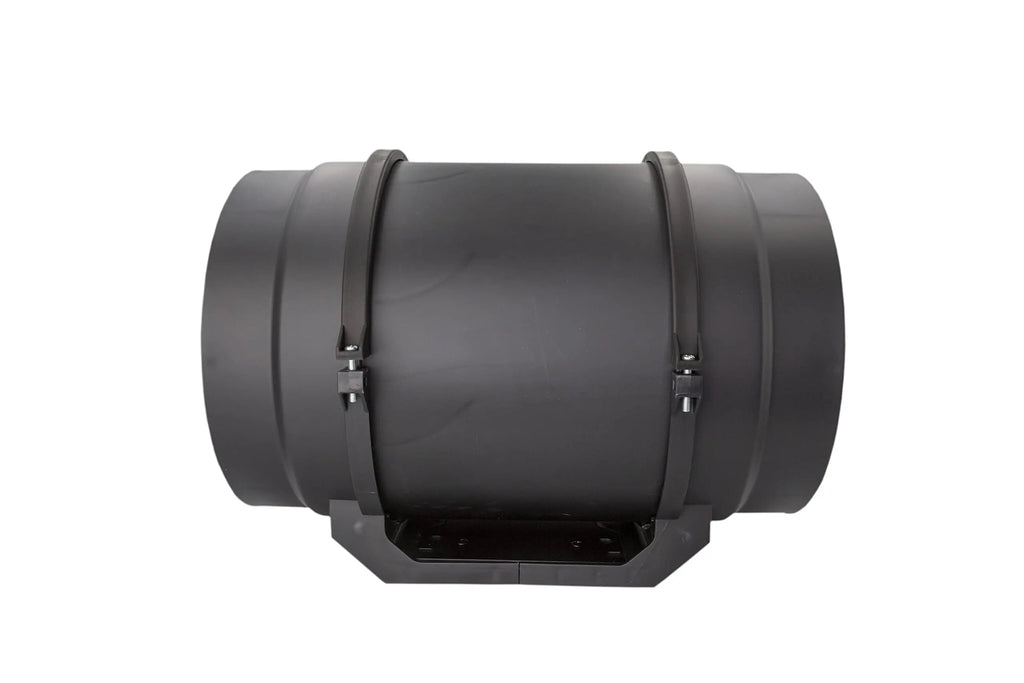

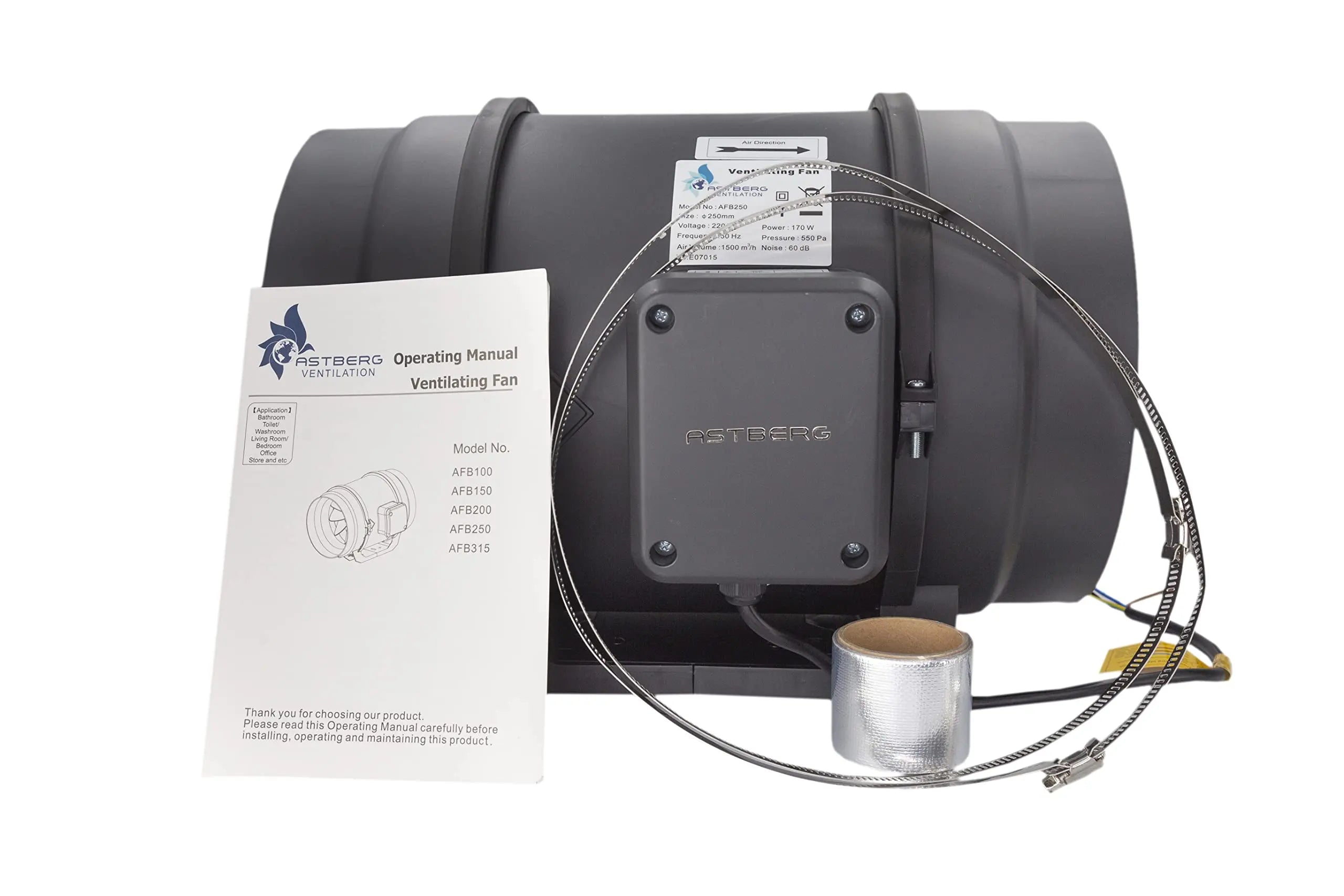

ASTBERG BLACK MIXFLOW CIRCULAR INLINE DUCT VENTILATION FAN WITH SWITCH AFB250 1500CMH 250MM 10"
ASTBERG BLACK MIXFLOW CIRCULAR INLINE DUCT VENTILATION FAN WITH SWITCH AFB250 1500CMH 250MM 10"
Exhaust Fan
Product Specifications:
- Model: AFB250
- Size of Duct: 250MM / 10"
- Max. Airflow: 1500CMHm 3 /h

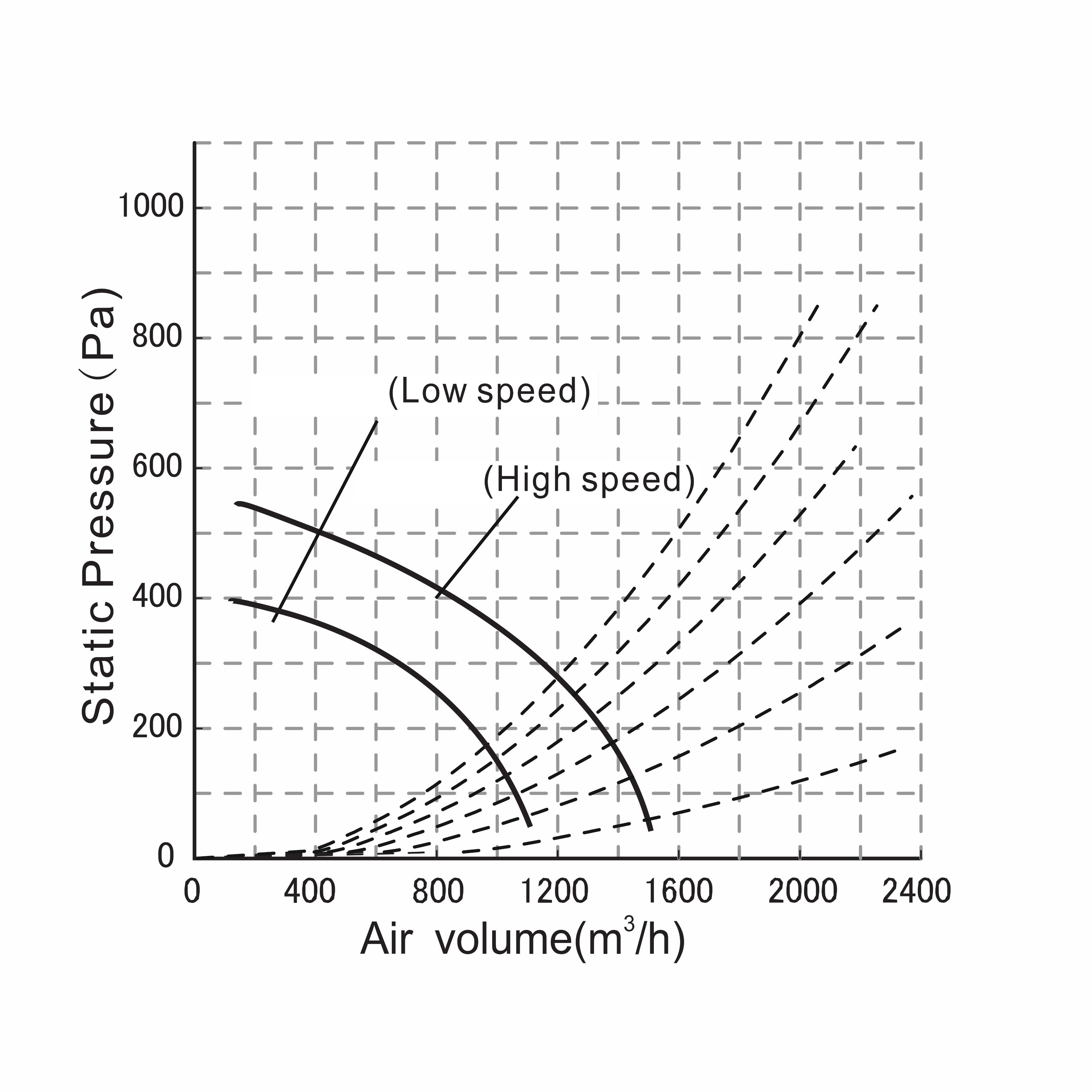

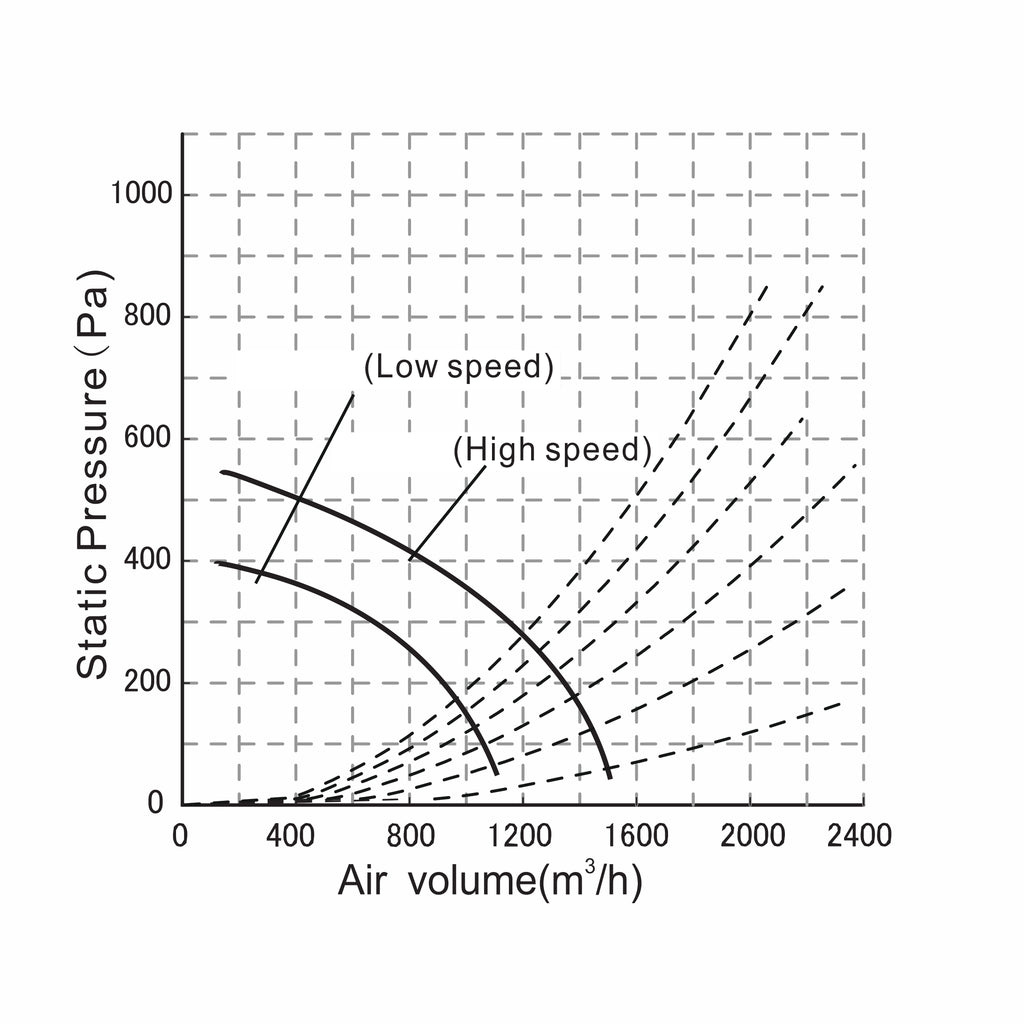

- Max. air pressure: 550Pa
- Power (W)- 170/130
- Ambient Temperature: -20︒C ~ 60︒C
- Net weight: 7kgs
- Noise Level: 66/61 dB(A)
- Voltage : 220V/ 50Hz
- Content: Full ABS Plastic (Light weighted & Sterling)
- Color: Black

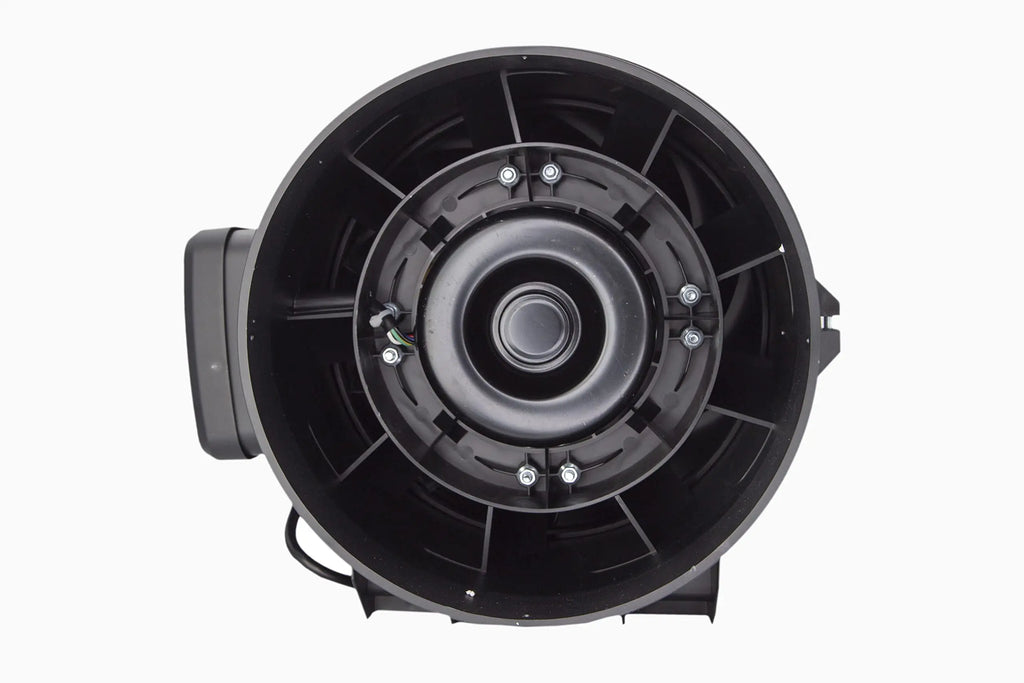

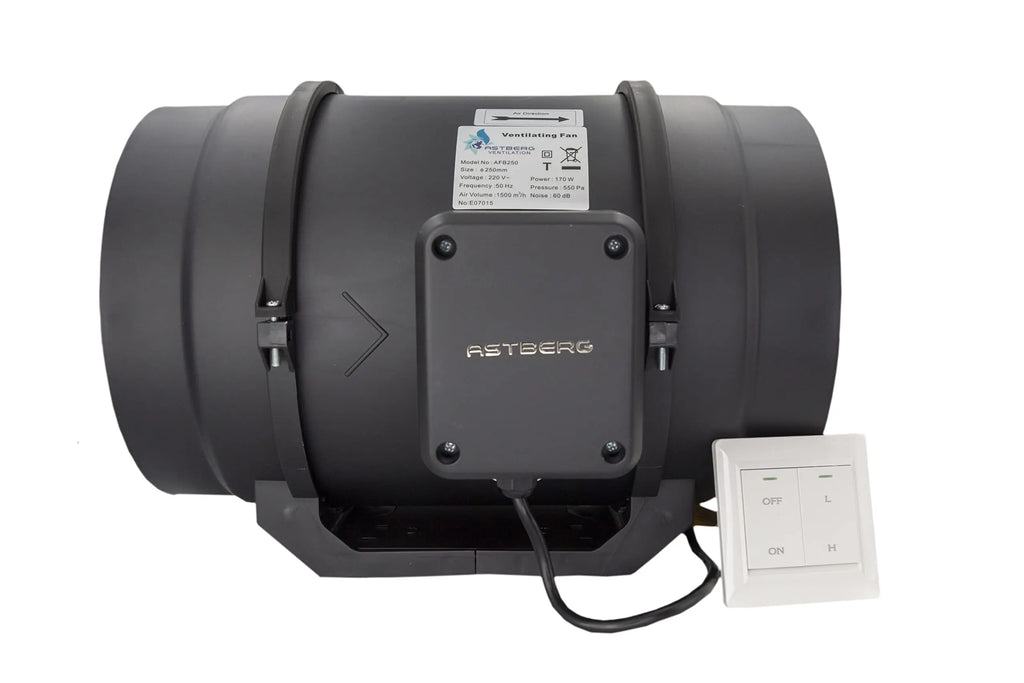

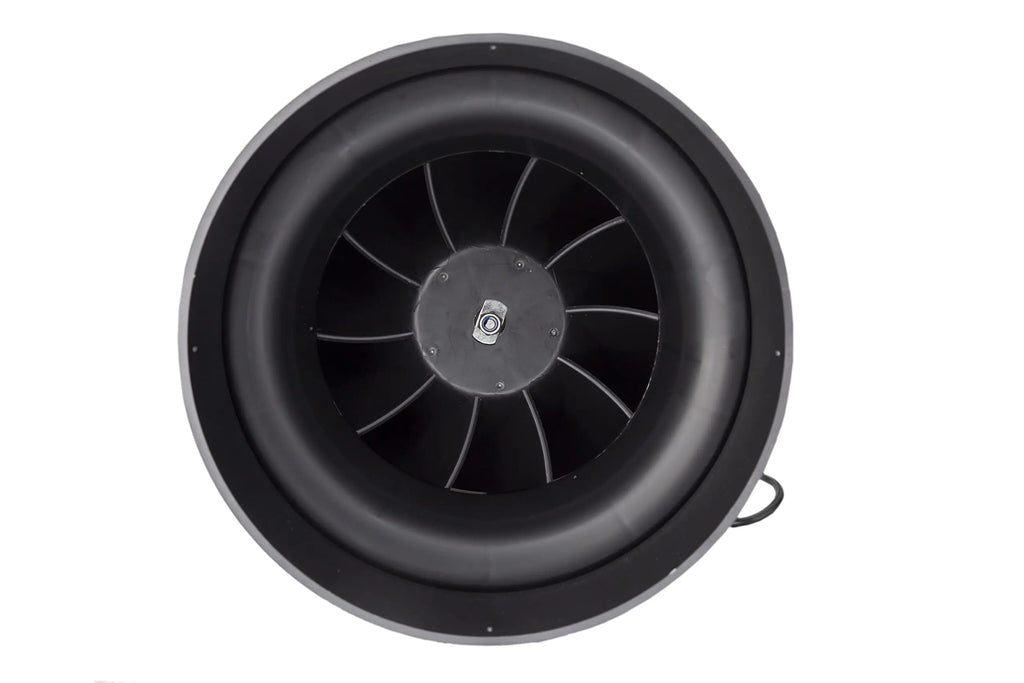

1.The casing adopts high-grade plastic material, with high efficient and mixed-flow ABS impeller. 2. Suitable for the places with the requirements of low noise and high static pressure in the ceiling duct. 3. Good heat dissipation performance aluminum cover combine with sealed ball bearing motor, long life with low energy consumption. 4. Equip with two speed control of high and low speed. 5. Equip the removable fastener between fan casting and outer/inlet, maintenance and cleaning are available. 6. Operating temperature range - 20?C ? 50?C 7. Insulation Class B 8. Enclosure Class IP44 9.Noise Level: 60dB(A) at high speed @3m; 54dB(A) at low speed @3m
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
