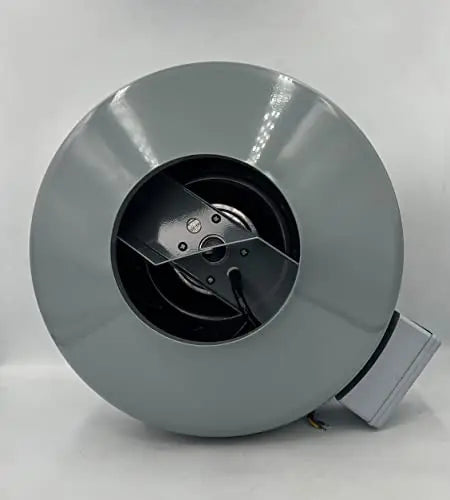

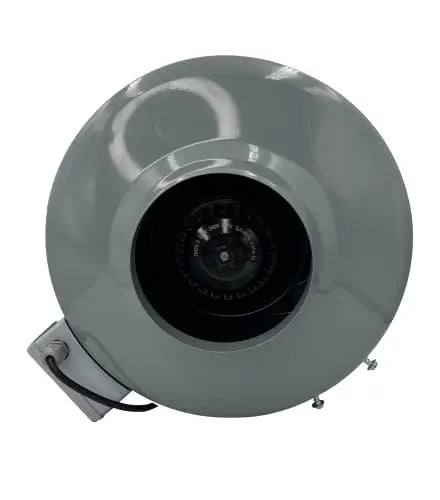

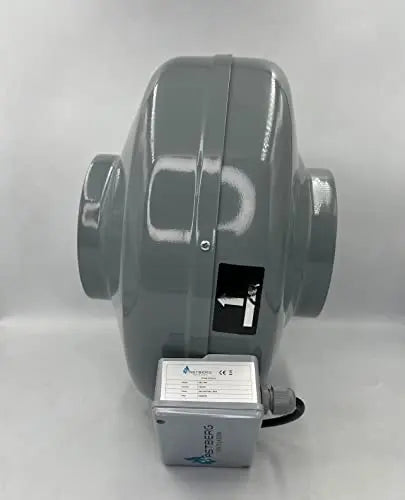

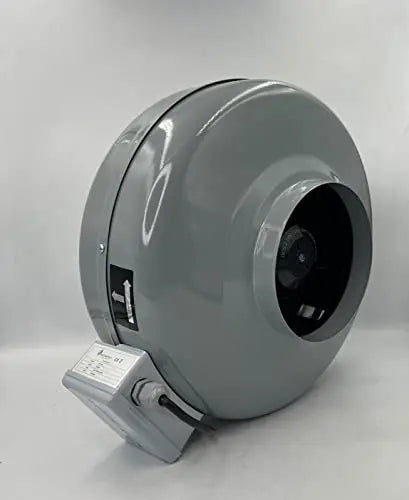

Astberg AEE150G Circular Inline Duct Fan (150mm / 6") 740 m³/h 435 CFM
Astberg AEE150G Circular Inline Duct Fan (150mm / 6") 740 m³/h 435 CFM
Product Specifications:
- Model: Astberg AEE-150G

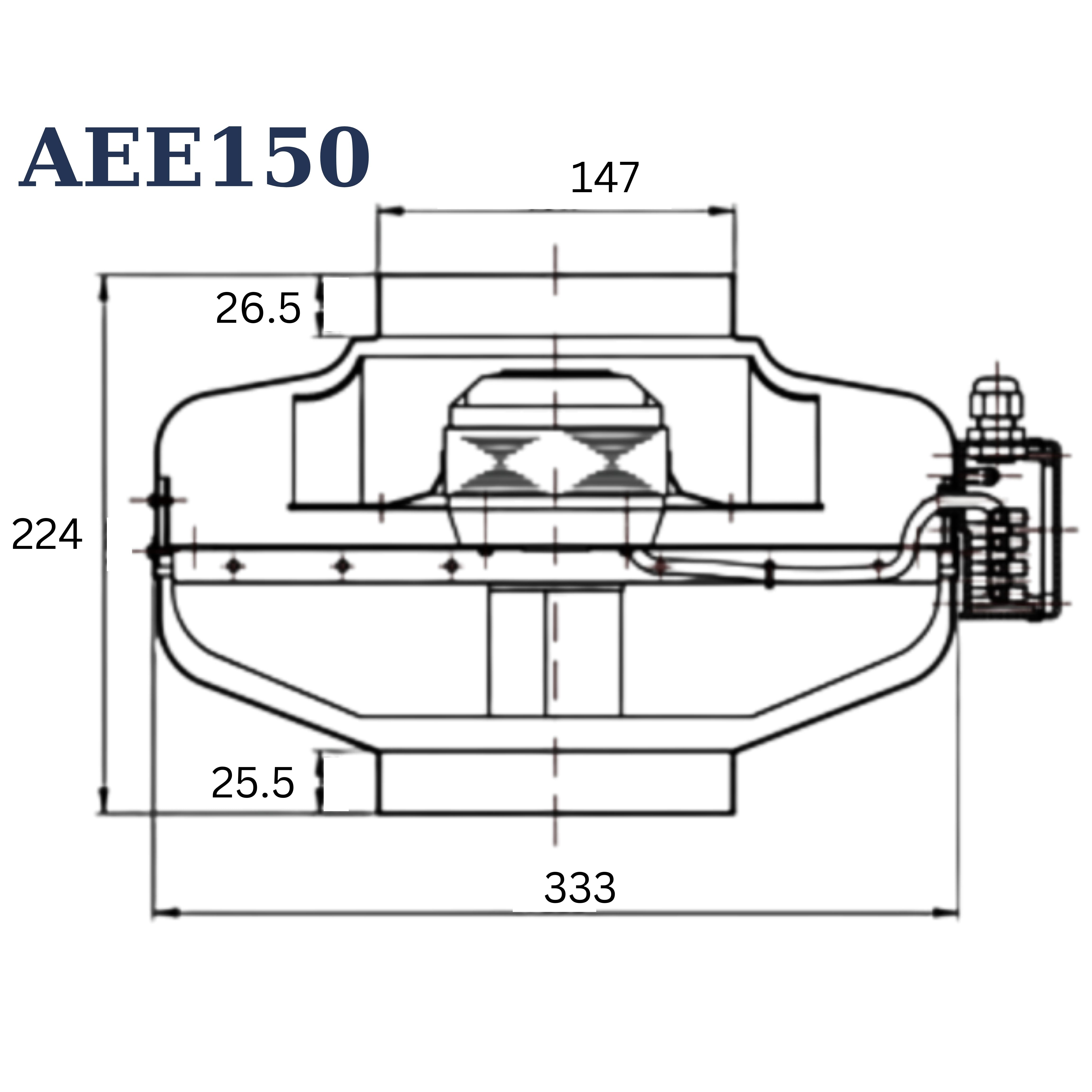

- Size of Duct: 150mm (6)
- Max. Airflow:740 m 3 /h

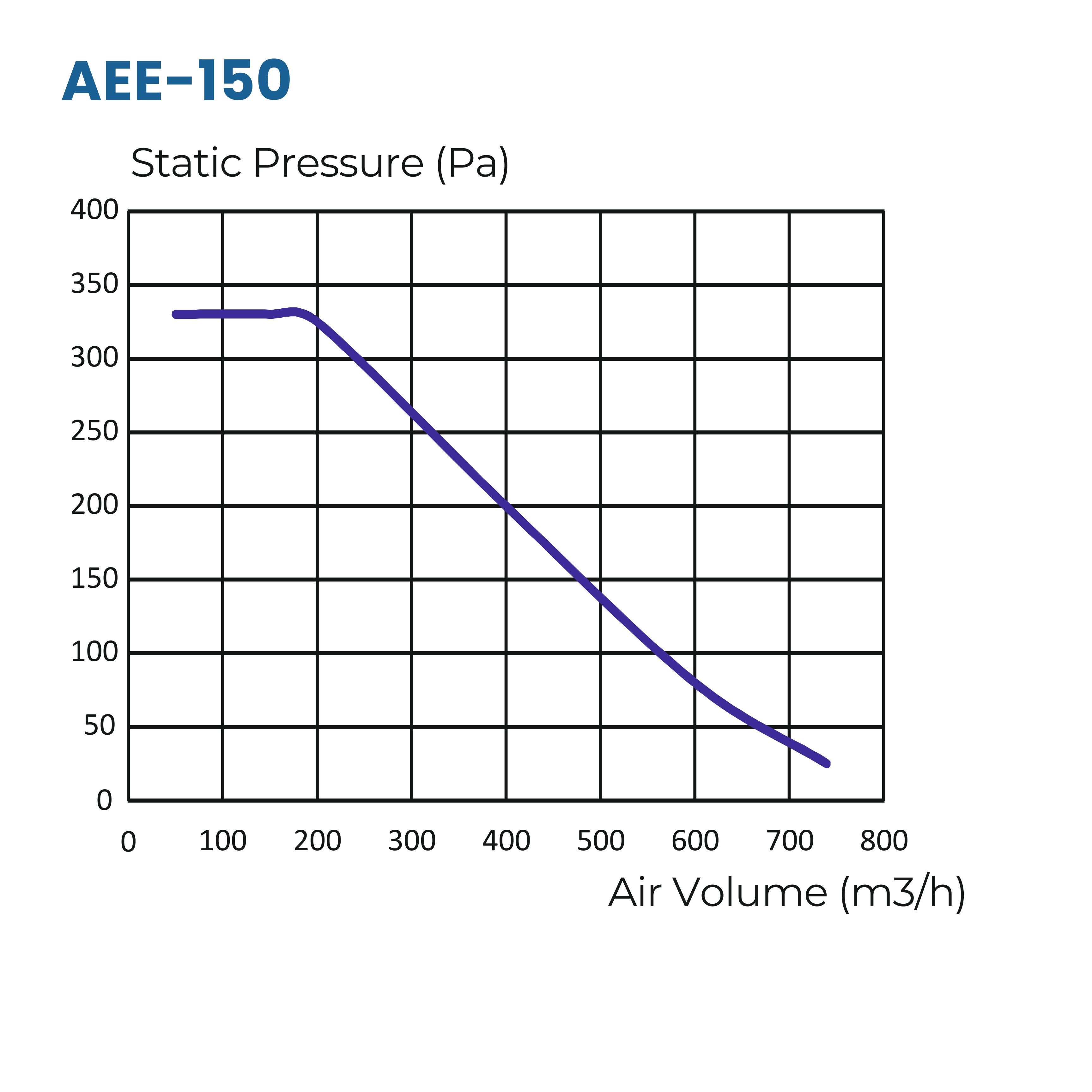

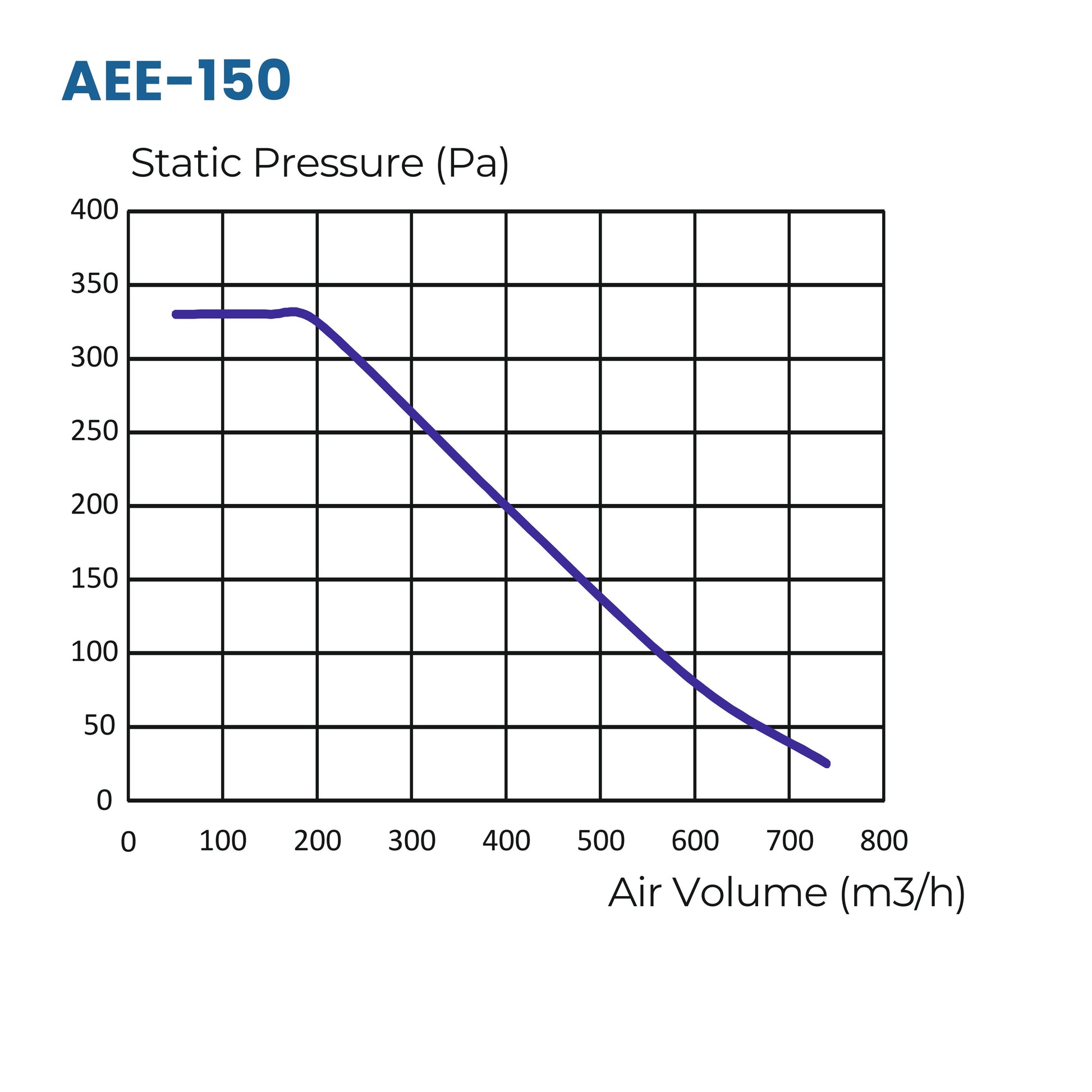

- Max. Pressure: 325 Pa
- Noise Level: 49dB(A)
- Voltage : 220V/ 50Hz
- Net Weight: 5.4 kg
- Color: metallic
- Body:- Metal
- Power:- 89W
- Speed: 2500 rpm
Superior Airflow This has 740 m3/h (435 CFM) of air flow with 325 Pa of static pressure, but it is adequate to serve large business and medium-to-large rooms.
The Quiet Operation: Heart has a low noise output of 49 dB in high airflow.
Construction: It is made of steel with an anti-corrosion coating on it that is even resistant when subjected to the environment.
Safe and efficient: IP44 repels dust and splash damage to further add to safety.
Balanced Performance: A balanced impeller will minimize vibration and maximize motor life.
Flexible Use: It can be used in restaurants, residential, and semi-commercial installations where low noise but high power airflow is need
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
