ASTBERG SILENT HEAVY DUTY MIXFLOW CIRCULAR INLINE DUCT VENTILATION FAN TYPHOON160 570CMH 150MM 6"
ASTBERG SILENT HEAVY DUTY MIXFLOW CIRCULAR INLINE DUCT VENTILATION FAN TYPHOON160 570CMH 150MM 6"

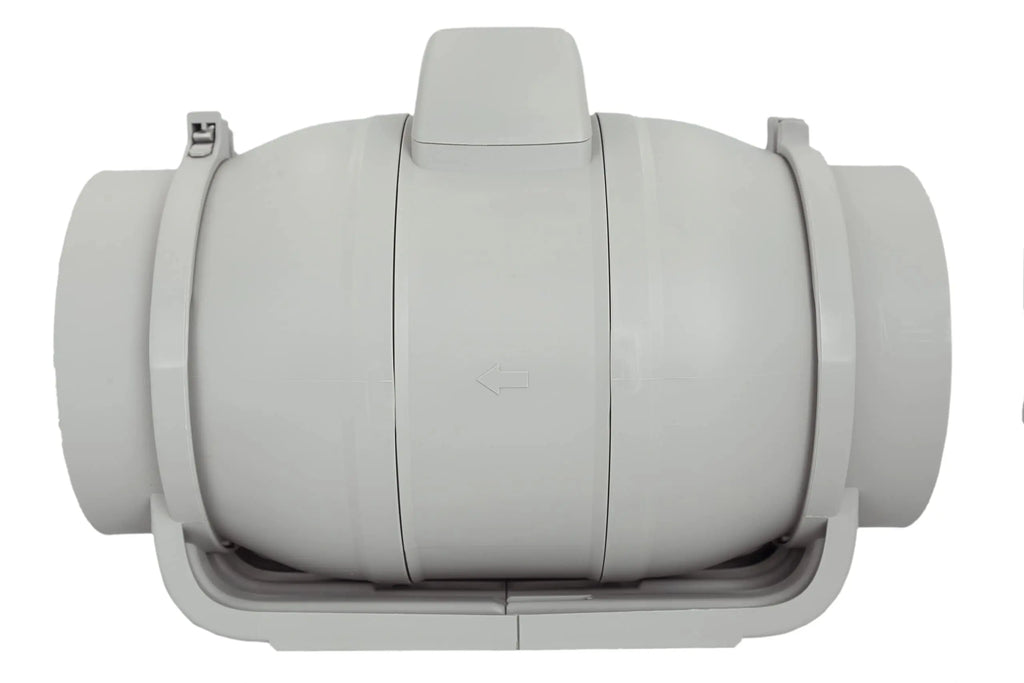

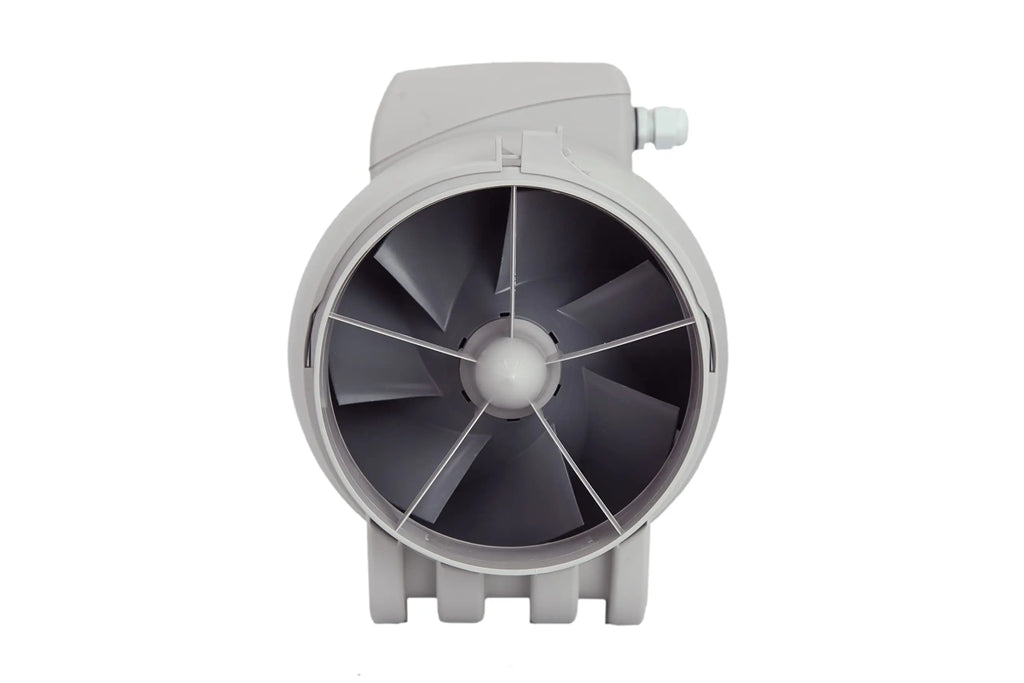

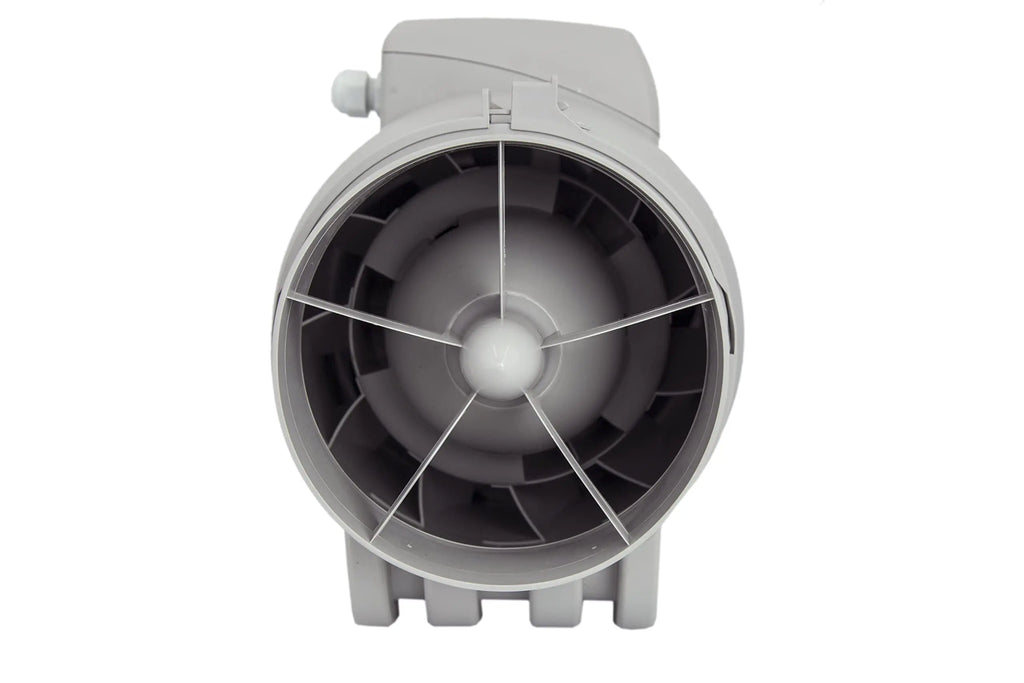

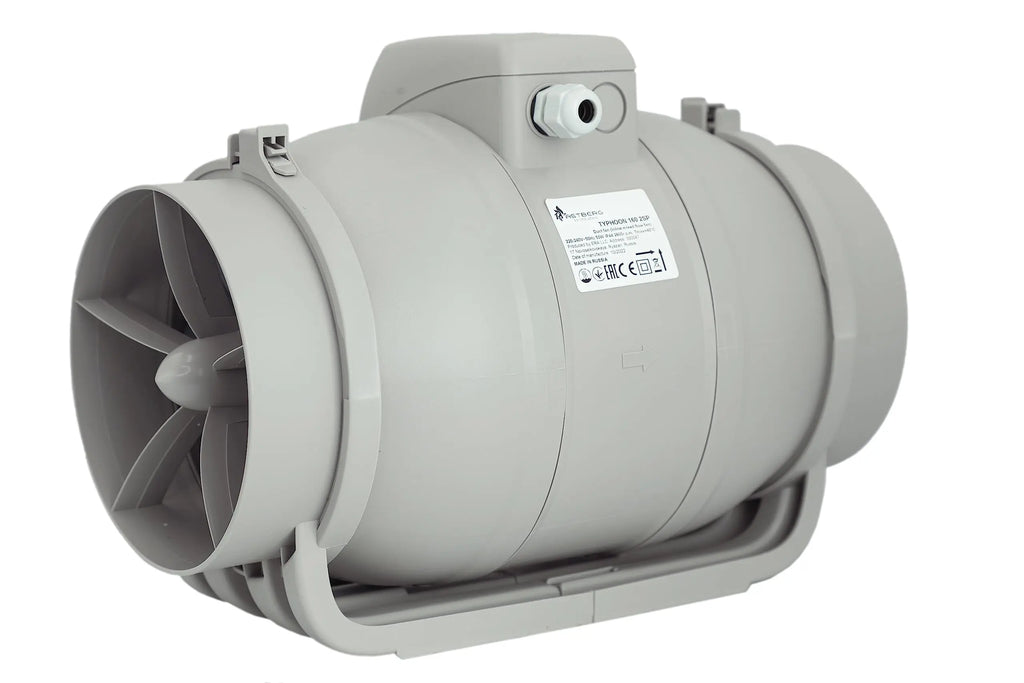

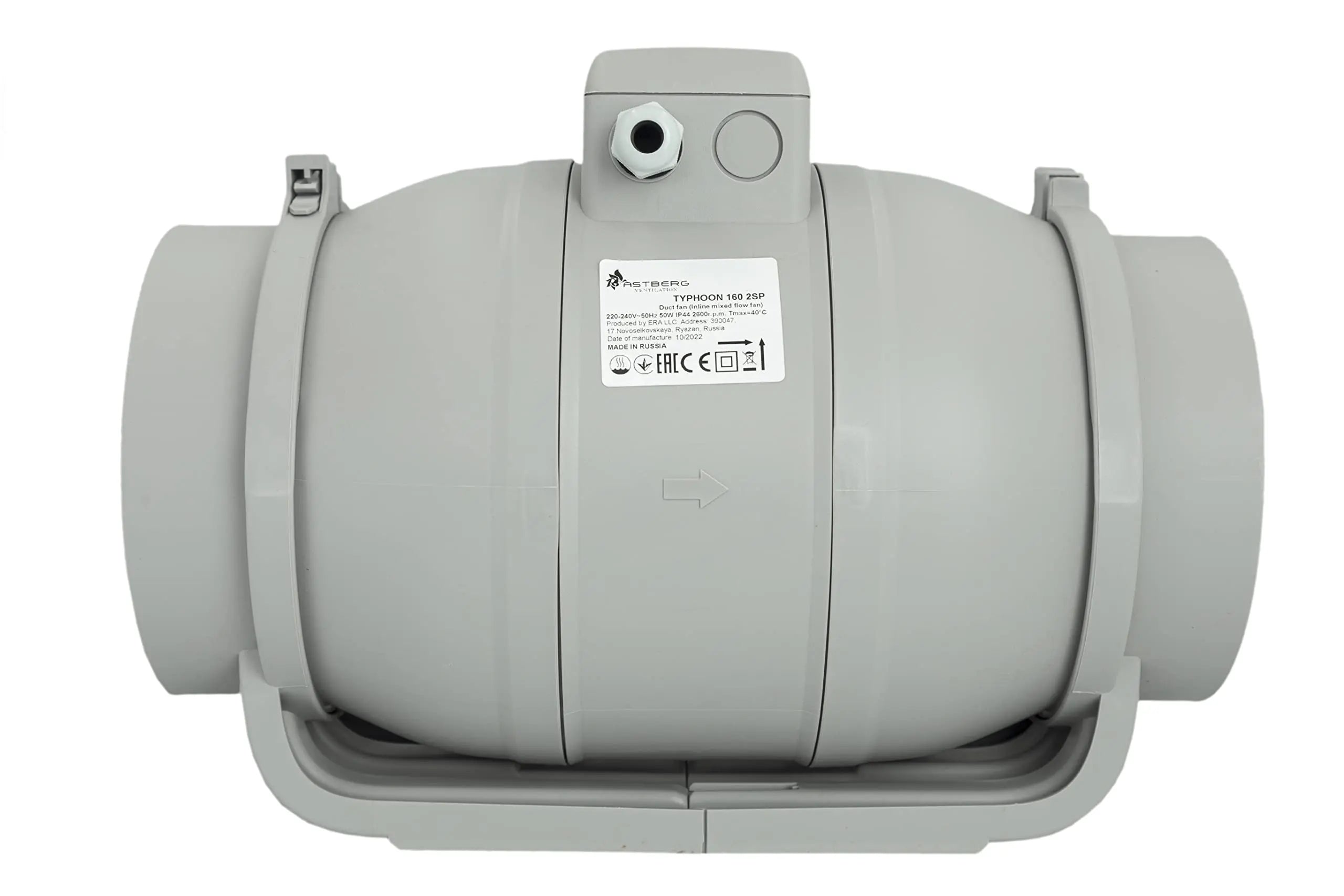

Astberg Inline Duct Fan (Typhoon 160)
Brand: Astberg
Color: White
Product Specifications:
- Model: TYPHOON100
- Size of Duct: 150MM / 6"

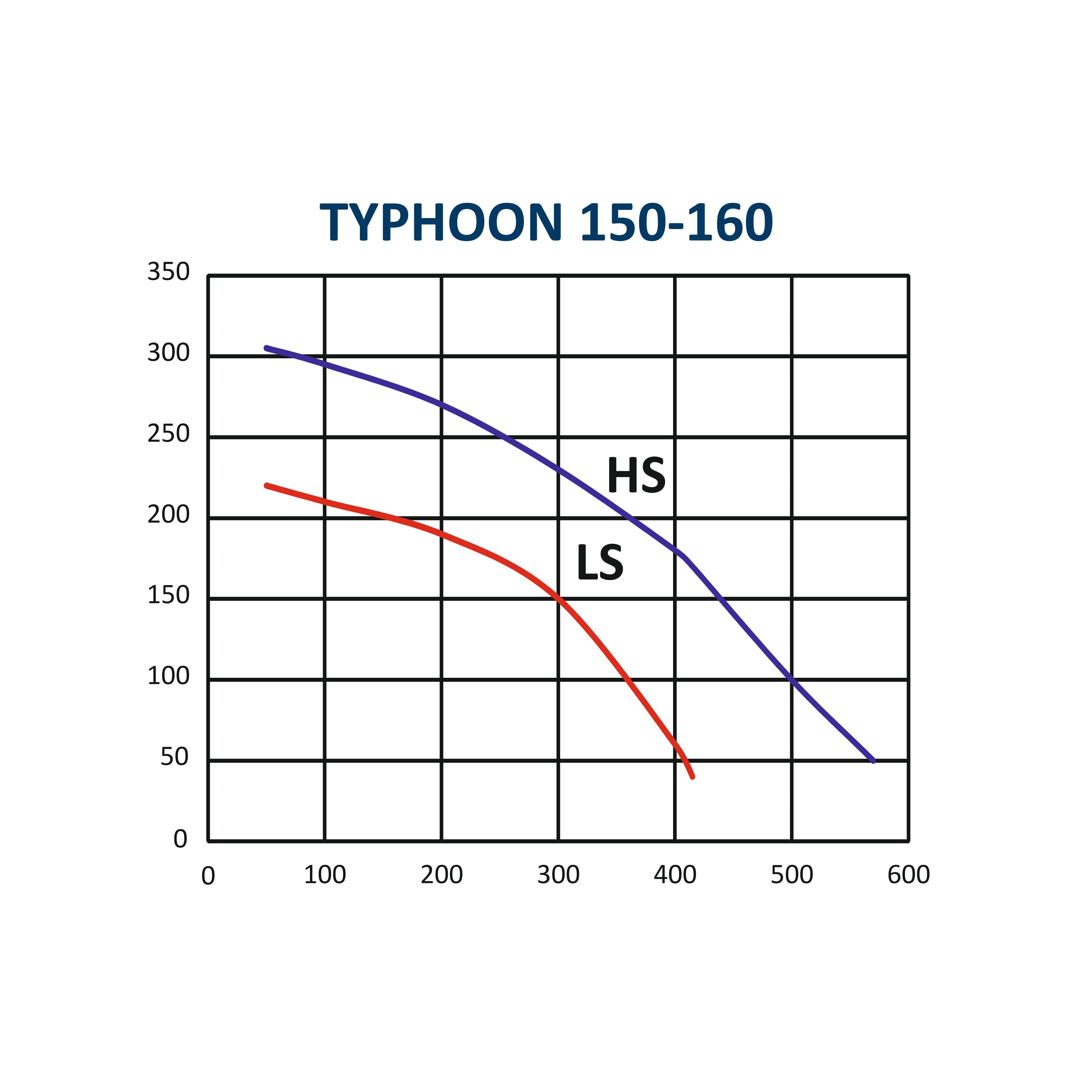

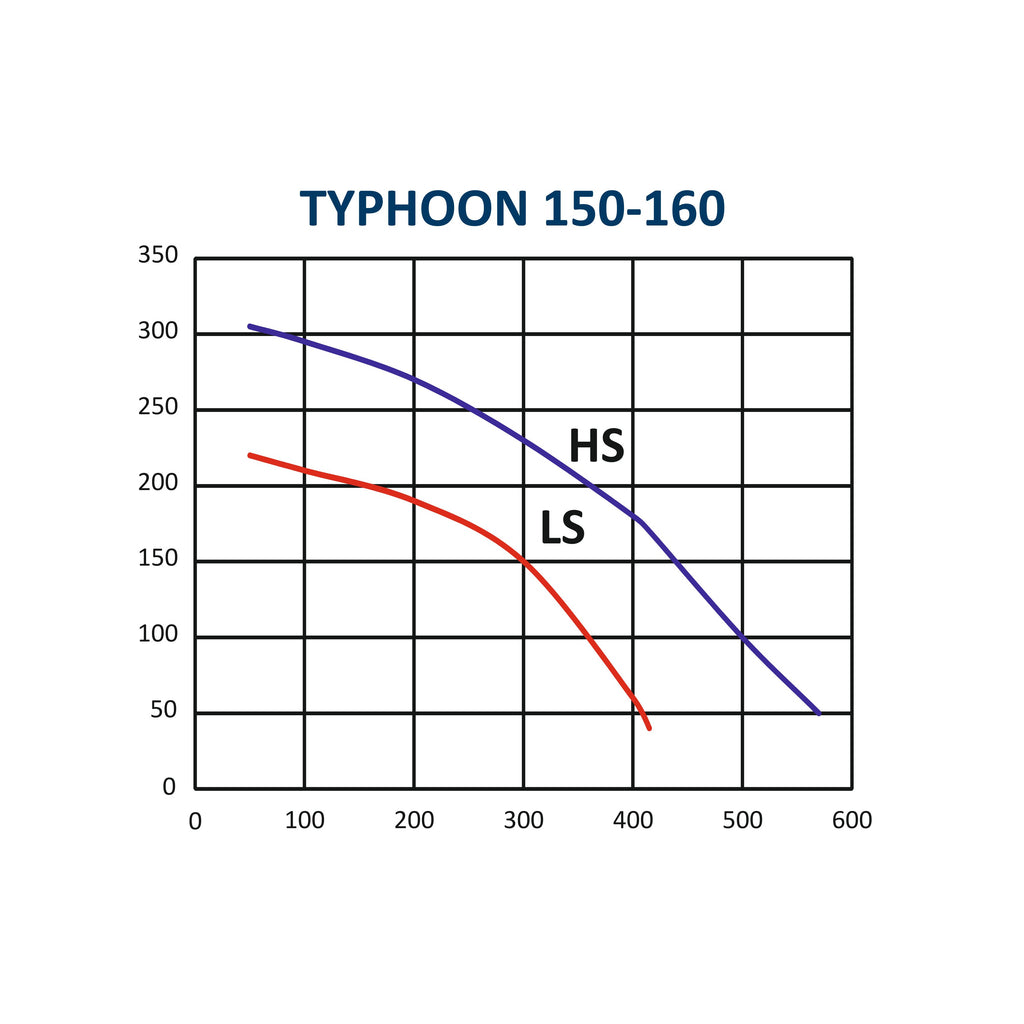

- Max. airflow: 570 m3/h
- Max. air pressure: 305Pa
- Noise Level: 49(dB)
- Voltage:220/50(V/Hz)
- Net Weight:3 kg
- Color: White
- Body:- ABS plastic body
- Power:- 50-42 W
Features:
- TYPHOON 160 axial inline mixed-flow fans are used in supply and exhaust ventilation systems were it is essential to support a large airflow and high pressure along with a low noise level.
- TYPHOON is a proper device for ventilation systems of such premises as kitchen, bathroom or other spaces with a high humidity level.
- Allowed to be installed both horizontally and vertically.
- TYPHOON fans are equipped with 2-speed, high efficiency motors with overheating protection and automatic reset. The speed is controlled with cable switching inside the terminal box
Model number: AF
Details: TYPHOON 160 axial inline mixed-flow fans are used in supply and exhaust ventilation systems were it is essential to support a large airflow and high pressure along with a low noise level. TYPHOON is a proper device for ventilation systems of such premises as kitchen, bathroom or other spaces with a high humidity level. It also perfectly suits for arranging ventilation in offices, cafés, apartments, and other residential buildings. Allowed to be installed both horizontally and vertically. TYPHOON fans are equipped with 2-speed, high efficiency motors with overheating protection and automatic reset. The speed is controlled with cable switching inside the terminal box.
Package Dimensions: 13.4 x 9.1 x 7.5 inches
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
