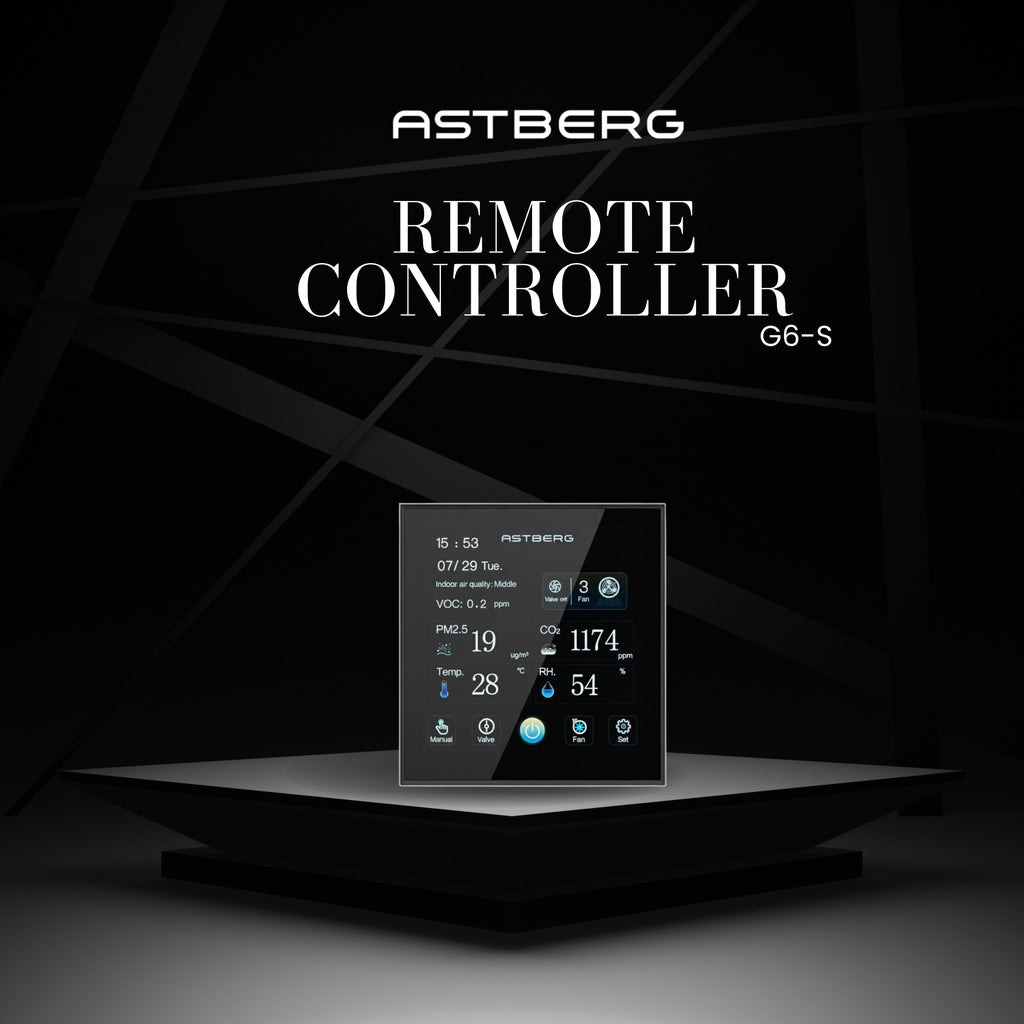

SMART CONTROLLER - G6-S FRESH AIR CONTROLLER
SMART CONTROLLER - G6-S FRESH AIR CONTROLLER
G6-S fresh air controller

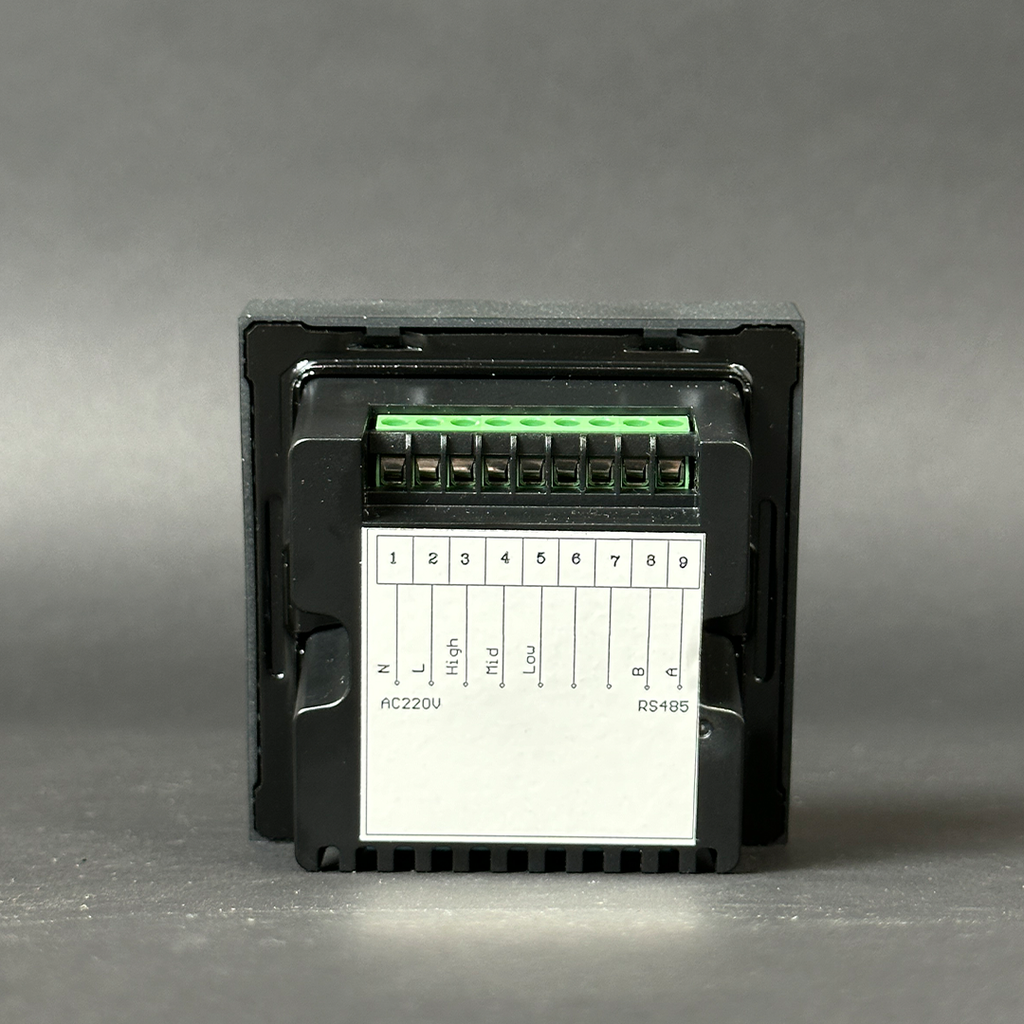

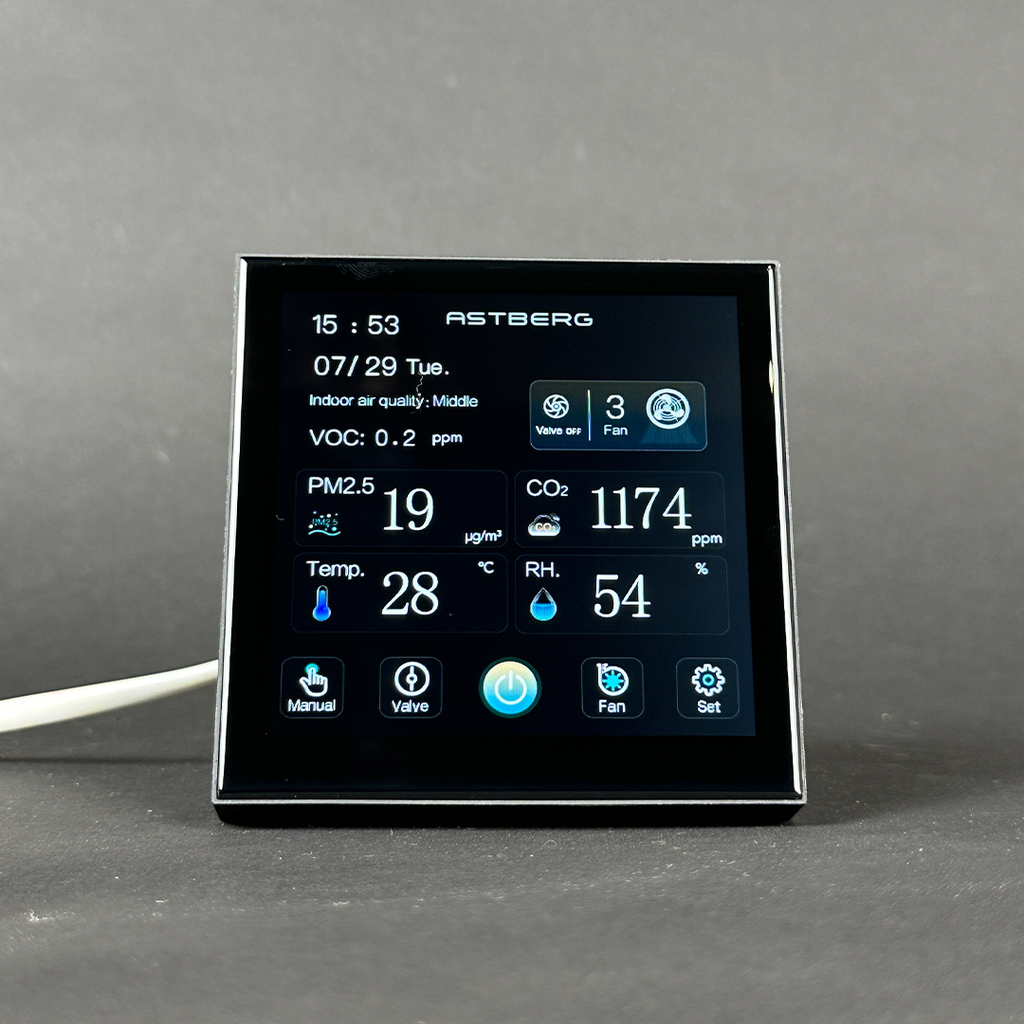

G6-S fresh air system intelligent controller can monitor indoor temperature and humidity, PM2.5, CO2 (optional), VOC (optional) and other data in real time; can be connected to WIFI (optional); with ModBus RTU (RS485) interface.
Users can connect to backends such as smart homes through the ModBus interface to monitor device status; the output signal of the AC 3-speed controller directly controls the start and speed of the fresh air fan.
It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality to create a healthy, comfortable, efficient, environment-friendly and energy-saving living and working environment.
Technical parameter:
1. Dimension: 86×86×40mm
2. Warm-up time: 2minutes
3. Rated voltage:AC110V--220V,50HZ
4. Output interface: AC3speed
5. Temperature displayrange: 0℃—99℃
6. CO2 display range: 350ppm – 2000ppm (optional)
7. PM2.5 display range: 1ug/m3——999ug/m3
8. Warm-up time: 2minuteS
9. Operation temperature:- 10℃---+50℃
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
