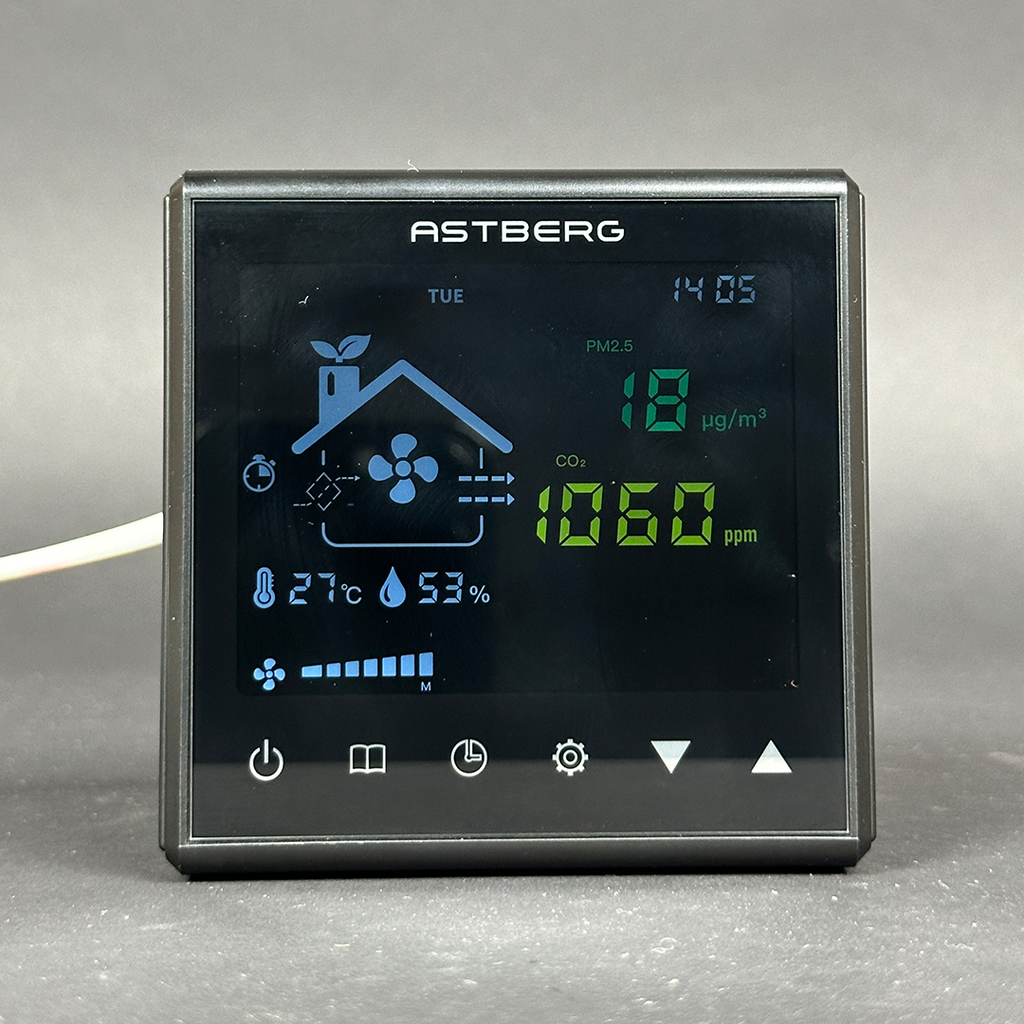

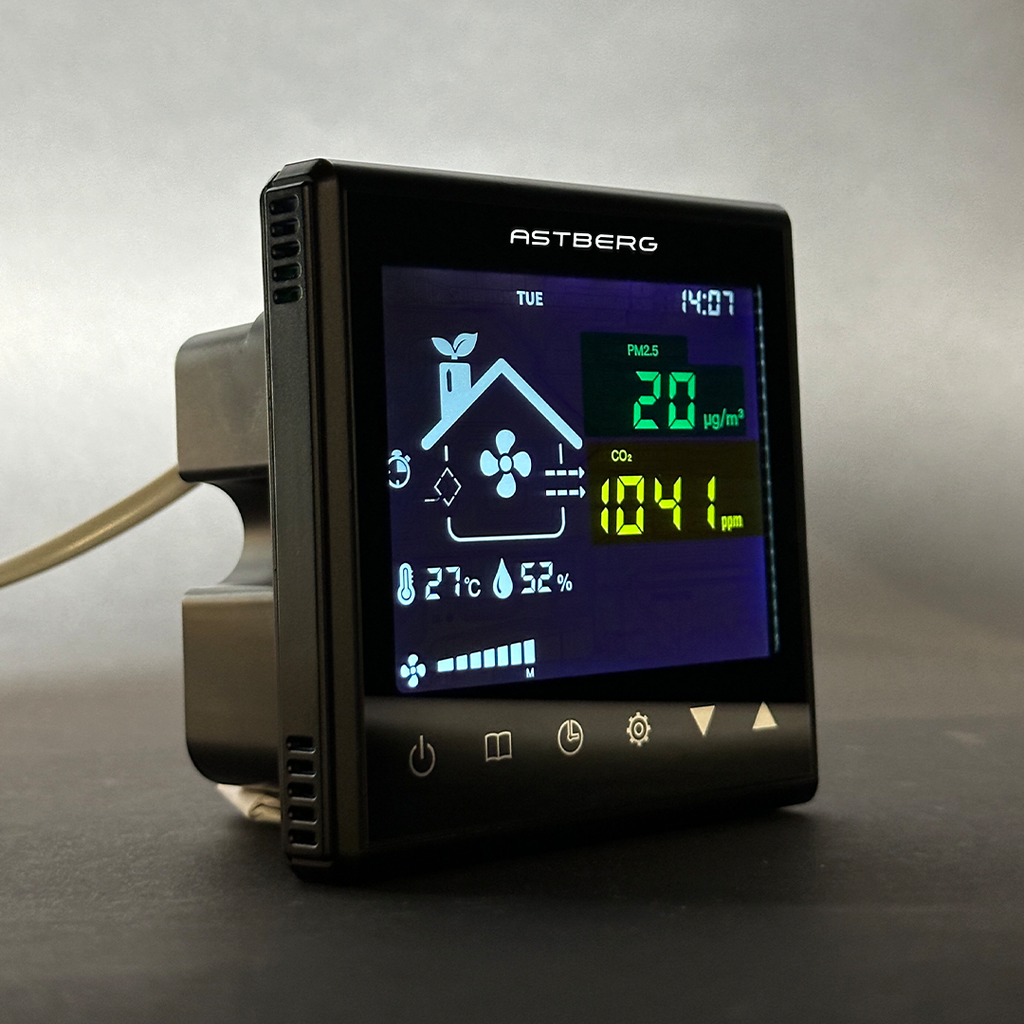

G5 (Wifi) FRESH AIR INTELLIGENT CONTROLLER
Fresh Air intelligent controller adopts touch key technology, which is flexible and convenient to operate. The built-in sensor of the controller can monitor the indoor temperature, humidity, and CO2 concentration in real time. The output signal of the controller directly controls the startup and speed of the new fan. It can be widely used in residential, commercial and industrial applications, and can effectively improve air quality, create a healthy, comfortable, energy-efficient living and working environment..
Technical parameter:
1.Dimension: 86×86mm
2 Warm-up time: 1 minute
3. Fixing hole distance: 60mm(standard)
4. Response time: ≤10 seconds
5. Wiring terminal: Max 2.5 mm wire
6. Recovery time: ≤30 seconds
7.Rated voltage: AC220V 50Hz
8.Operating temperature: -10°C ---+50°C
9. Standby Power: ≤2.0 W
10. Operating humidity: 5%RH-90%RH (Non condensation)
11. Control power: <200W
12. Storage temperature: -10°C - +60°C
13. Output interface: Three-speed ventilator
14. Storage humidity: ≤60%RH
15. Temperature display range: 0℃-50℃
16. Life: ≥10 years
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
