Astberg AF150 Silent Mixflow Circular Inline Duct Fan (150mm / 6”) 530 m³/h, 311 CFM
Astberg AF150 Silent Mixflow Circular Inline Duct Fan (150mm / 6”) 530 m³/h, 311 CFM

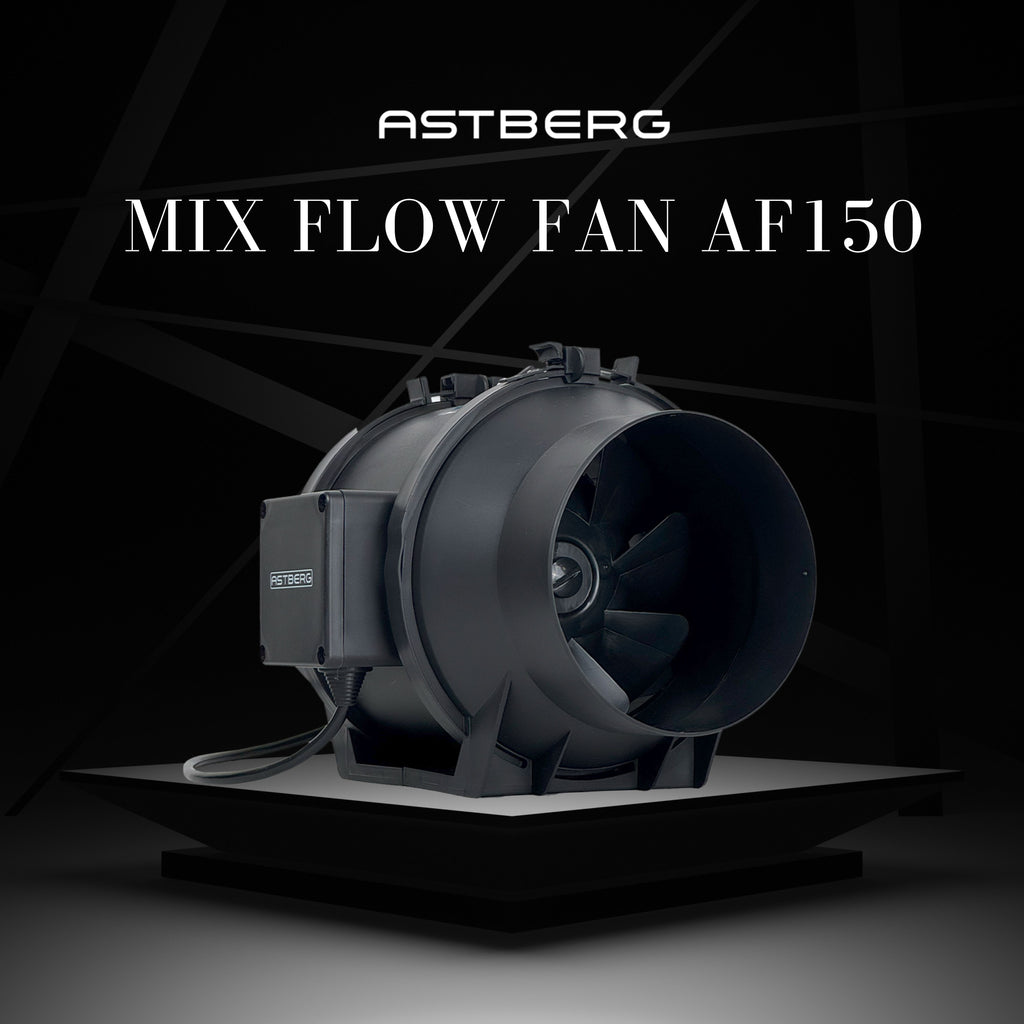

Product Overview: Astberg AF150 Luxe Silent Mixflow Inline Fan
The Astberg AF150 is a high-efficiency 150mm (6") duct ventilation system designed for both domestic and commercial properties. With a powerful 530 m³/h (311 CFM) airflow and ultra-quiet 33 dB(A) operation, it ensures optimal air circulation with minimal noise. Its durable, lightweight ABS body and compact design make it perfect for bathrooms, kitchens, conference rooms, and hydroponic setups.
Key Features & Benefits:
- Whisper-Quiet Operation: Operates at just 33 dB(A), making it ideal for quiet workspaces and residential areas.
- High Performance: Delivers an impressive 530 m³/h extraction rate to handle heavy air circulation demands.
- Durable Construction: Built from high-quality, double-insulated ABS plastic (IP44 rated) for protection against dust and splashes.
- Easy Installation & Maintenance: Features snap-joint fittings for quick setup. The central motor and impeller can be removed for servicing without dismantling the ductwork.
- Flexible Mounting: Can be attached at any angle along the duct line and connected in series for increased pressure.
Technical Specifications:
- Duct Size: 150mm (6")
- Max Airflow: 530 m³/h (311 CFM)

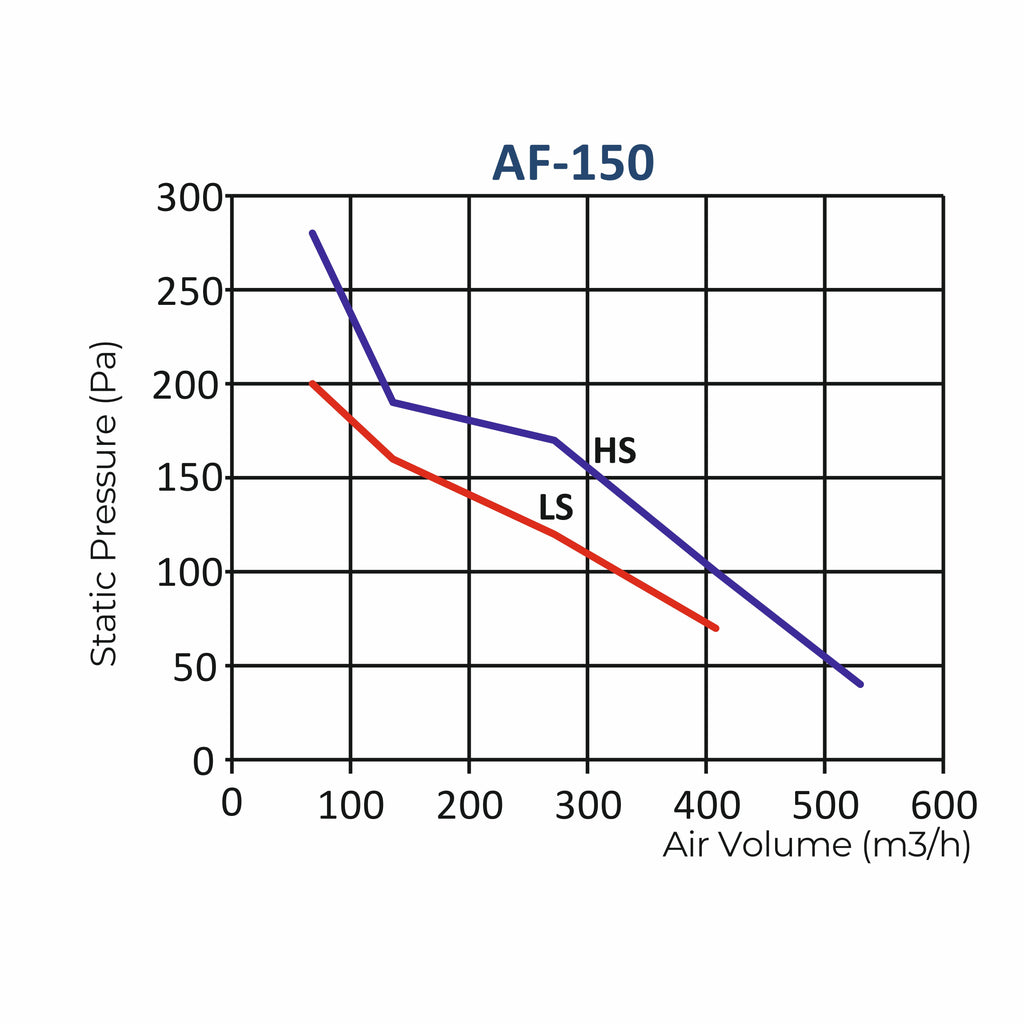

- Static Pressure: 300 Pa
- Noise Level: 33 dB(A)
- Voltage: 220V / 50Hz
- Net Weight: 2.6 kg
- Material: ABS Plastic (Black)
- Enclosure Rating: IP44 (Dust & Splash Proof)
Where to Use:
- Residential: Kitchens, bathrooms, and laundry rooms.
- Commercial: Offices, conference rooms, hotels, and retail spaces.
- Industrial/Specialty: Warehouses, HVAC systems, and hydroponic grow tents.
Frequently Asked Questions (FAQ):
Can this be used for both intake and exhaust?
Yes, the AF150 supports both hot air extraction and fresh air intake.
Is it energy efficient?
Yes, the mixflow impeller design maximizes airflow while maintaining low energy consumption.
Can I install it myself?
Yes, the snap-joint design ensures that installation and maintenance are fast and hassle-free.
Tagline: Astberg AF150 — The perfect blend of silence, power, and smart ventilation.
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
