FRESHAIR & EXHAUST SYSTEM WITHOUT HEAT RECOVERY FOR 2400-3000 SQ. FT. AREA
FRESHAIR & EXHAUST SYSTEM WITHOUT HEAT RECOVERY FOR 2400-3000 SQ. FT. AREA
ASTBERG'S SOLUTION FOR BALANCED VENTILATION FOR OFFICE, BASEMENT, RESIDENCIAL AND SEMI-COMMERCIAL AREAS WITH 1700-2400 SQ. FT. AREA IS CONSISTING OF:-
-(1) AFV 28 DP FOR FRESH AIR
-(1) AEE 315 FOR EXHAUST

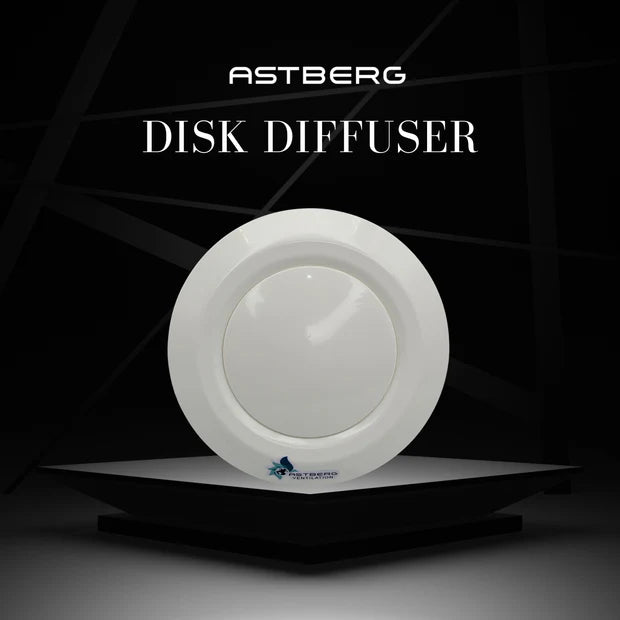

-(16) Diffusers (150MM/6")

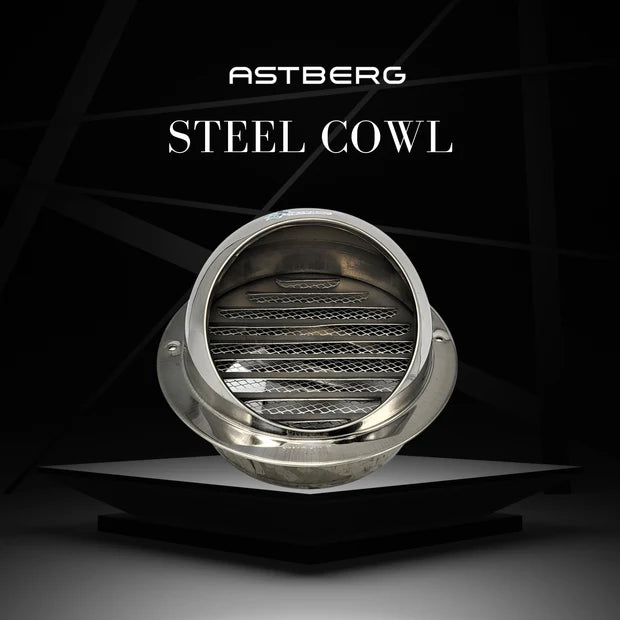

-(2) Cowl (200MM/8")

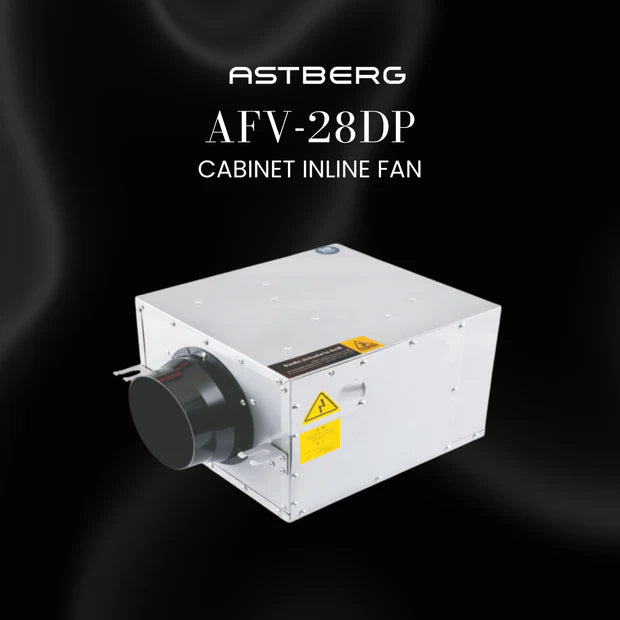

AFV-28DP Cabinet Silent Fan with Pre-Filter
Features:
- Power- (W) 290
- Air flow-1900(m³/h)
- Voltage-220/50
- Noise-44(dB)
- Tube Size- 250mm
- Static- (Pa) 160
- Tube size- Φ250 (mm)
- Machine size- 495*495*334 (mm)
- Diameter of vent- 240 mm

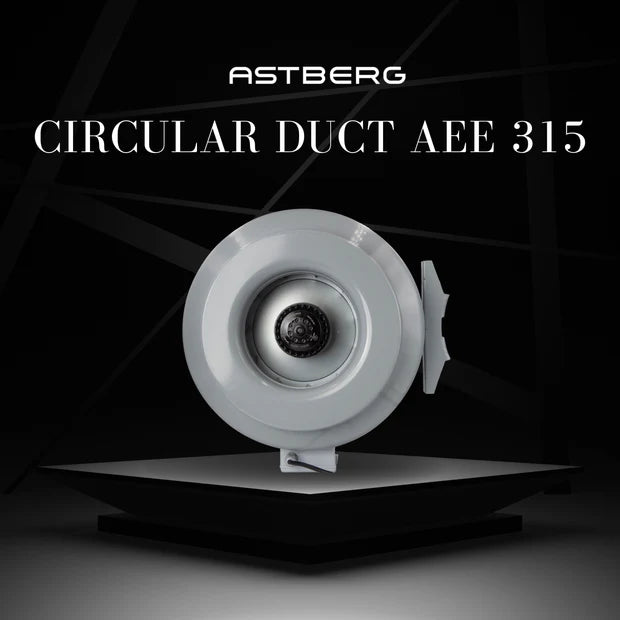

Astberg AEE 315 Fan
FEATURES:-
- Air Pressure-650(pa)
- Power-223(W)
- Air Flow-1600(m³/h)
- Fan Size 315mm (12 inch )
- Noise-75(dB)
