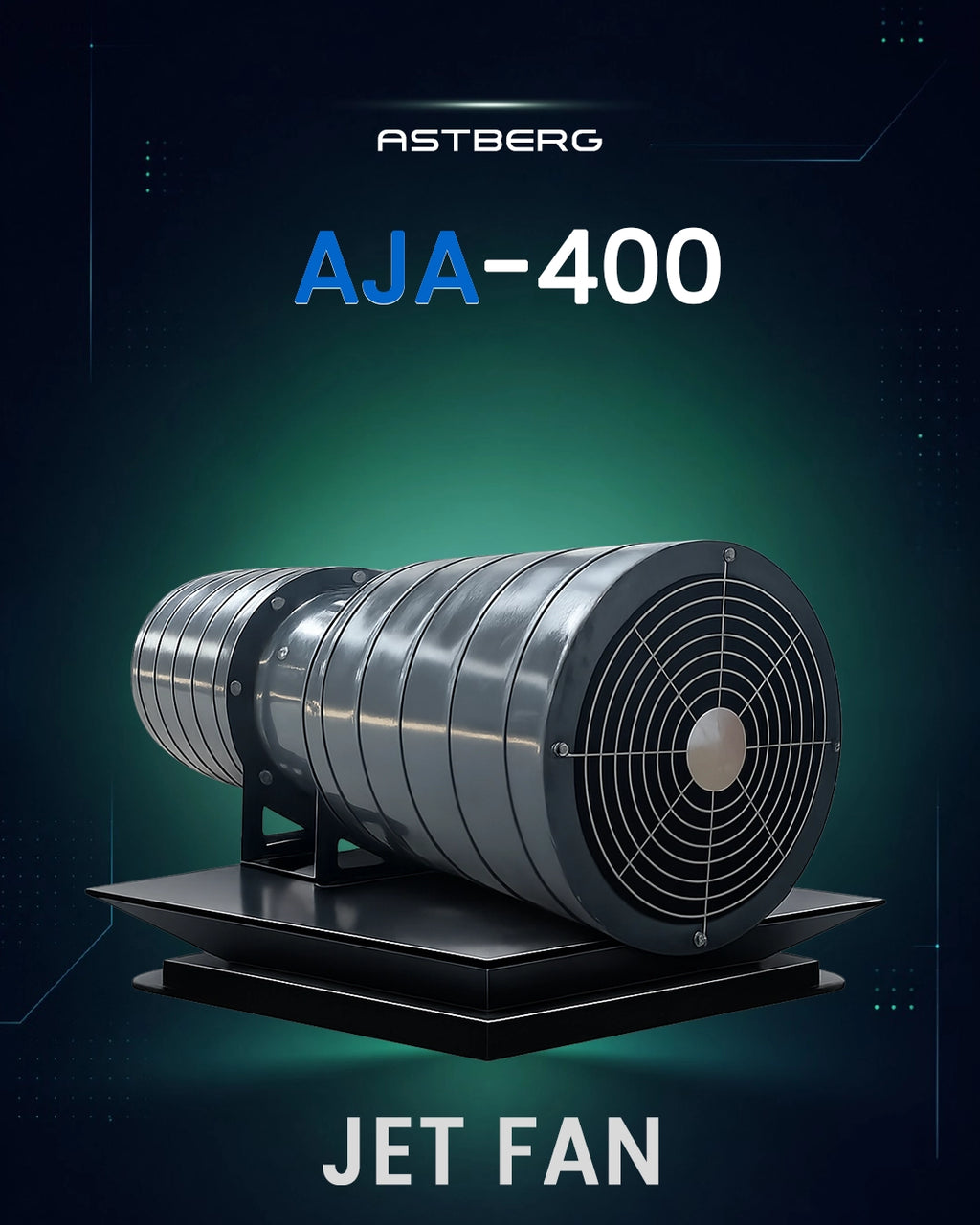

COMMERCIAL JET FAN- AJA400 (9000 CMH)
COMMERCIAL JET FAN- AJA400 (9000 CMH)
Technical Specification for Fan Model:- AJA 400
1.CMH :- 6500
2. Velocity (M/s):- 20
3. Thrust Force (N):- 60
4. Fan Input Power (KW):- 2
5. Installed Power (KW):- 2.2
6. Voltage/Phase:- 400/3
7.Fan RPM:- 2850/1450
8. Pole:- 2P/4P
9.DB (A) at 3m:- 61/46
FEATURES:-
1.Cost-effective and energy-efficient vs. ducted systems
2.Compact design optimizes space
3.Low noise due to silencers
4.Low maintenance and labor costs
5.Minimal pressure drop, reducing power requirement
Construction Highlights:-
1 .Casing:- Made from high-quality sheet steel with a powder-coated or painted finish for
enhanced durability and corrosion resistance.
2.Impeller: Constructed from precision-balanced aluminium, ensuring long-term
reliability and efficient airflow.
3.Mounting Brackets: Supplied with dual brackets for fast and secure installation.
4. Silencers: Each unit includes 2D silencers made of galvanized sheet steel (GSS) on
both inlet and outlet sides as standard, significantly reducing noise levels.
5. Inlet Guards: Safety guards are pre-installed on both sides for added protection.
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
