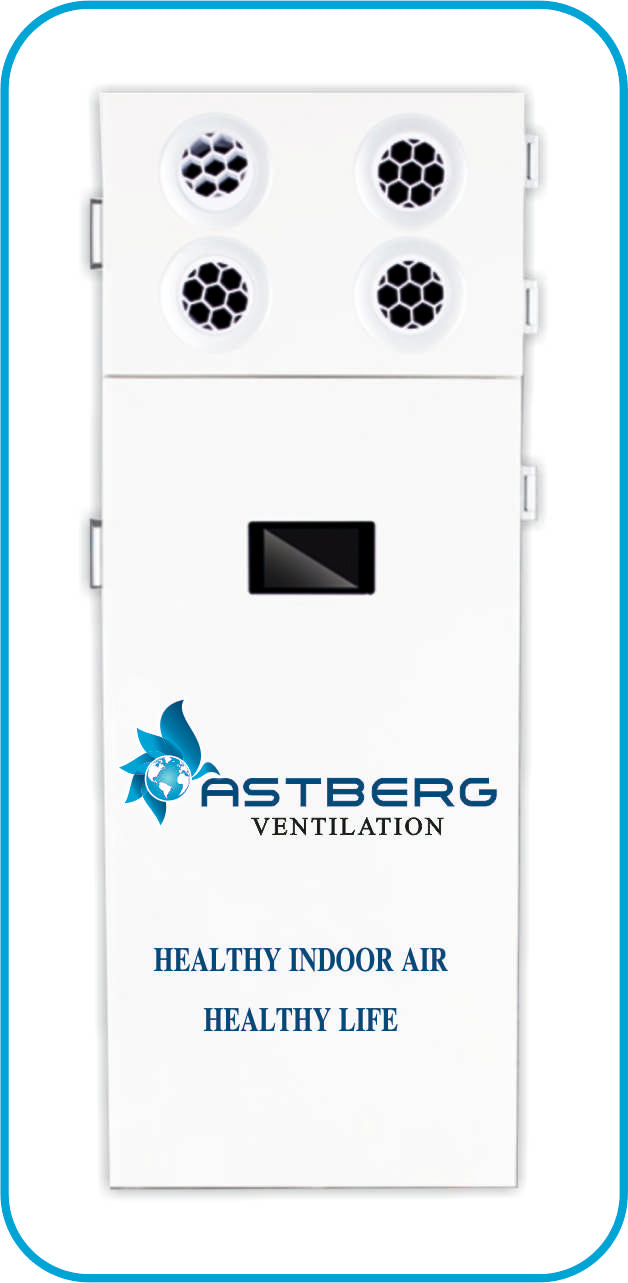

ASTBERG'S CABINET TYPE PURIFICATION ENERGY RECOVERY VENTILATION-STANDING ERV ASF50THP 500CMH
ASTBERG'S CABINET TYPE PURIFICATION ENERGY RECOVERY VENTILATION-STANDING ERV ASF50THP 500CMH
What is a Standing ERV, and how does it make the air in your home better?
A standing ERV is a ventilation unit that sits on the floor and constantly replaces stale indoor air with fresh, filtered outdoor air while also recovering thermal energy. If it's more important to you to have a lot of airflow and an easy installation than to keep the floor space completely clear, go with a standing ERV.
Floor-standing models, like the Astberg Standing ERV, don't need a lot of changes to the ceiling. They take dirty air from the room, run it through a high-tech heat exchanger, and then let it out outside. At the same time, the system uses the energy it collects to bring in fresh air, filter it, and condition it. This system keeps the air quality good by keeping CO2 levels low and getting rid of harmful particles.
Astberg Standing ERVs are high-capacity ventilation systems made for big indoor spaces that work best for heat recovery and air filtration. The Astberg ASF-50THP uses H13 HEPA filters to keep 85% of thermal energy and replace stale indoor air with fresh outdoor air, which improves Indoor Air Quality (IAQ).
Indoor air quality (IAQ) has a direct effect on people's health, comfort, and productivity. Bad ventilation keeps pollutants, allergens, and too much moisture inside buildings, which can be bad for your health. Old-fashioned exhaust fans get rid of stale air, but they also waste a lot of money on heating and cooling.
Facility managers and homeowners use Energy Recovery Ventilator (ERV) systems to fix this problem with energy loss. ERVs move air from inside to outside and back again, moving both sensible heat (temperature) and latent heat (moisture) between the two streams of air. This
Astberg Standing ERVs are high-capacity ventilation systems made for big indoor spaces that work best for heat recovery and air filtration. The Astberg ASF-50THP uses H13 HEPA filters to keep 85% of thermal energy and replace stale indoor air with fresh outdoor air, which improves Indoor Air Quality (IAQ).
Indoor air quality (IAQ) has a direct effect on people's health, comfort, and productivity. Bad ventilation keeps pollutants, allergens, and too much moisture inside buildings, which can be bad for your health. Old-fashioned exhaust fans get rid of stale air, but they also waste a lot of money on heating and cooling.
What are the Astberg ASF-50THP's technical details?
The Astberg ASF-50THP Standing ERV works well, uses little power, and makes little noise. Here is a structured list of the unit's main performance parameters.
| Specification | Details |
| Model Unit | ASF-50THP |
| Voltage (V/Hz) | 220V / 50Hz |
| Airflow (m³/h) | 500 |
| Static Pressure (Pa) | 260 |
| Purification Efficiency (%) | 99% |
| Rated Power (W) | 93W |
| Noise Level (dB) | 20 – 35 dB |
| Heat Recovery (%) | 85% |
| Dimensions (mm) | 1765 x 480 x 405 |
FEATURES:-
Smart Connectivity & Monitoring:-
- WiFi-Enabled App Control: Offers remote cloud-based control and real-time indoor air quality data.
- VOC & PM2.5 Detection: Continuously monitors and displays indoor air quality levels.
Air Supply & Flow Dynamics:
- Constant Air Supply: Utilizes fluid dynamics to maintain constant pressure and oxygen levels.Air Supply Modes: Offers three air supply methods, including direct, top, and ground supply for versatile setup options.
Specifications

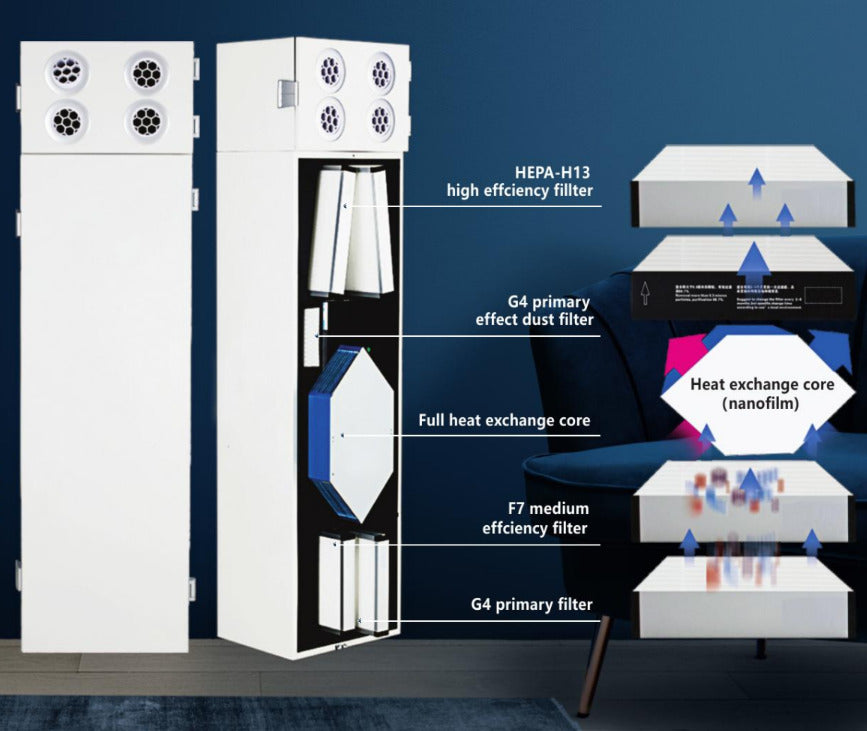

Advanced Filtration System:
- HEPA H13 Filter: High-efficiency filter captures 99.99% of airborne particles.
- G4 Primary Dust Filter: Provides initial filtration for dust and larger particles.
- F7 Medium Efficiency Filter: Further refines air quality by removing finer particulates.
- Stainless Steel Wire Mesh: Durable and effective in double primary filtration.
- Double HEPA (H13) Filtration & Composite PC Filter: Ensures maximum purification.
Heat Exchange Core:
- Nanofilm Technology: Full heat exchange core with 80% efficiency, reducing energy loss.
Fan Motor:
- DC frequency conversion motor for consistent, efficient air circulation.
Quiet & Energy-Efficient Operation:
- Noise Level: Operates at an ultra-quiet 25dB, making it ideal for continuous use.Low Energy Consumption: Consumes just 0.7 kWh over 24 hours of operation.
What are the main advantages of the Astberg Standing ERV ASF-50THP?
The Astberg ASF-50THP Standing ERV cleans the air better than other models and saves a lot of energy in large spaces. This model has an impressive 500 CMH (Cubic Meters per Hour) airflow capacity, which makes it great for refreshing the air in large spaces.
The Astberg ASF-50THP is perfect for gyms, hospitals, and big conference rooms where floor-standing installation is better than ceiling mounting because it has a lot of space and is designed to stand on the floor. The H13 HEPA filter makes sure that the unit catches 99% of airborne particles, protecting people from dust, pollen, and germs that are in the air. Also, the 85% heat recovery rate means that the Astberg ASF-50THP cuts heating and cooling costs by a lot during very cold or very hot weather.
Astberg Standing ERVs are high-capacity ventilation systems made for big indoor spaces that work best for heat recovery and air filtration. The Astberg ASF-50THP uses H13 HEPA filters to keep 85% of thermal energy and replace stale indoor air with fresh outdoor air, which improves Indoor Air Quality (IAQ).
Indoor air quality (IAQ) has a direct effect on people's health, comfort, and productivity. Bad ventilation keeps pollutants, allergens, and too much moisture inside buildings, which can be bad for your health. Old-fashioned exhaust fans get rid of stale air, but they also waste a lot of money on heating and cooling.
How do smart connectivity and monitoring make the Astberg ASF-50THP better?
With smart connectivity, users can control and keep an eye on the Astberg ASF-50THP Standing ERV from a distance using a mobile app that works with WiFi. Facility managers can change the speed of the fans, set schedules for when they should run, and check the air quality inside the building all from their phones.
The Astberg ASF-50THP can check PM2.5 levels in real time. This sensor keeps an eye on the amount of fine particulate matter in the air all the time. The smart system automatically changes the intensity of its purification to quickly bring back safe breathing conditions if the levels of pollution inside rise.
Improve the air quality in your home with good ventilation.
You don't have to give up energy efficiency or put up with noisy machines to keep the air clean and healthy. The Astberg Standing ERV ASF-50THP uses smart technology, strong filters, and great heat recovery to solve difficult ventilation problems. Check the current indoor air quality metrics and think about installing a dedicated energy recovery system in your home or business today.
Frequently Asked Questions (FAQs)
-
What makes the Astberg ASF-50THP different from ceiling ERVs?
A: The ASF-50THP is a standing cabinet-type unit, making it ideal for spaces where ceiling ducting is difficult. It offers a sleek vertical design with advanced touch-screen and WiFi app controls. -
How effective is the filtration in this standing unit?
A: It features a medical-grade purification system with H13 HEPA and F7 filters, achieving 99.99% efficiency in removing PM2.5 particles and allergens. -
What are the pros and cons of a standing ERV compared to a wall-mounted one?
A standing ERV usually has a higher airflow capacity (like the 500 CMH of the Astberg ASF-50THP) and doesn't have the same structural problems as wall mounting. For big commercial spaces, go with a standing ERV. For single rooms or small apartments, go with a wall-mounted unit.
-
How much energy can a standing ERV system save in a business?
The Astberg ASF-50THP keeps up to 85% of the heat from air that has already been used. This high heat recovery efficiency makes central heating and cooling systems work less hard, which saves a lot of money on utilities over time.
-
Does the Astberg ASF-50THP make a lot of noise when it's working?
No, the Astberg ASF-50THP Standing ERV makes very little noise, between 20 and 35 decibels. This makes the Astberg ASF-50THP a great choice for places where noise is a problem, like hospital wards, private offices, and bedrooms.
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
