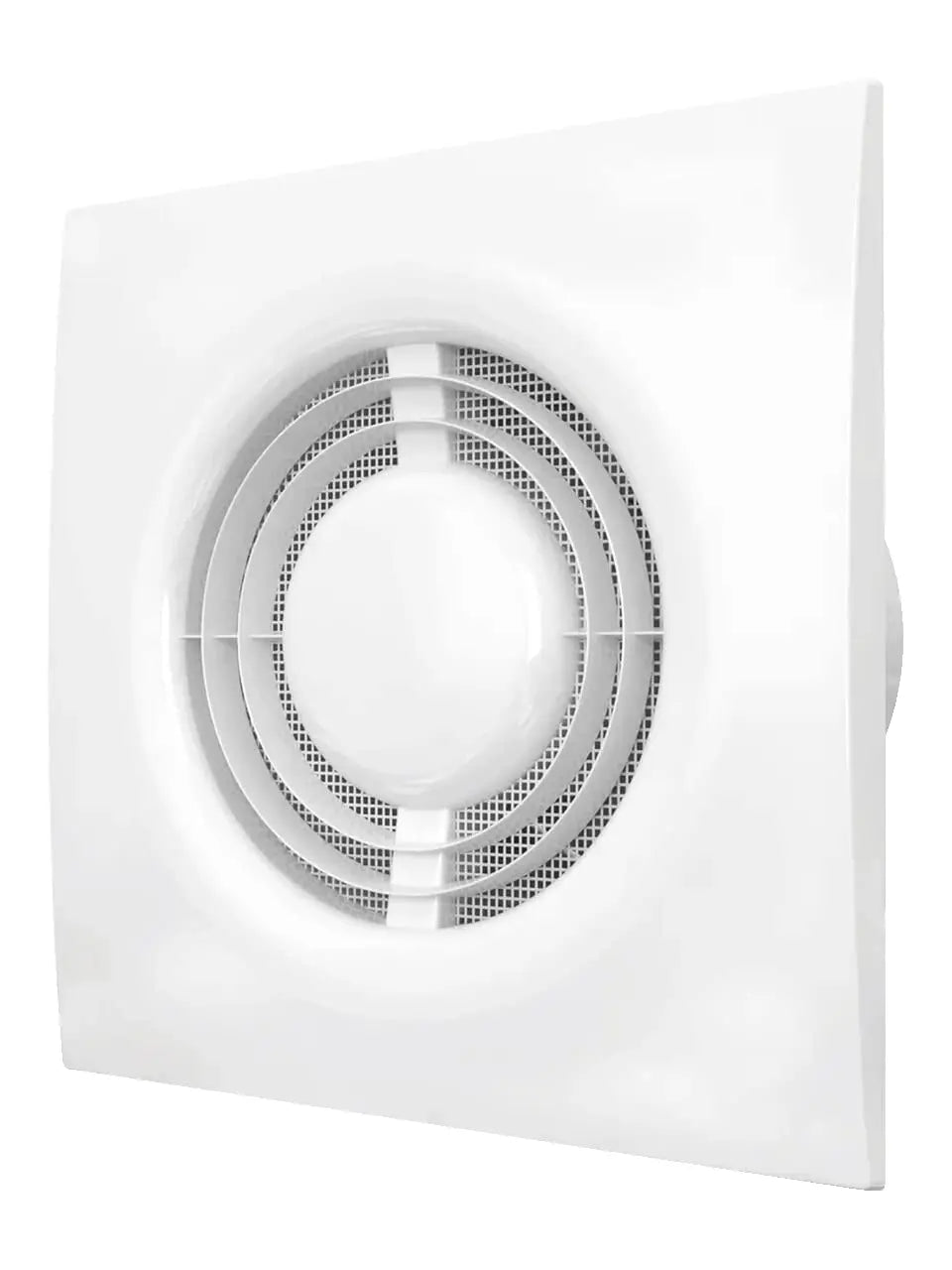

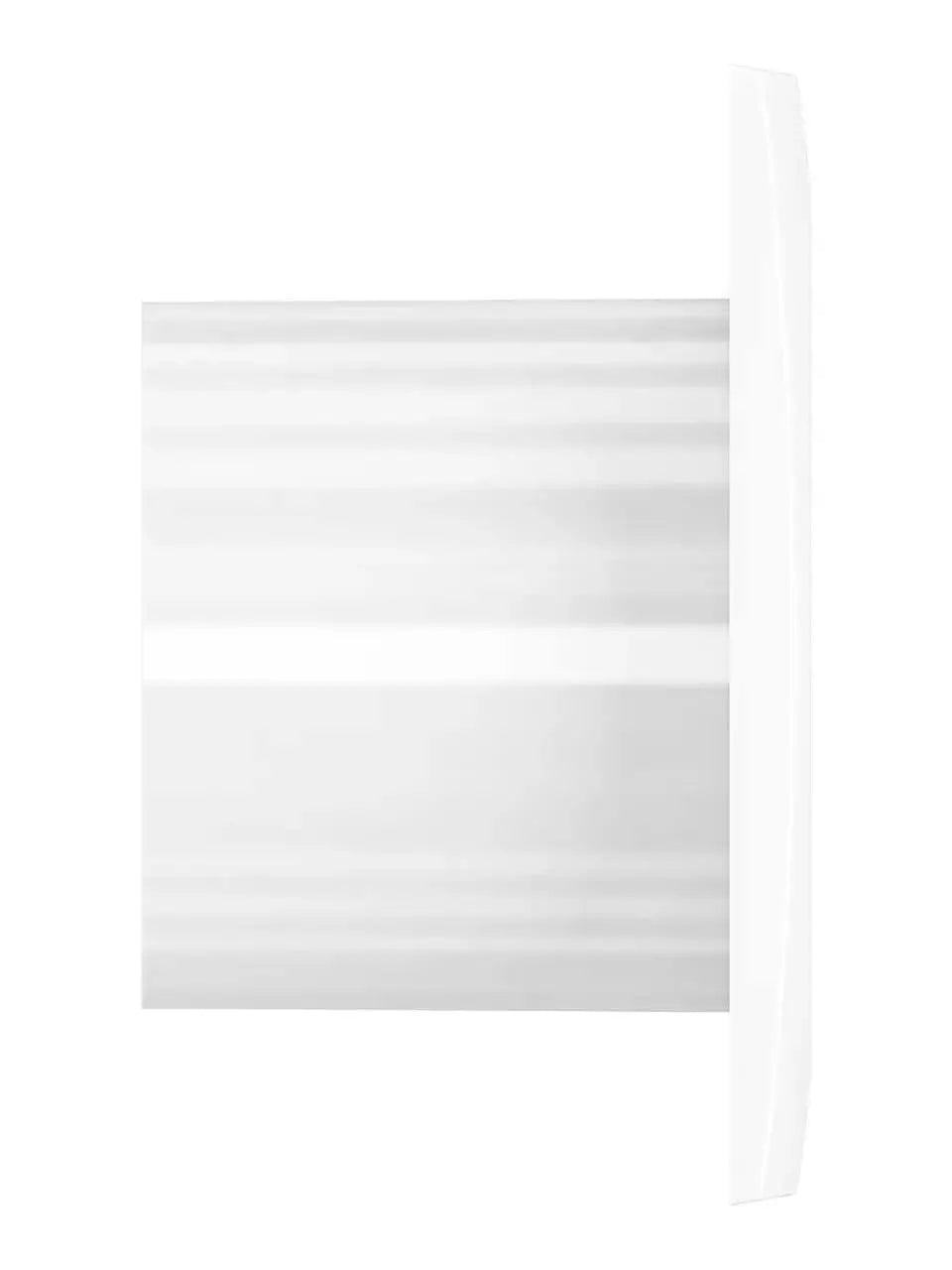

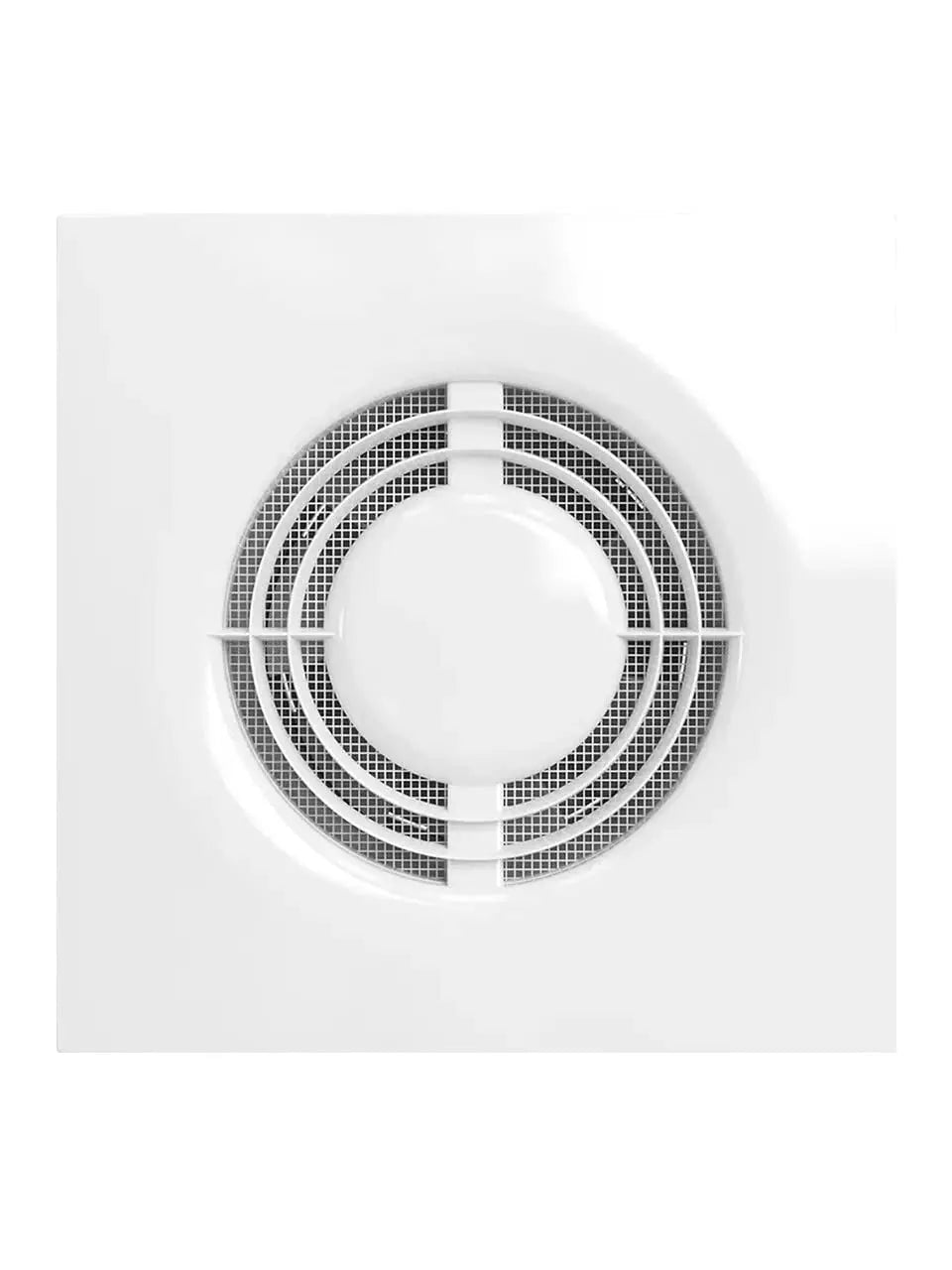

ASTBERG NEO6 PIPE/WALL/CEILING EXHAUST VENTILATION FAN 250CMH 6" 150MM
ASTBERG NEO6 PIPE/WALL/CEILING EXHAUST VENTILATION FAN 250CMH 6" 150MM
Brand: Astberg
Color: White
Product Specifications:
- Model: NEO 6

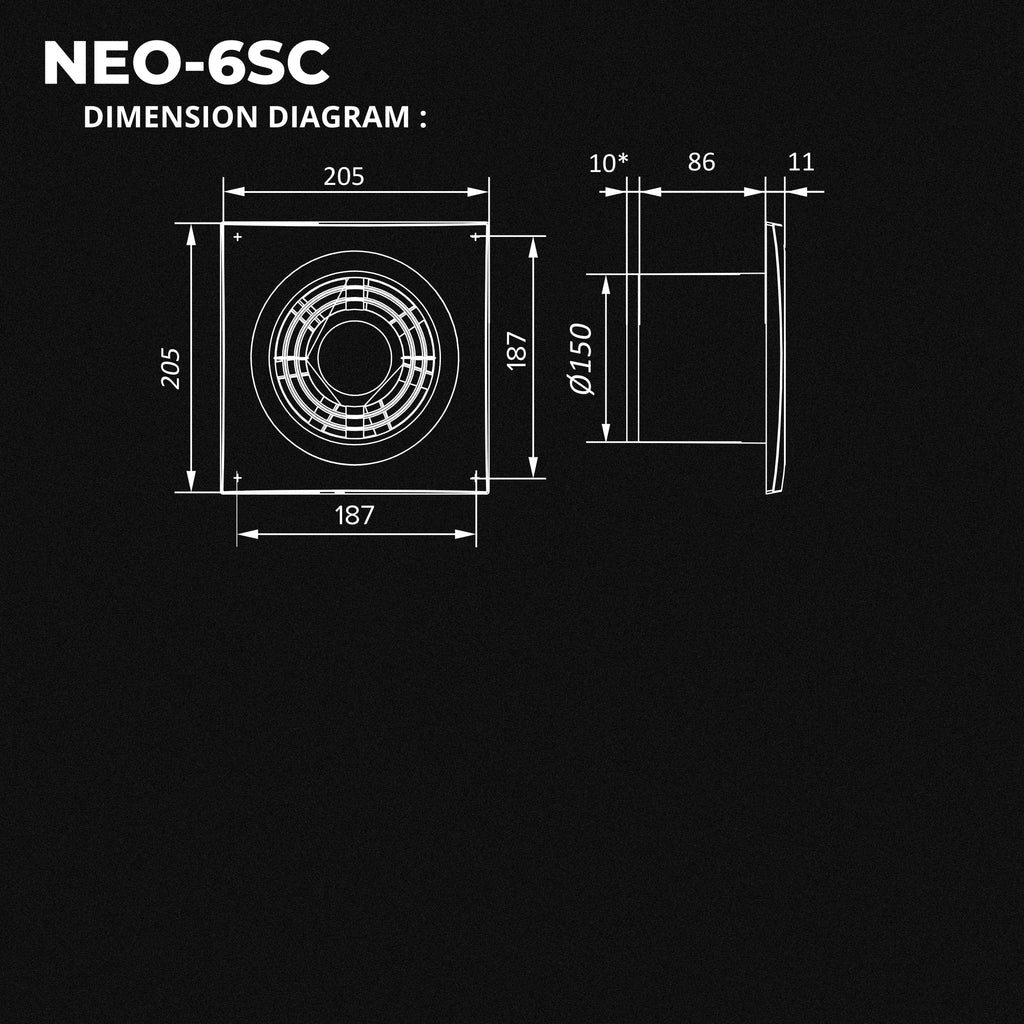

- Diameter: 150mm

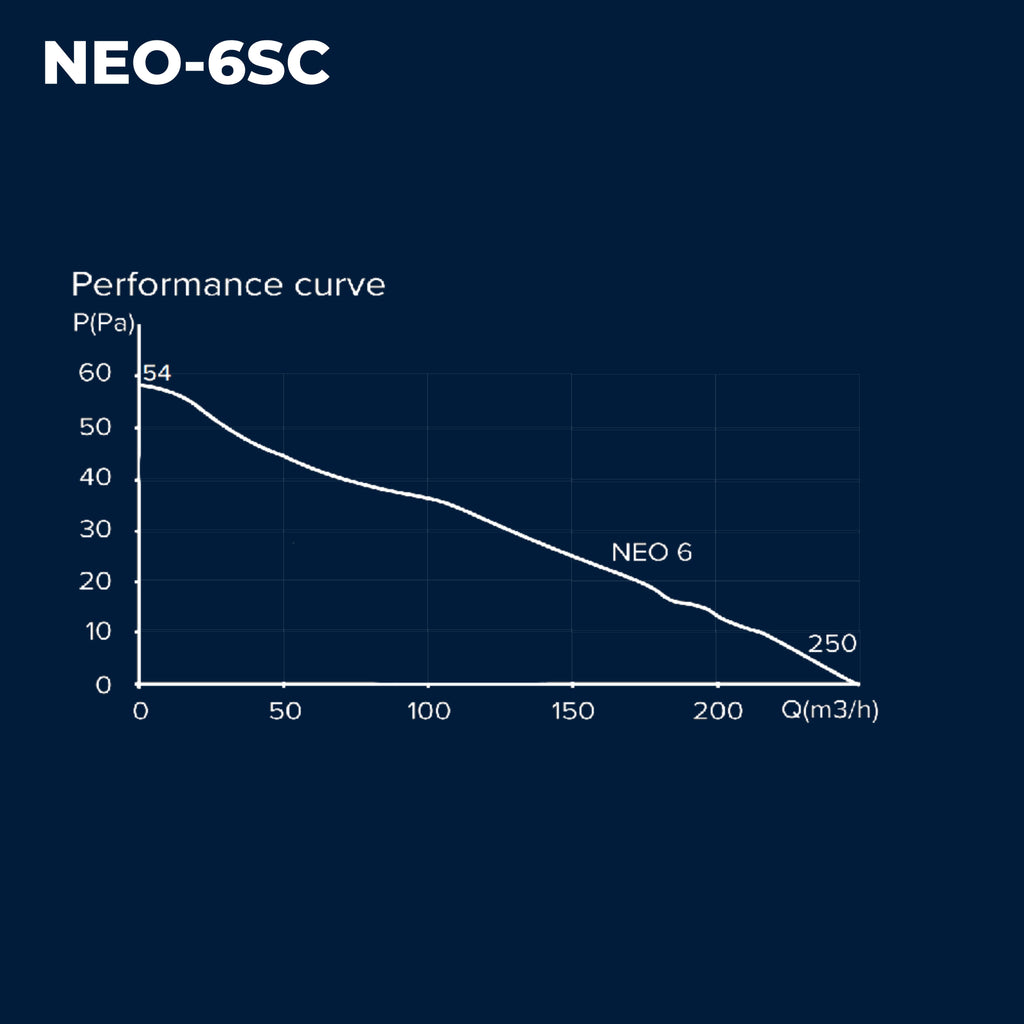

- Max. Airflow: 250m 3 /h
- Static Pressure: 54 Pa
- Noise Level: 38 dB(A)
- Voltage : 220V/ 50Hz
- Color: White
- Power: 16 W
- Current: 0.07
Features:
- Preferably, the installation should be done directly on the wall or glass in the washroom,
- Easy Installation: These fans can be mounted into ventilation shafts or connected to air ducts, allowing for seamless integration into existing ventilation systems.
- Quiet Operation: Equipped with a low noise ball-bearing motor, these exhaust fans provide a peaceful environment while effectively removing odors, steam, and pollutants from the air. The advanced motor technology ensures a prolonged service life of up to 40,000 hours of continuous operation.
- Energy Efficiency: With a focus on reducing power consumption, these exhaust fans are designed to operate efficiently, helping to lower energy costs without compromising performance.

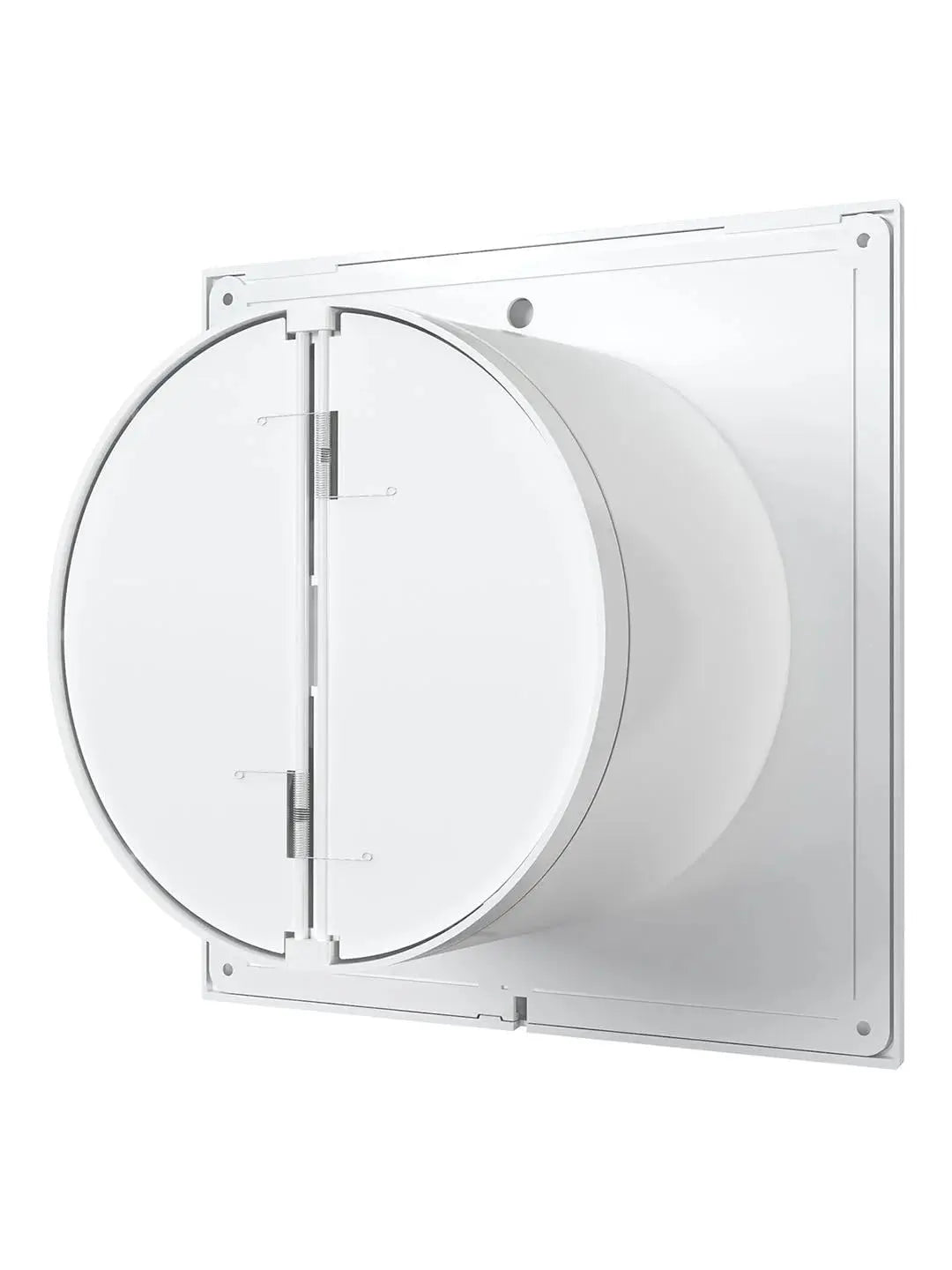

- Ceiling Mounting Compatibility: These fans are suitable for ceiling mounting, offering flexibility in installation. However, it's important to note that the back-draught shutter needs to be removed for ceiling installations.
- Versatile Application: These exhaust fans are designed for both wall and glass installation, making them suitable for various ventilation needs in different areas such as kitchens, bathrooms, and utility rooms.
- Diameter:150mm , Max. airflow: 250m3/h , Max. air pressure: 54Pa , Noise Level: 38(dB) , Power: 16w
model number: Neo 6 S C
Package Dimensions: 7.9 x 7.9 x 3.9 inches
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
