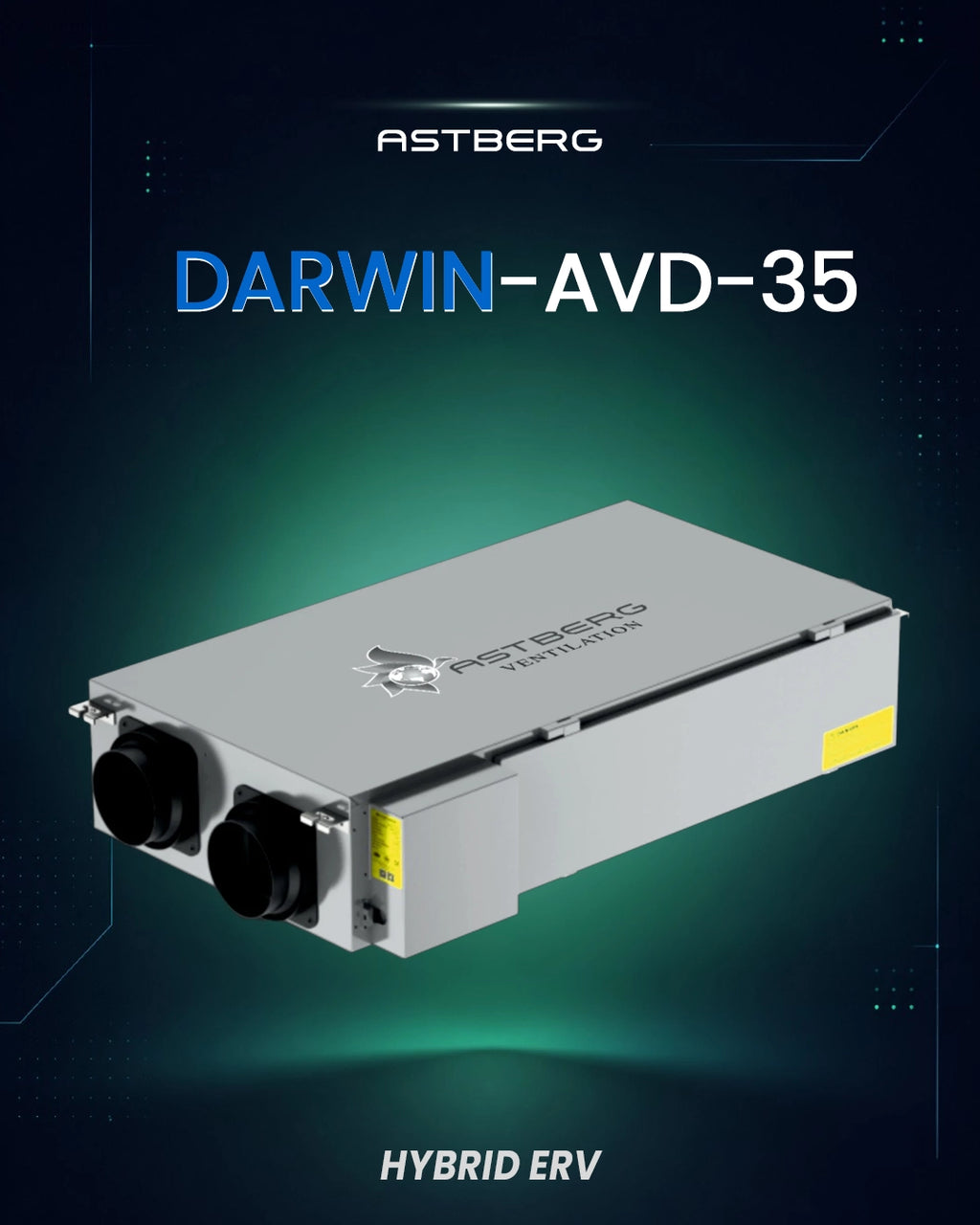

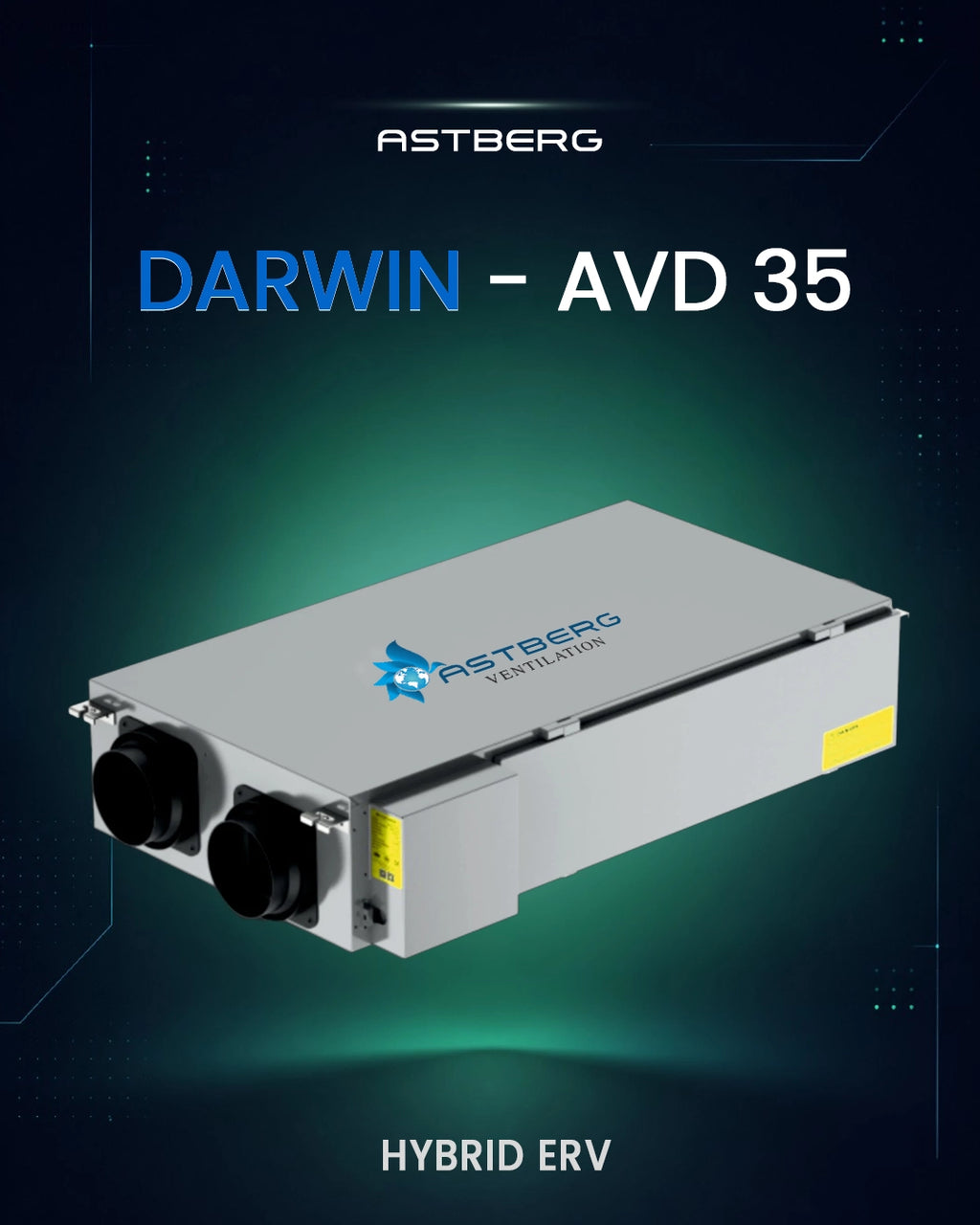

Astberg DARWIN HYBRID ERV AMERICAN TECHNOLOGY IFD FILTERS AVD35 350CMH FRESHAIR AIR PURIFICATION SYSTEM (NON REPLACEABLE FILTERS) 85-88% ENERGY RECOVERY EFFICIENCY
Astberg DARWIN HYBRID ERV AMERICAN TECHNOLOGY IFD FILTERS AVD35 350CMH FRESHAIR AIR PURIFICATION SYSTEM (NON REPLACEABLE FILTERS) 85-88% ENERGY RECOVERY EFFICIENCY
DARWIN-VF/A
PERFORMANCE PARAMETERS:-
Model :- Darwin-AVD-35
Airflow (m³/h):- 350
Voltage (V):- 220
Power (W):- 120

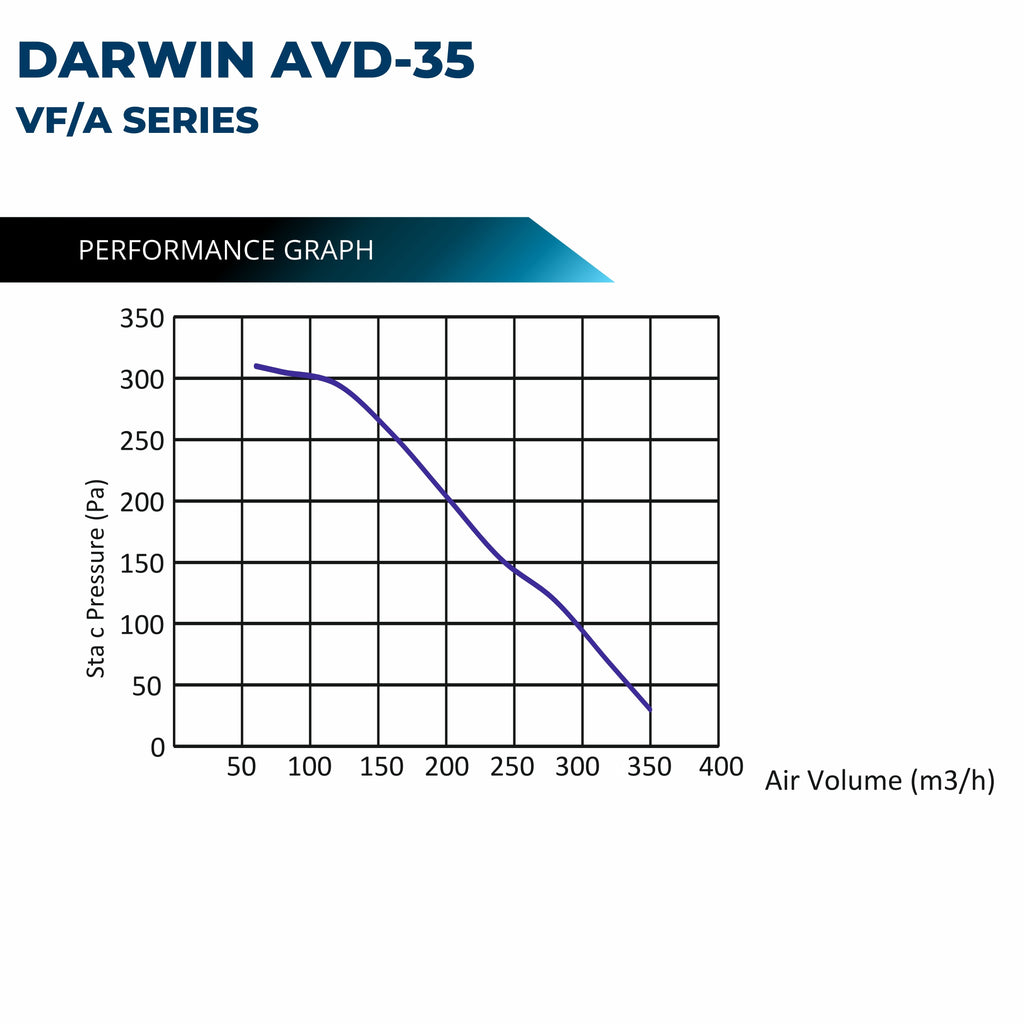

Hydrostatic (Pa):- 310
Noise (dB):- 38
Tube size (mm):- Φ 150
Heat Recovery(%) :- 80-85
Purification Efficiency(%):- 99

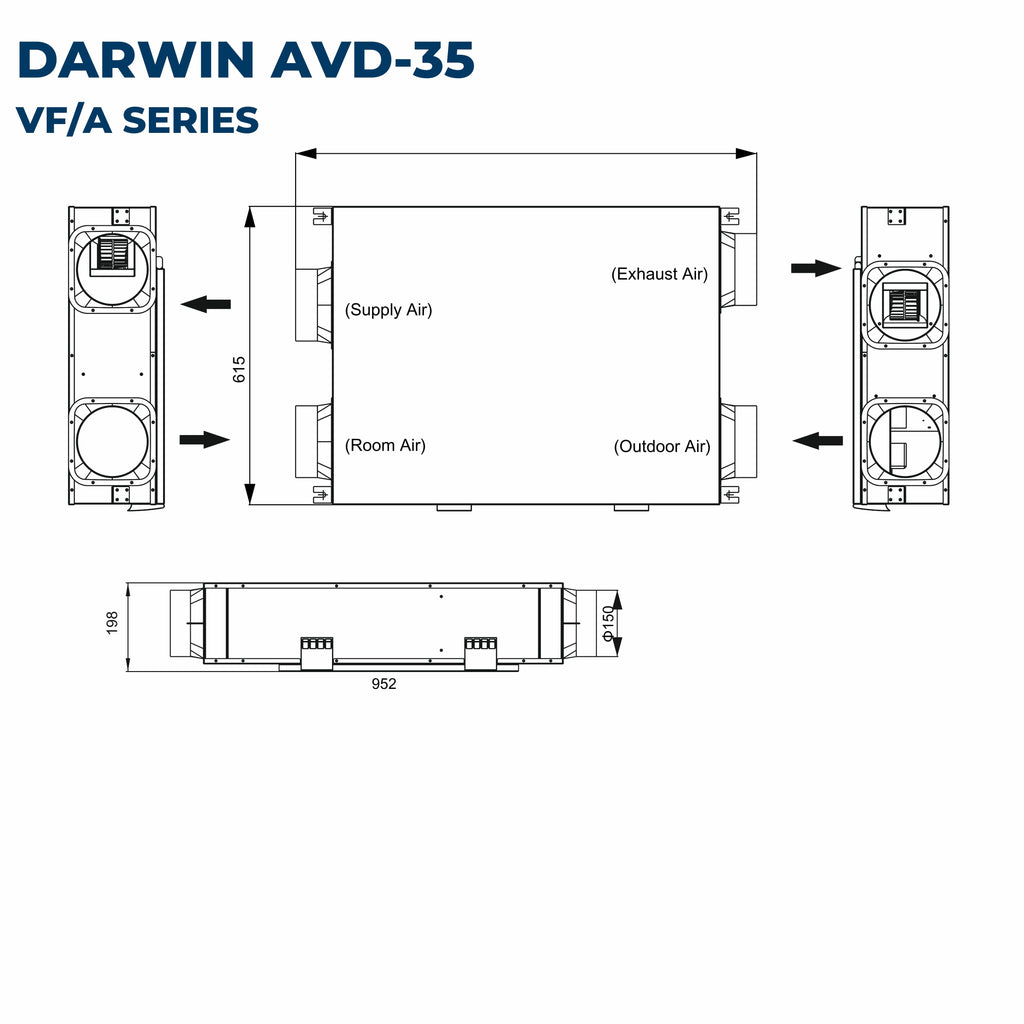

Fuselage Size(mm):- 952*615*198
Germany COOPER total heat exchange core, upgrade the new dimension of heat and cold precision control, solve the problem of indoor and outdoor temperature difference, so that the indoor temperature is always constant and comfortable state. CFD simulation flow to design, two-way increase air exchange, small wind resistance, high static pressure. Original sheet metal air duct structure design, not only increases the structure of the load-bearing, but also sound absorption Noise reduction, significantly reduce the crosstalk of fresh air and exhaust air, and improve the purification effect.
IFD Purification Module
Dynamic microparticle hunting module is to charge the dust microparticles and capture the charged microparticles in the hunting module. Gaseous molecular group cracking module is a thorough catalytic oxidation decomposition of formaldehyde, benzene, TVOC and other harmful pollutants, the end product of decomposition is carbon dioxide and water. No secondary pollution, no consumables, high efficiency and energy saving, long service life.
For price Connect with us at info@astbergventilation.com
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
