Astberg AF200 Silent Mixflow Circular Inline Duct Fan 840CMH - 200MM 8"- AF200
Astberg AF200 Silent Mixflow Circular Inline Duct Fan 840CMH - 200MM 8"- AF200
Exhaust Fan
Brand: Astberg
Color: Black
Features:
- Max. airflow: 840m3/h

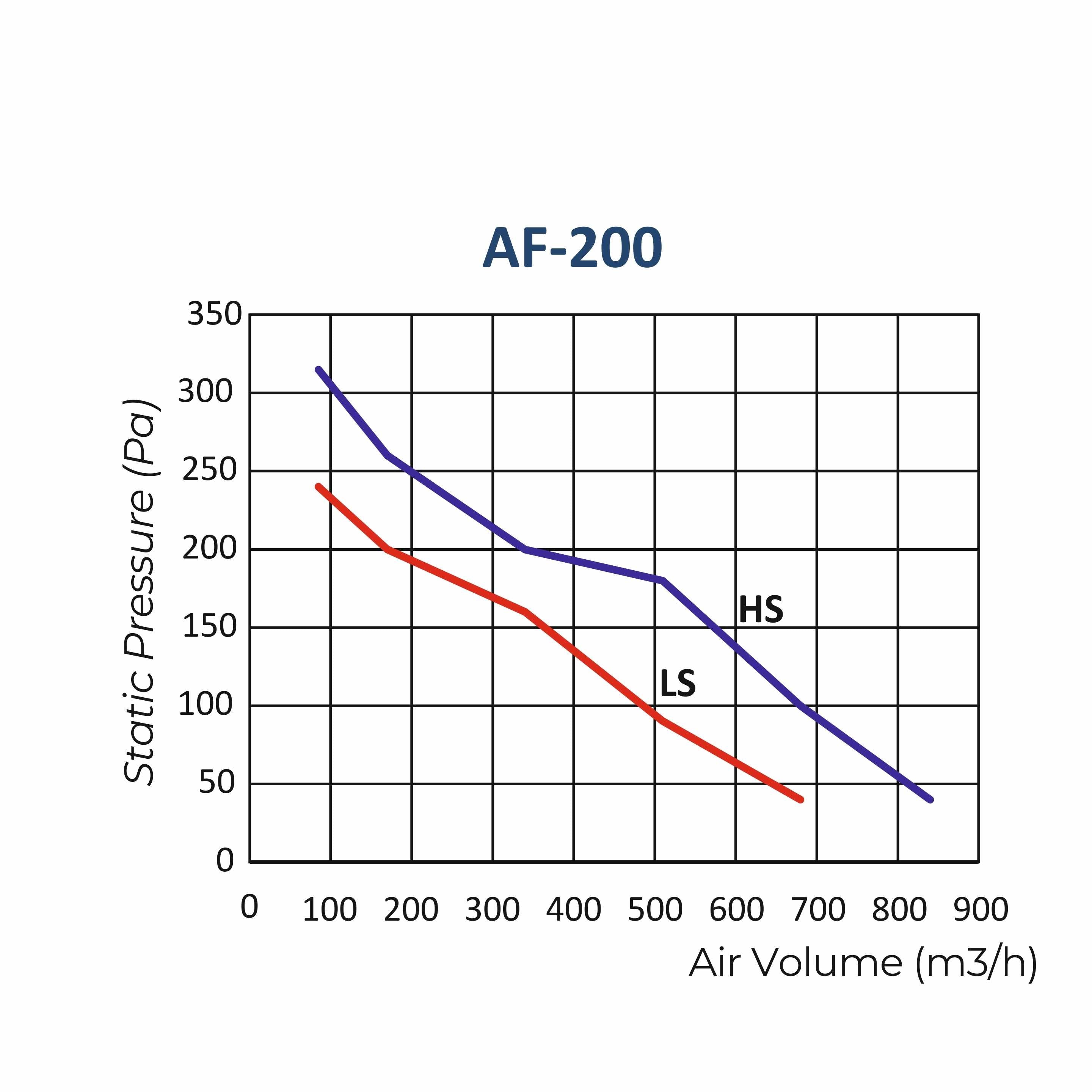

- Max. air pressure: 352Pa
- Noise Level: 63/55(dB)
- Voltage: 220/50 (V/Hz)
- Net weight: 4.9kgs
- Current: 0.53 amps
- Speed:- 2450/1950 rpm
- Power:- 128W
- Full ABS plastic body, light weight but with enough strength, double insulation

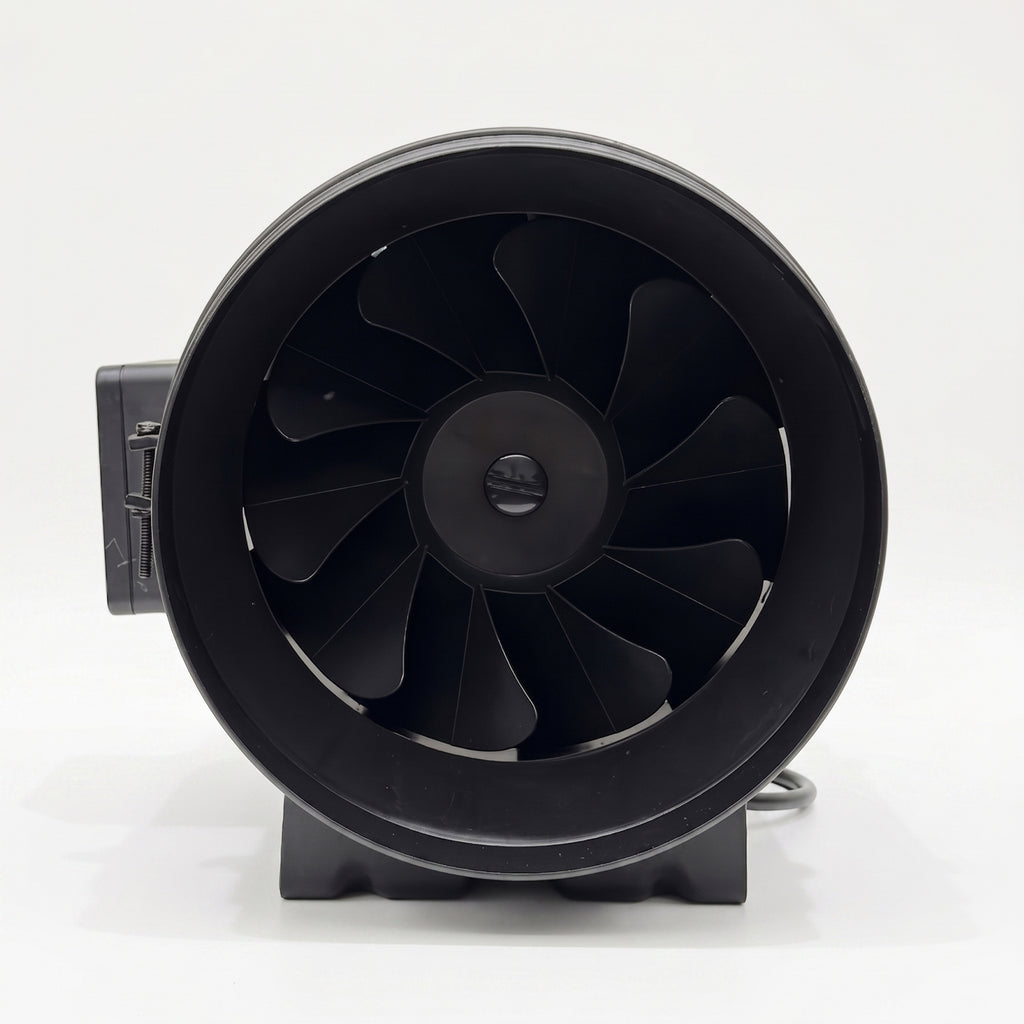

- Mixed-flow impeller design, high pressure and large air flow, high efficient, low noise.
- Special snap joints design, easy installation, perfect seal conditions, easy maintenance. It may be used effectively to ventilate conference room, office, public place, hotel, house, and modernized toilets and washrooms.
- Moreover, the motor and impeller are located at the center of the structure which means you can easily install, remove or maintain them without adjusting the pipeline even in sealed space. Also, it can be installed randomly in any sides of the pipeline, with any angle of the pipeline. Furthermore, this product can be installed with series connection if you need more pressure.
model number: AF200
Package Dimensions: 11.9 x 9.8 x 9.3 inches
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
