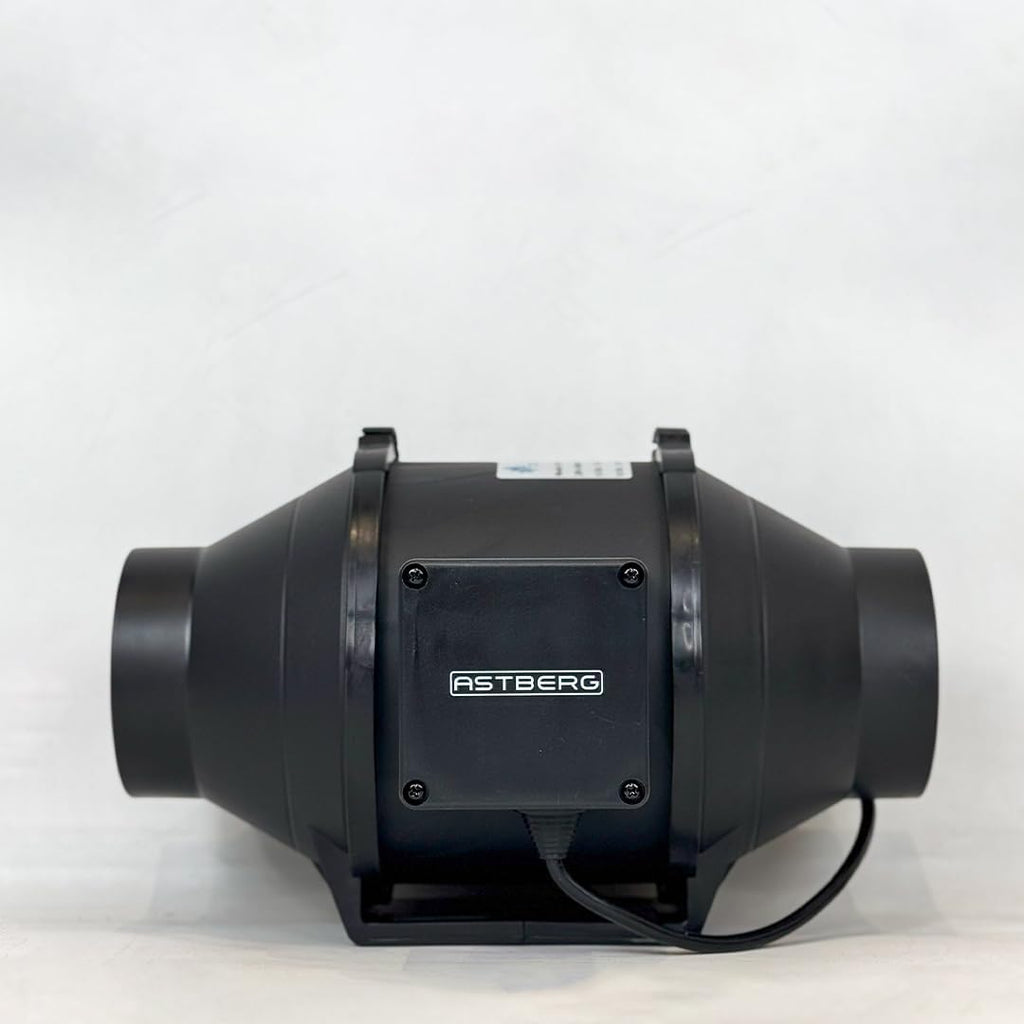

ASTBERG AF100P SILENT MIXFLOW INLINE CIRCULAR DUCT VENTILATION EXHAUST FAN 198CMH 100MM

Product Title:
Astberg AF100 Silent Inline Exhaust Fan (100mm / 4) 198 CMH | 117 CFM | Compact Power.
Super Quiet. Reliable Ventilation. Breathe Better. Ventilate Smarter.

Product Specifications:

• Model: Astberg AF100
• Size of Duct: 100mm (4)
• Max. Airflow: 198/165 m 3 /h
• Max. Pressure: 156 Pa
• Noise Level: 31/26 dB(A)
• Voltage : 220V/ 50Hz
• Net Weight: 1.5kg
• Content: Full ABS Plastic (Light weighted & Sterling)
• Color: Black

Product Description:

The Astberg AF-100 is more than just an ordinary exhaust fan; it is a product designed to meet the needs of polluted rooms in small spaces, where loud but effective air circulation is necessary. It has a high-efficiency mixed-flow impeller and a dual-speed motor, allowing for silent operation (only 31 dB(A).

The AF-100 provides the best airflow while maintaining silence, whether in a bathroom, pantry, tiny grow tent, or modest offices. It is composed of durable ABS plastic and has a snap-fit mechanism for easy installation.
The low power usage (~25W) and low-maintenance design make it perfect for 24/7 ventilation in modern residences and commercial purposes.

How do I install this product?

1. The fan must be linked to a 100mm duct (rigid or flexible).
   2. Mount it with a bracket on the ceiling, wall, or duct system.
   3. Synchronize power wires and speed switches, internal or external
   4. Bam! It takes less than 15 minutes to set up without any problem.


 Key Features:

⦁    Dual-Speed Motor: Easily switch between low and high-performance modes, super quiet operation 31 dB(A). Perfect for bathrooms and bedrooms
⦁
 Compact Design:  This exhaust easily fits neatly in small areas.
⦁
Effective Mixed-Flow Impeller: Consistently provides the finest airflow despite modest resistance.

⦁    Corrosion-Resistant: Durable ABS Construction: ABS is less heavy than metal but yet strong enough to employ ABS material without being overly fragile.

⦁    Convenient Assembly: Snap joints allow for simple assembly without the need for tools.

⦁    Double-insulated design makes installations safer and neater since it eliminates the need for earthing.

When to Use It?
1. Powder rooms and bathrooms
2. Compact washing machines or kitchens. Small laundry rooms or kitchens.
3. Compact homes, flats, or rental units
4. Utility cabinets and server cabinets
5. Hydroponic tents and grow boxes
6. Household structures: Duct systems in the walls and ceiling
7. Hotel restrooms and office cabins.

✅ Benefits of This Model
This model's advantages include:

⦁    It's ideal for confined spaces, small size, and large output.

2. Ultra-Silent: Prefers to work in exceedingly quiet conditions.

3. Efficient Use of Energy Constant consumption of 25W.

4. Dependable and Secure dependable and secure double-insulated, thermally shielded motor

Why the Astberg AF-100?

It's because quiet matters.
The AF-100 works out of the way while you try to take a soaking bath, concentrate at a home office, or grow in a grow tent with proper humidity. It is designed to be a tiny, high-performance, quiet, and user-friendly design. Luxurious -quality ventilation without the expense.

Tech Specs at a Glance
Small in size. Big on performance.
Feature    Specification
Duct Size - Compatible with ducting 100mm (4").
Suitable for use in flats, ensuite toilets, and utility rooms (KPM: duct size).

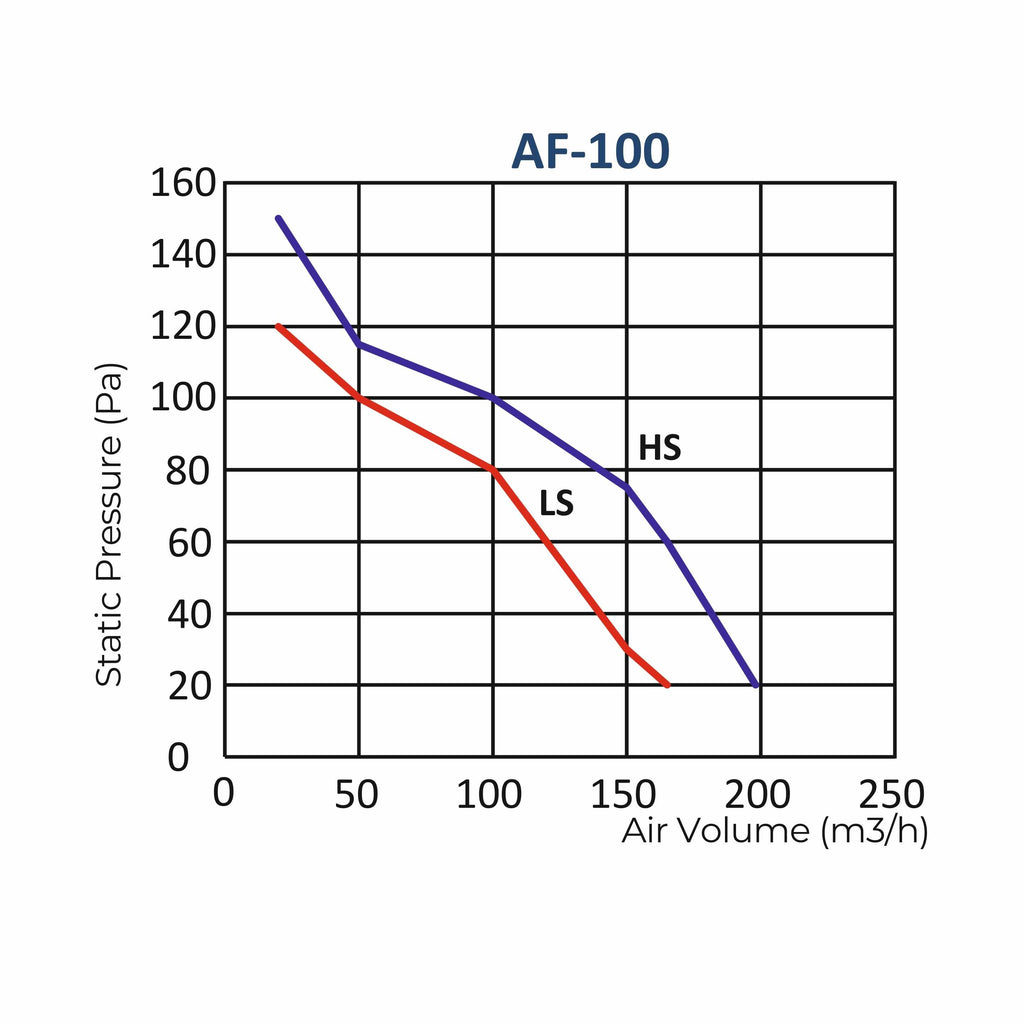

Maximum Airflow: 198 m 3 /h (117 CFM)- Offers enough ventilation for smaller areas (KPM: Air Volume).
Static pressure of around 156 Pa is sufficient to handle small duct lengths and bends (KPM: Pressure Handling).
Power usage: ~25W - Low energy usage for continuous operation (KPM: Efficiency)
Sound Measurement 31 dB(A)—quieter than a clock ticking (KPM: Acoustic Output)
Voltage 220V AC- This is compatible with standard power 220V.
The body is made of high-grade ABS plastic material. The motor type is a thermally double ball bearing, copper protected, dual speed, longer service life, and is safe.

Weight -1.5kg
Insulation Class: Double Insulated - safer and easier installation

 FAQ – Real Questions. Real Answers.

Q: Is the AF-100 exhaust installed in the bathroom?
A: Absolutely yes, it is appropriate for dry settings, and it can operate silently in compact places.

Q: Is it acceptable for use 24/7?
A: Yes. This motor is thermally enclosed and intended to run continuously.

Q What does 31 decibels (A) sound like?
A: A scarcely audible whisper or rustling of leaves.

Q: Will this fan fit through flexible ducts?
A Yes, it easily connects to both rigid and flexible 100mm ducting.

Q: Can I, by any chance, install it myself?
A: Yes! It is designed for easy development. No specialized tools or expertise are required.

Q: Is it required earthing?
A: No, it is double-insulated, which is safe and easy to install.

In a nutshell:
When you require 100% silent operation, tiny size, and convenient ventilation in the restroom, grow tent, or other small place with no maintenance disturbance, the Astberg AF-100 is the clever low-cost solution.
