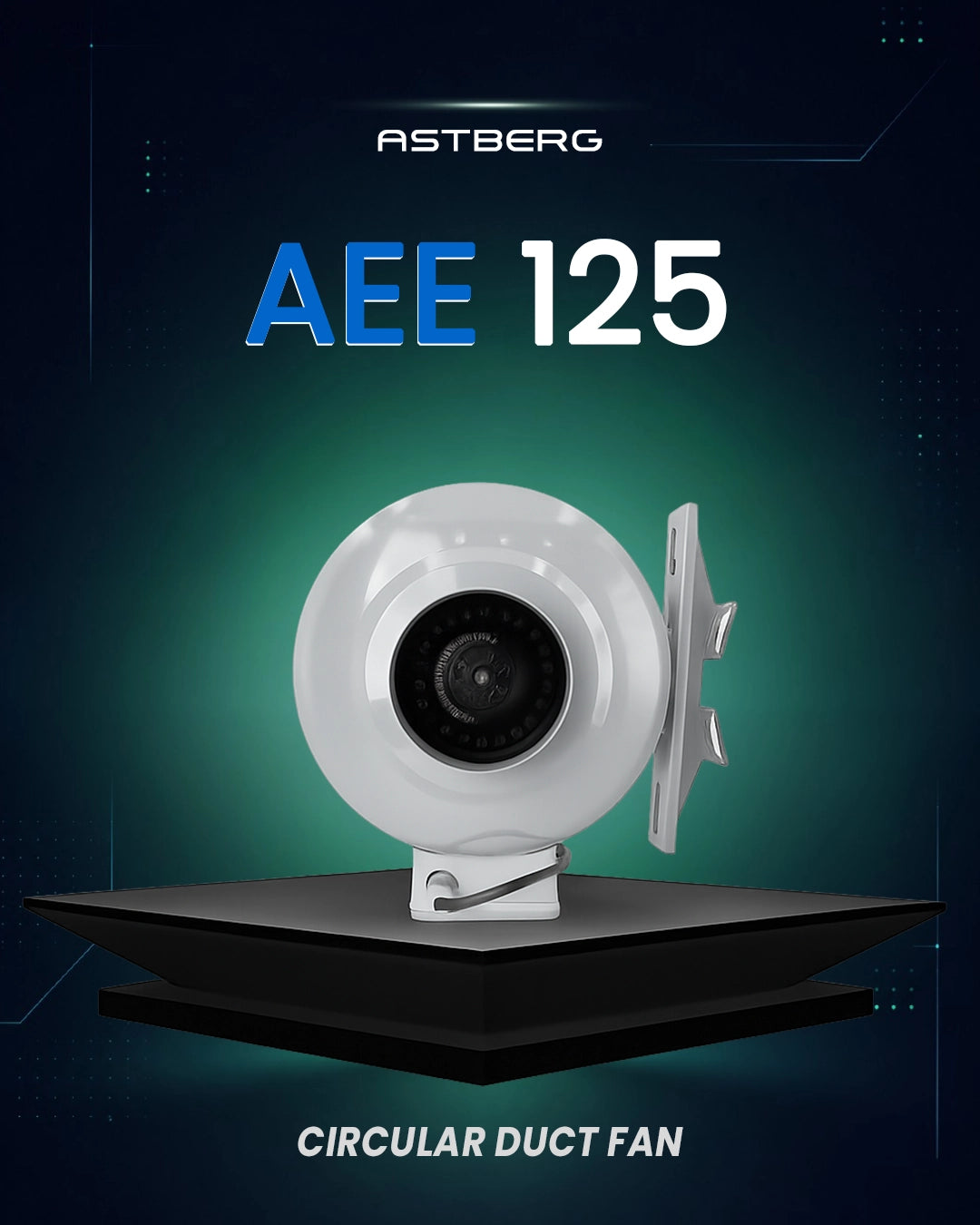

Astberg AEE125G Circular Inline Duct Fan (125 mm / 5", 370 m³/h, 217 CFM)
Astberg AEE125G Circular Inline Duct Fan (125 mm / 5", 370 m³/h, 217 CFM)
Product Specifications:
- Model: AEE-125G
- Size of Duct: 125 mm / 5"
- Max. Airflow: 370 m³/h, 217 CFM
- Max. Pressure: 350 Pa
- Noise Level: 48dB(A)
- Voltage : 220V/ 50Hz
- Net Weight: 3.9kg
- Body: Metallic
- Color: Metallic

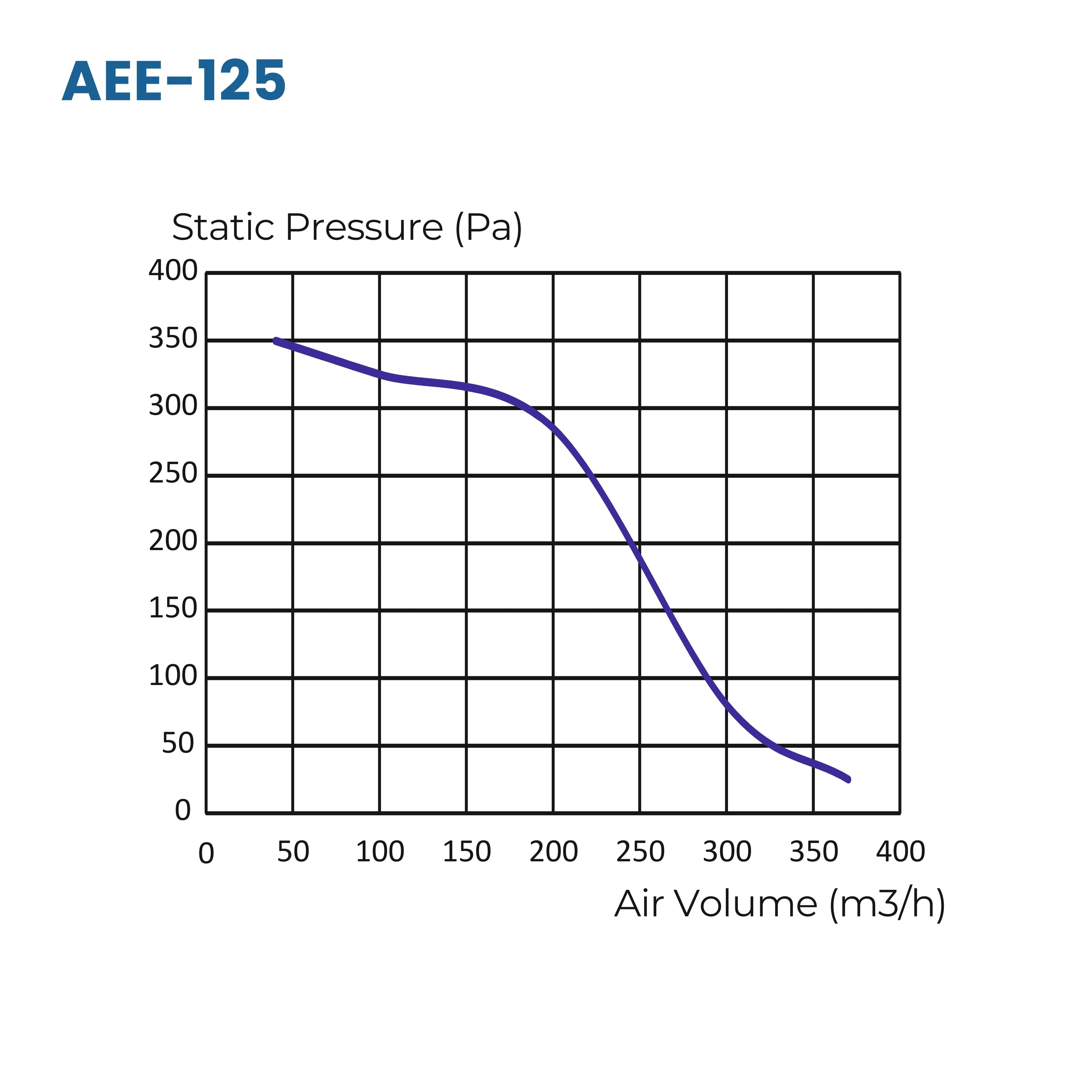

High Efficiency: Offers 370 m³/h (217 CFM) air volume and 350 Pa static pressure—appropriate in bedrooms, offices, or apartments.
Super Quiet: This is intended to support the lowest noise level of 49 dB so that it does not cause too much noise.
Constant Airflow: The dynamically balanced turbine reduces vibration and provides a smooth operation to the turbine.
Rugged Steel Construction: Anti-corrosion casing will result in tenacity even during intensive construction.

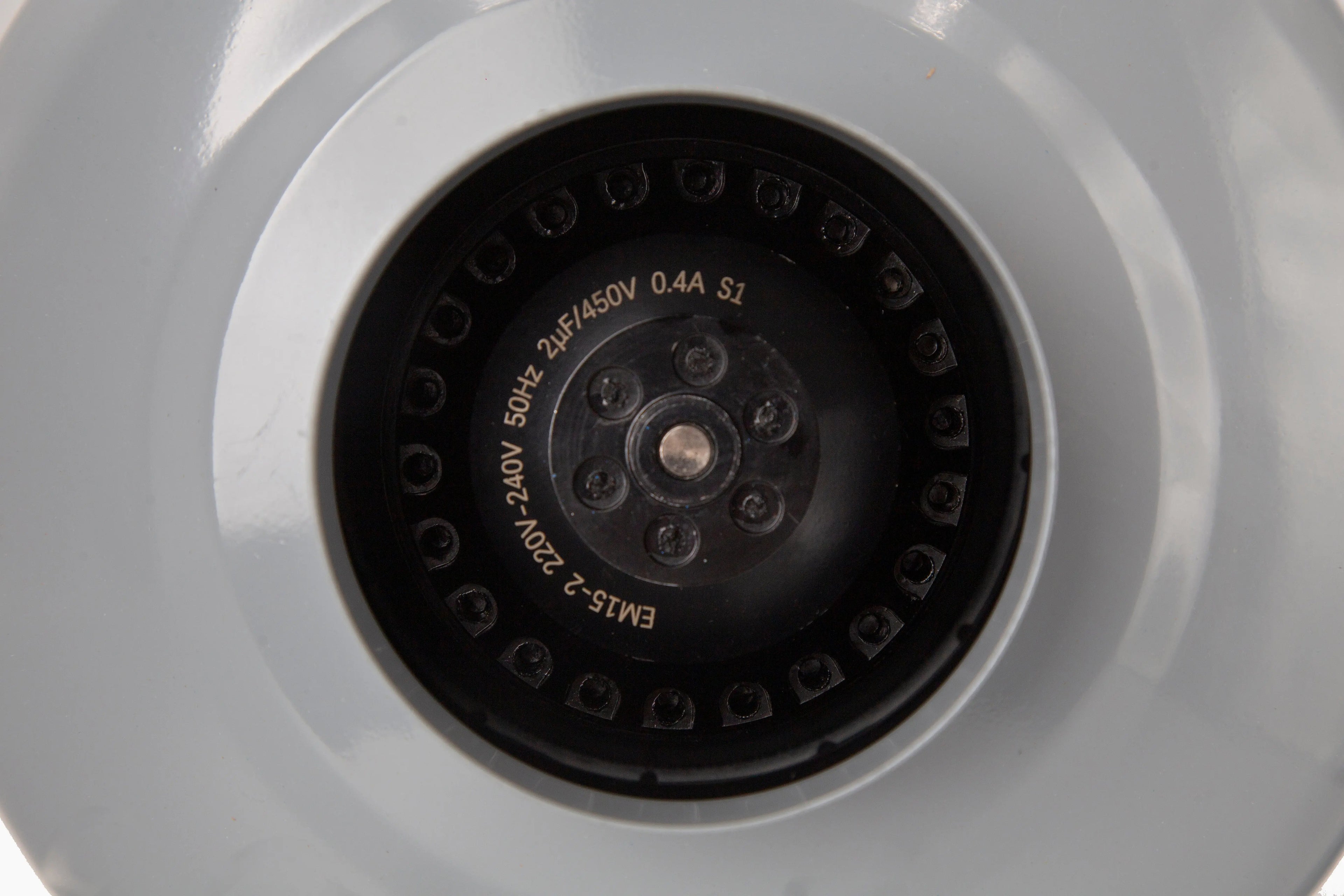

Maintenance-Free Motor: The ball-bearing motor has low maintenance and a long life span.
Small Dimension: It is lightweight with a 3.9 kg weight and is therefore easy to attach and fit into duct systems.
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
