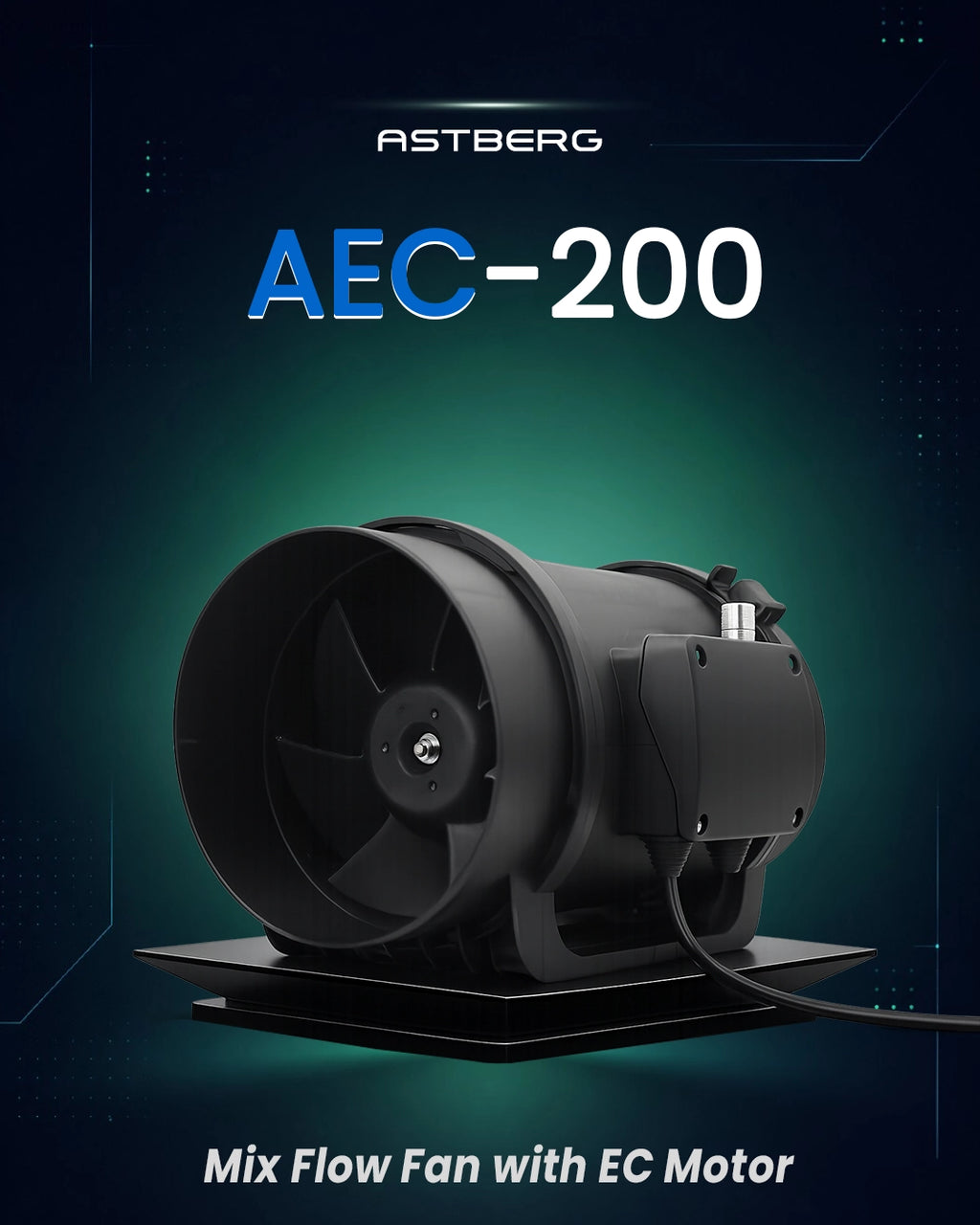

ASTBERG EC MOTOR SILENT MIXFLOW CIRCULAR INLINE VENTILATION FAN WITH REGULATOR AND VARIABLE SPEED AEC200 1292CMH 200MM 8"
ASTBERG EC MOTOR SILENT MIXFLOW CIRCULAR INLINE VENTILATION FAN WITH REGULATOR AND VARIABLE SPEED AEC200 1292CMH 200MM 8"
Exhaust Fan
Product Specifications:

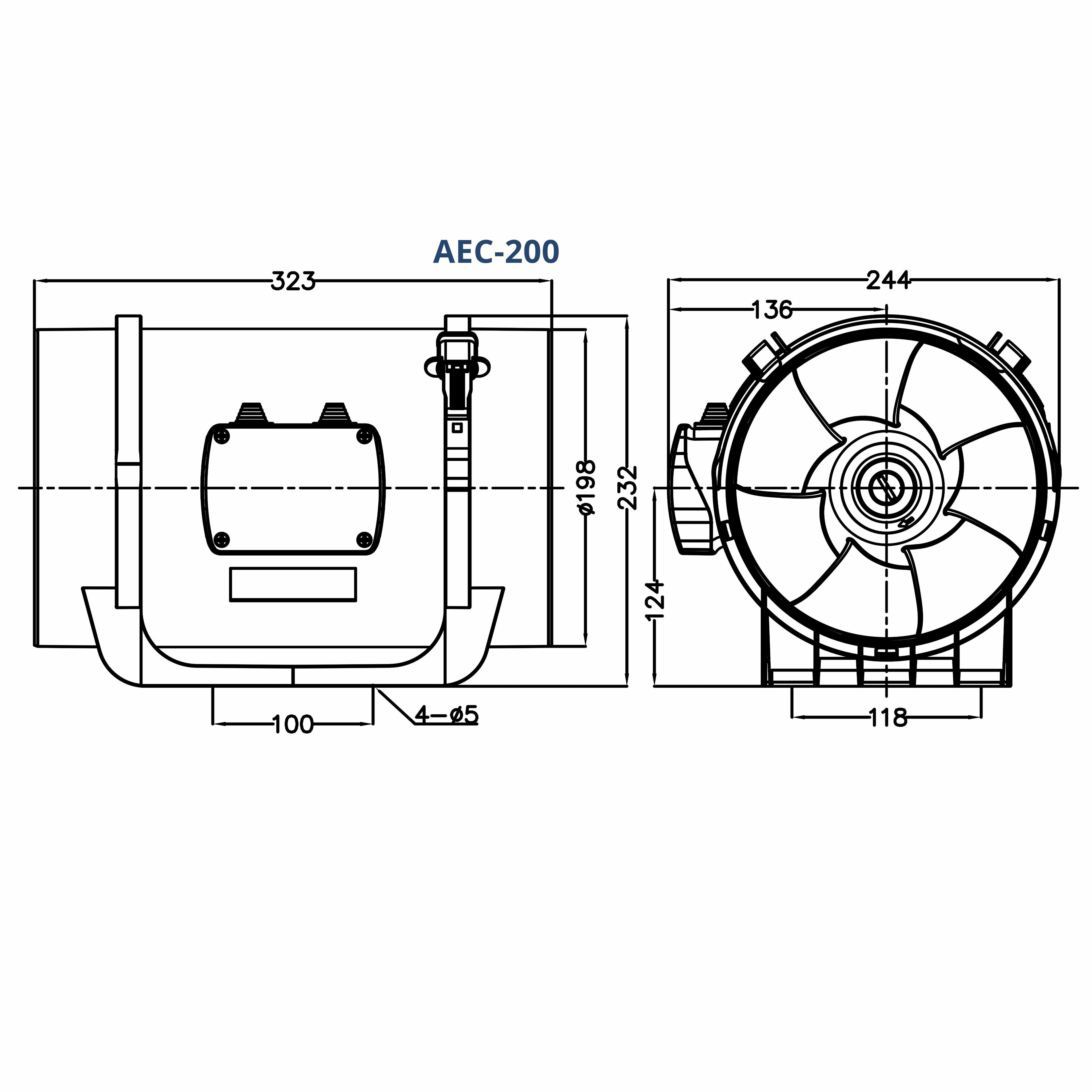

- Model: AEC200
- Size of Duct: 200MM / 8"

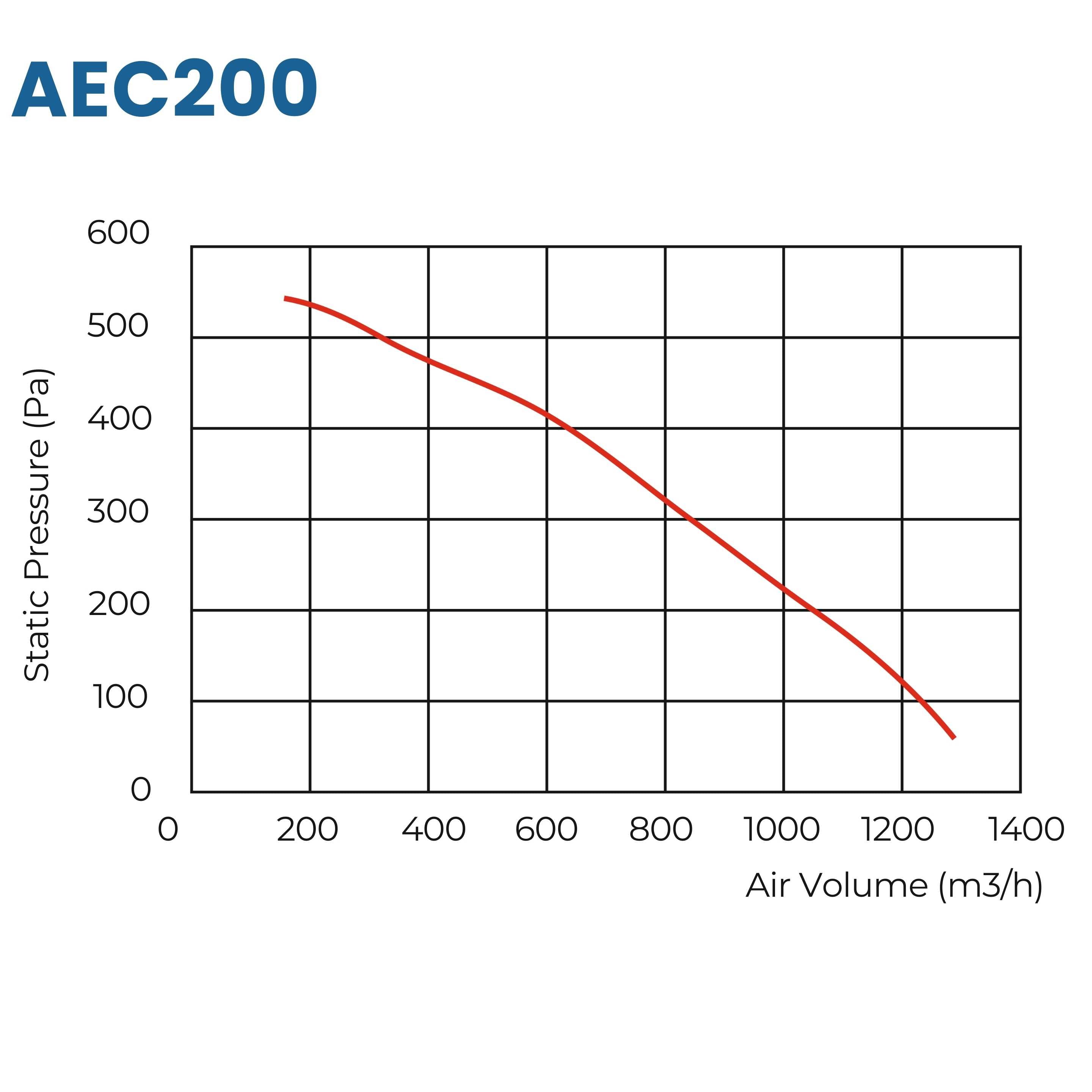

- Max. Airflow:1292 m 3 /h
- Max. Pressure: 485 Pa
- Voltage : 220V/ 50Hz
- Net Weight: 2.7 kg
- Color: Black
- Body:- ABS plastic body
- Power:- 110W
- Speed: 3550 rpm
1. Astberg EC duct fans are used in indoor grow facilities and vertical farms, heating and cooling transfer, commercial drying and air filtration applications. Our inline blowers can also create negative pressure environments, simulate wind, exhaust odors and smoke as well as intake fresh air from outdoors Built with cutting edge brushless EC Motor and dual jet type blades, this blower delivers 530CMH airflow rate using just 55 Watts at max speed. Our fans don?t ?purge? or waste electricity at lower speeds. Our EC fan gives you a unique flexibility of controls ? choose any speed from 0 to 100% using the included variable speed controller without creating background noise or hum at low speeds. Or choose to upgrade to a wireless remote control or intelligent thermostat speed controller with temperature programming . Coated steel housing resists rust, protects motor and blades from accidental damage and harsh elements to reduce maintenance in demanding applications. This fan has IPX4 ingress protection rating
- Duct Diameter: 6” (150mm) * Airflow: 20CMH - 1292CMH * Power: 110W * Noise: 45-65 dBA * Max Pressure:485 Pa * Bearings: Dual Ball *
- Built with cutting edge brushless EC Motor and dual jet type blades, this blower delivers 530CMH airflow rate using just 50 Watts at max speed. Our fans don’t “purge” or waste electricity at lower speeds.
- Our EC fan gives you a unique flexibility of controls – choose any speed from 0 to 100% using the included variable speed controller without creating background noise or hum at low speeds. Or choose to upgrade to a wireless remote control or intelligent thermostat speed controller with temperature programming .
- Coated steel housing resists rust, protects motor and blades from accidental damage and harsh elements to reduce maintenance in demanding applications. This fan has IPX4 ingress protection rating
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
