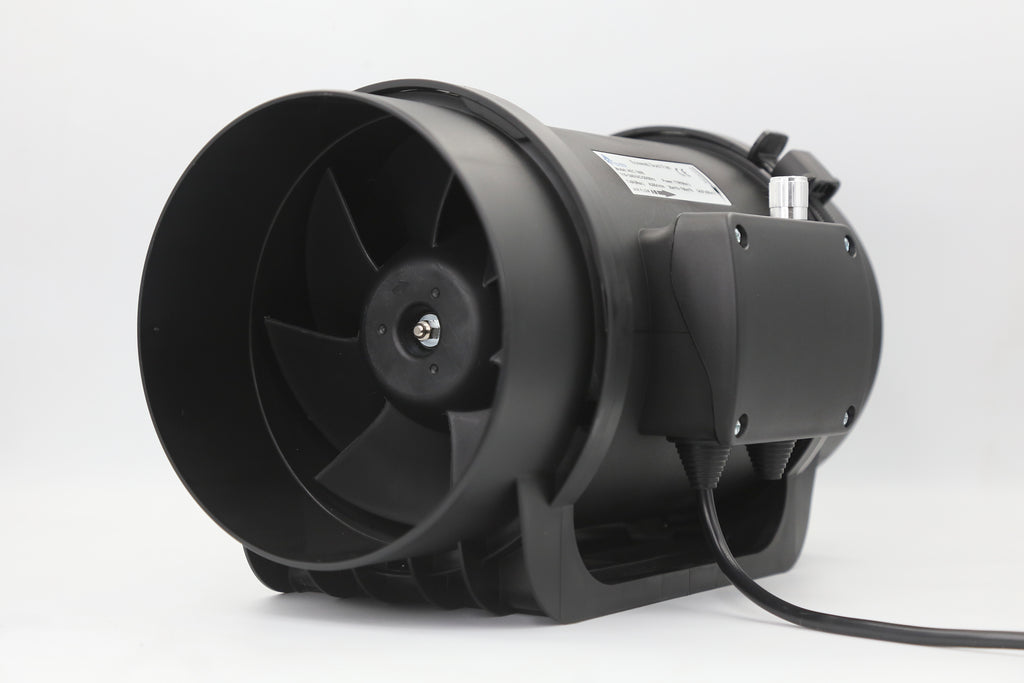

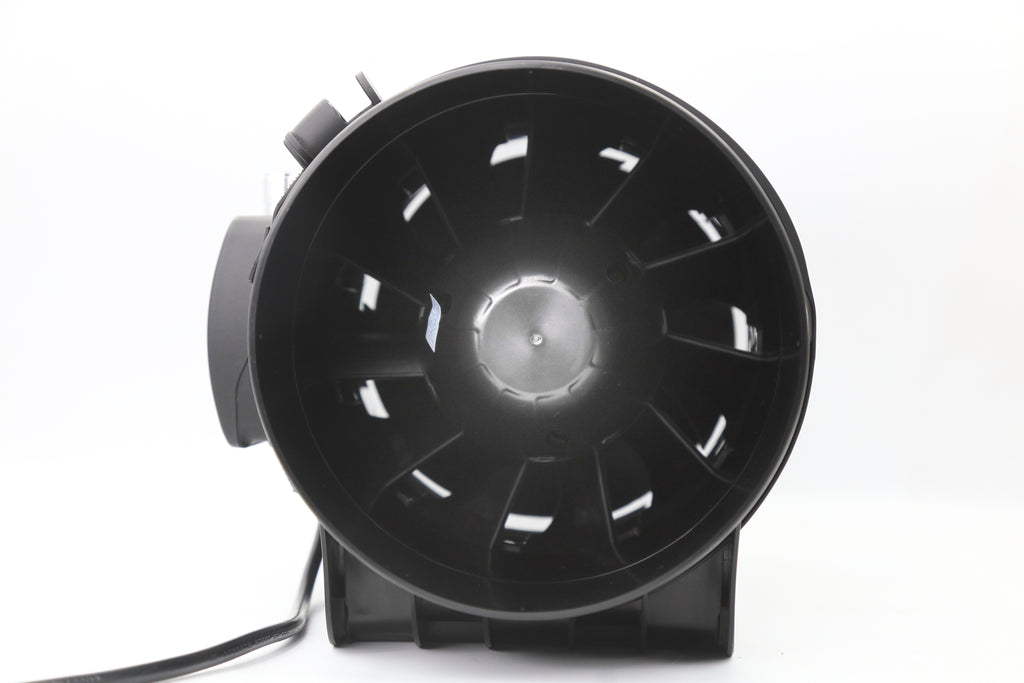

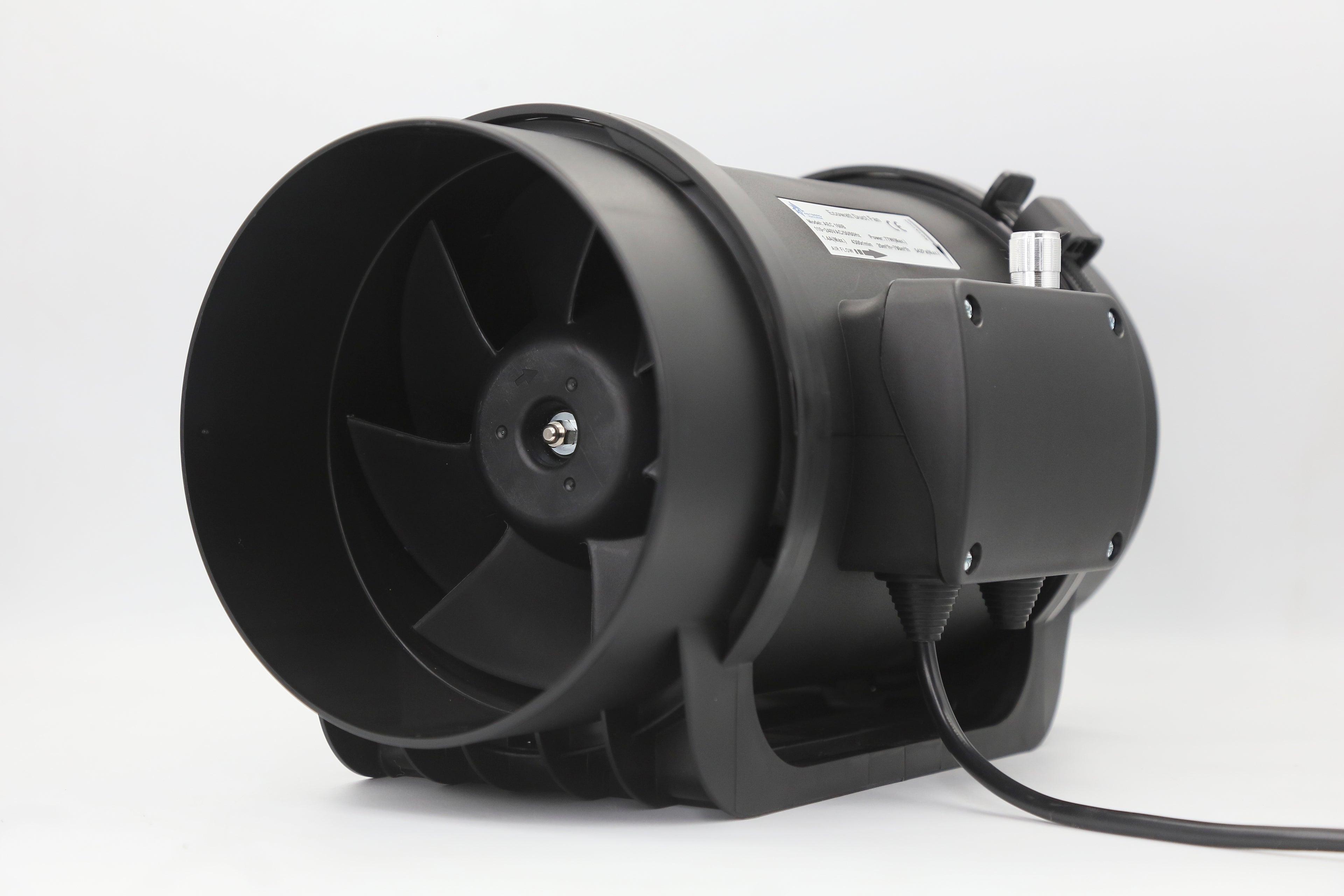

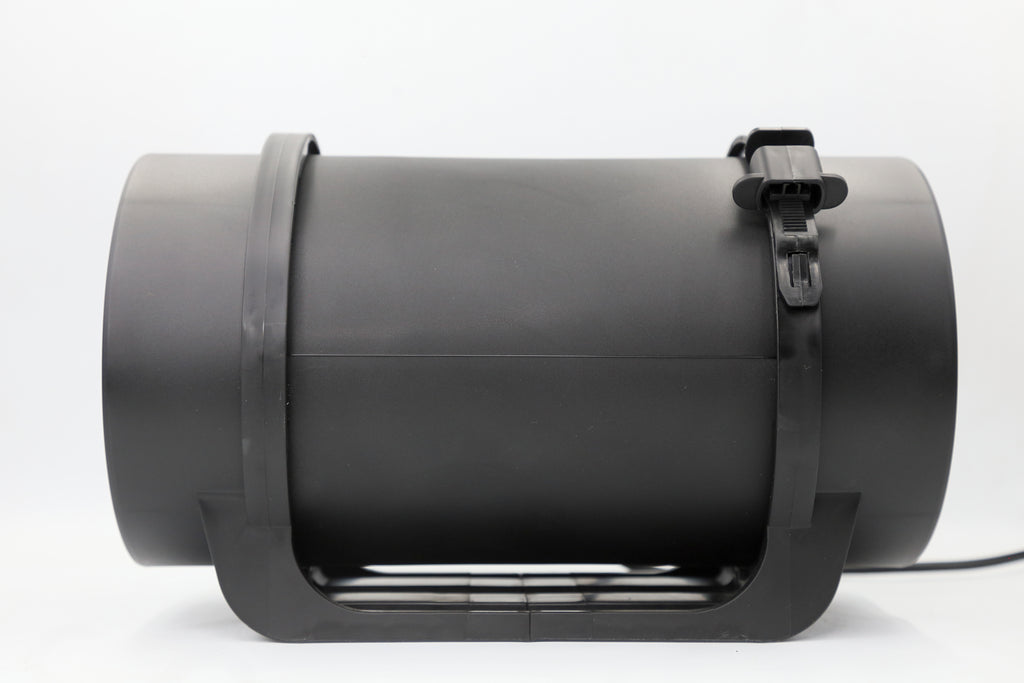

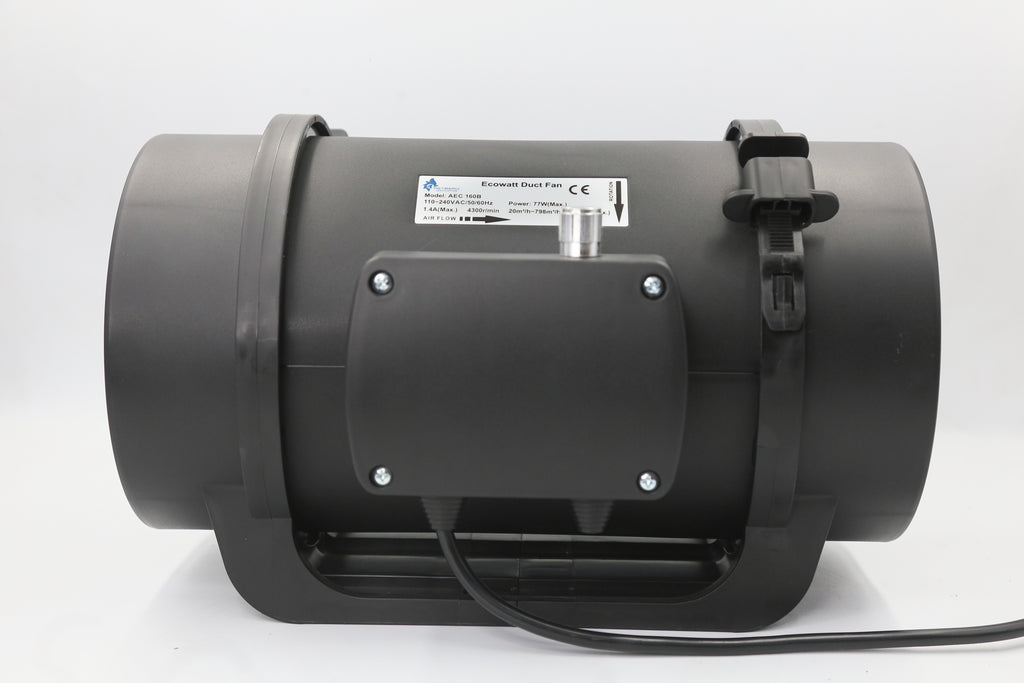

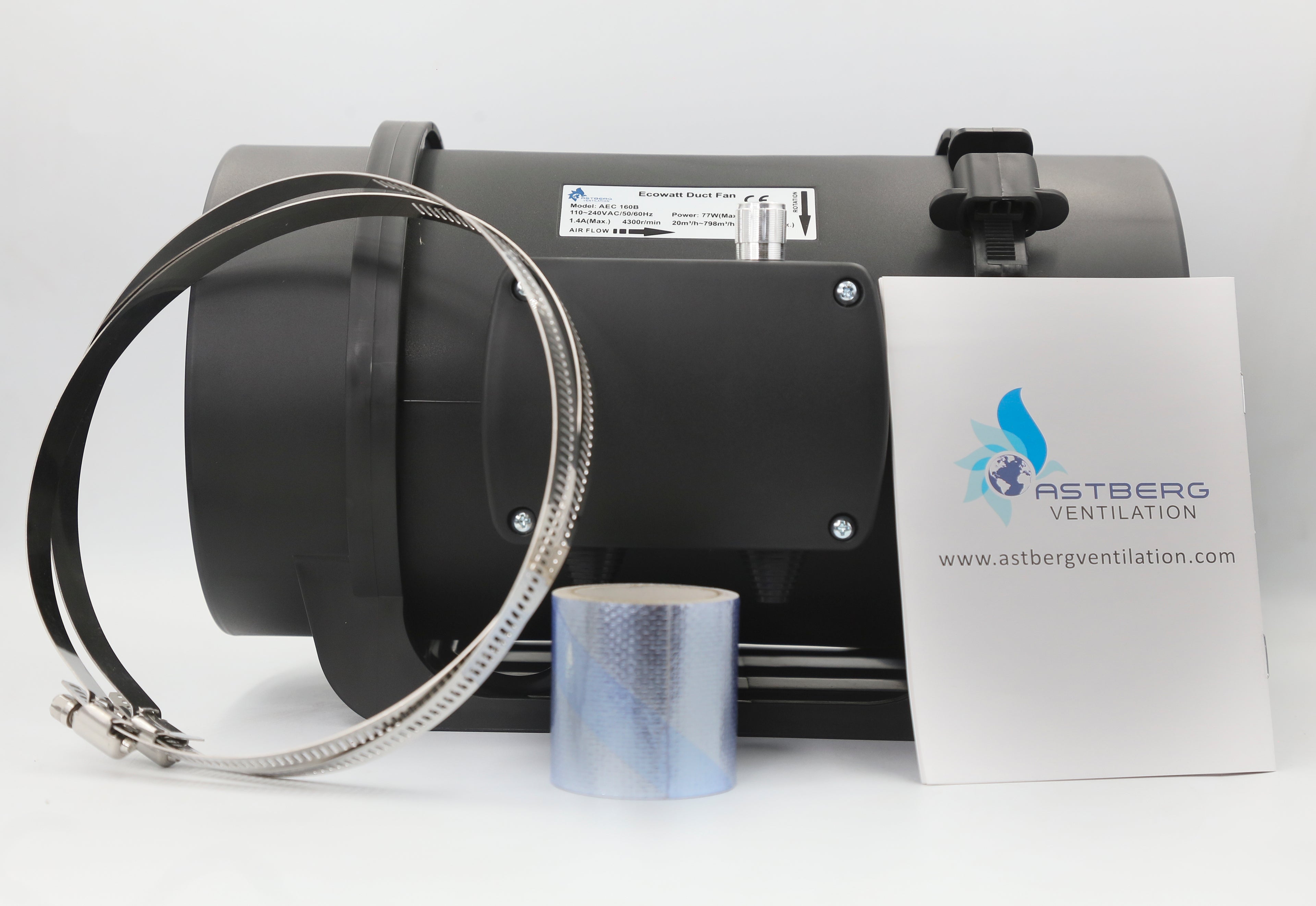

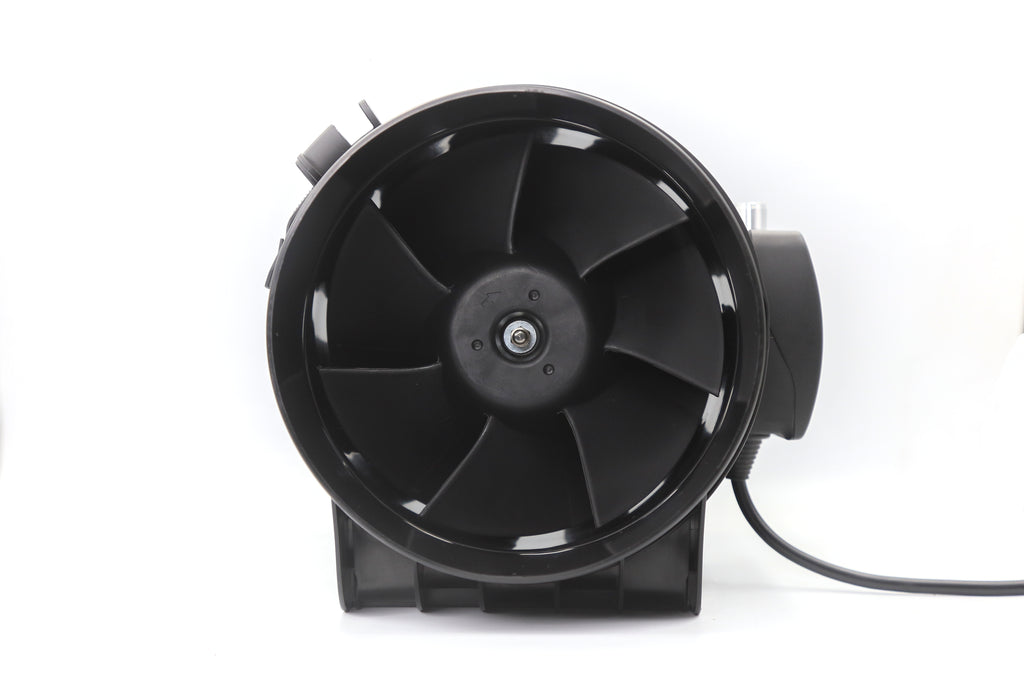

ASTBERG EC MOTOR SILENT MIXFLOW INLINE DUCT VENTILATION FAN WITH REGULATOR AEC160 20-798CMH 160MM
ASTBERG EC MOTOR SILENT MIXFLOW INLINE DUCT VENTILATION FAN WITH REGULATOR AEC160 20-798CMH 160MM
Exhaust Fan
Brand: Astberg
Color: BLACK
Product Specifications:
- Model: Astberg AEC160
- Size of Duct: 160MM
- Max. Airflow: 20-798m 3 /h

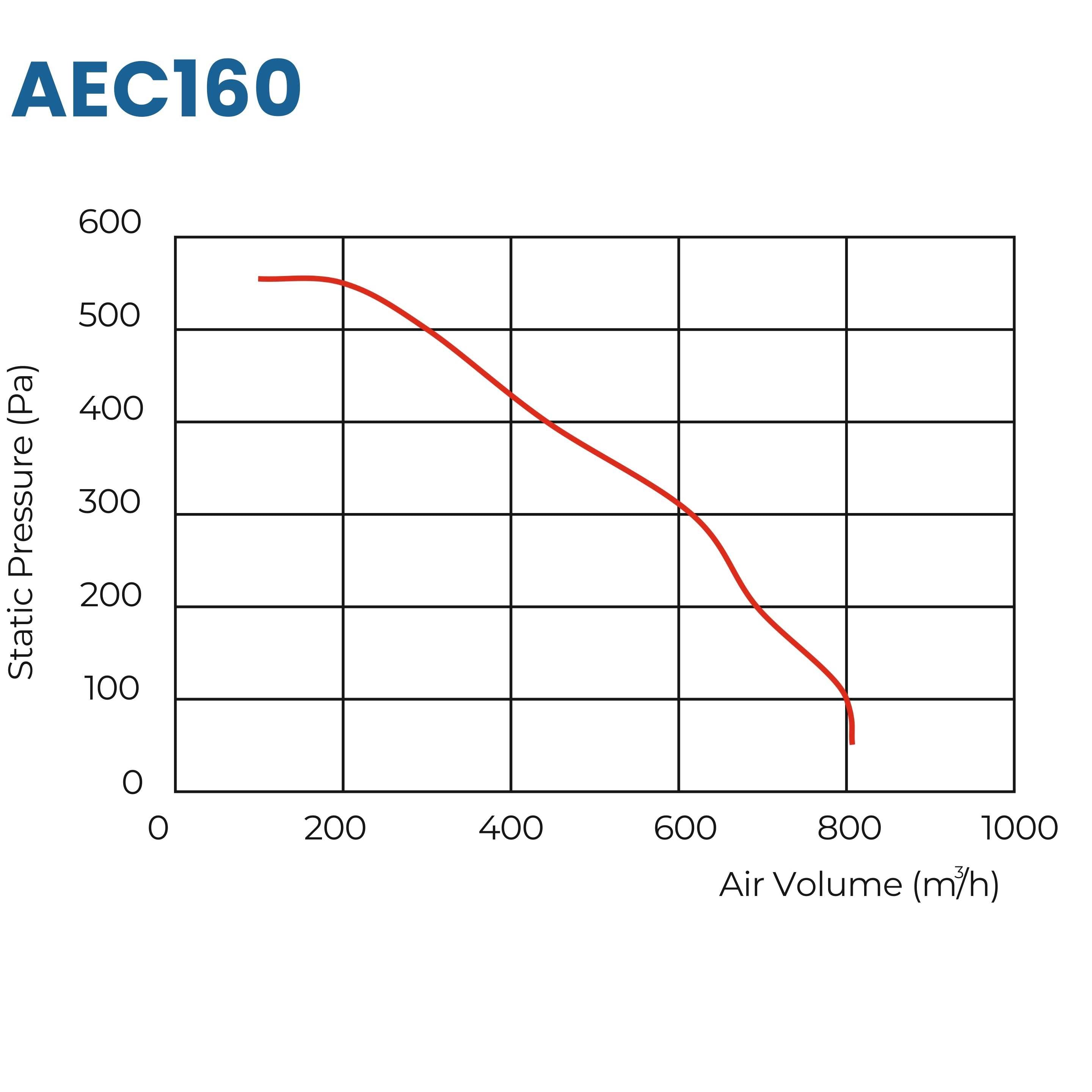

- Max. Pressure: 542 Pa
- Voltage : 220V/ 50Hz
- Net Weight: 2.0 kg
- Color: Black
- Body:- ABS plastic body
- Power:- 77W
- Speed:4330 rpm
Features:
- Astberg EC duct fans are used in indoor grow facilities and vertical farms, heating and cooling transfer, commercial drying and air filtration applications. Our inline blowers can also create negative pressure environments, simulate wind, exhaust odors and smoke as well as intake fresh air from outdoors
- Built with cutting edge brushless EC Motor and dual jet type blades, this blower delivers 798CMH airflow rate using just 77 Watts at max speed. Our fans don’t “purge” or waste electricity at lower speeds.
- Our EC fan gives you a unique flexibility of controls – choose any speed from 0 to 100% using the included variable speed controller without creating background noise or hum at low speeds. Or choose to upgrade to a wireless remote control or intelligent thermostat speed controller with temperature programming .
- Coated steel housing resists rust, protects motor and blades from accidental damage and harsh elements to reduce maintenance in demanding applications. This fan has IPX4 ingress protection rating
model number: AEC 160
Part Number: AEC

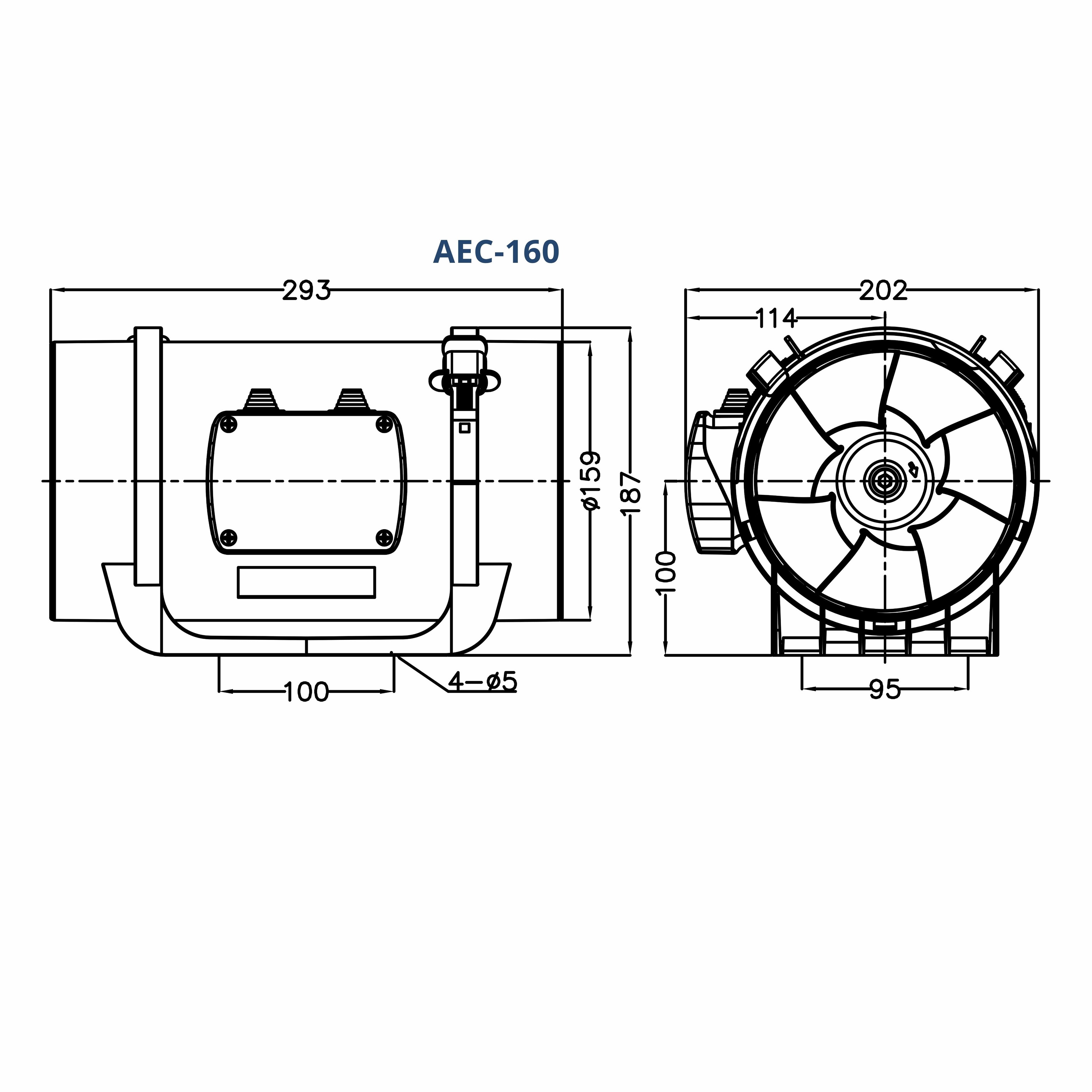

Package Dimensions: 293 x 187 x 100 MM
