At its simplest, an air handling unit AHU is a large metal box that conditions incoming air before distributing it through a building via ductwork. Unlike a standalone fan, the AHU integrates multiple systems — filtration, heating, cooling, humidity control, and ventilation — into a single, co-ordinated assembly.

The term AHU is often used interchangeably with air handler, though HVAC engineers typically reserve it for larger commercial systems. You will find air handling units in office blocks, hospitals, shopping centres, schools, and data centres — any building where mechanical ventilation is required to maintain healthy, comfortable indoor air.

A well-designed AHU is fundamental to any serious heating, ventilating, and air conditioning strategy. It determines how much fresh return air is recirculated, how efficiently air temperature is managed, and how effectively contaminants are removed before air reaches occupied spaces.

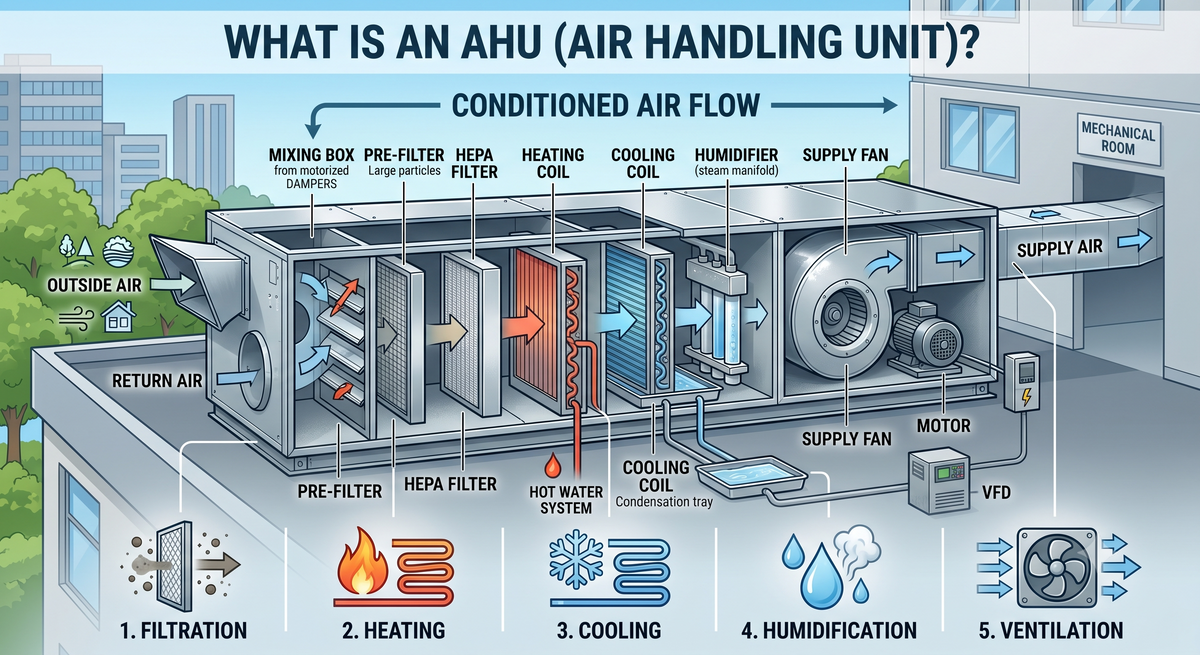

The process of air passing through an AHU follows a logical sequence. Fresh outdoor air enters the unit, where it meets return air drawn back from the occupied spaces. These two streams blend inside the mixing chamber, creating a combined airstream at a controlled ratio. This mix then travels through an air filter that removes particulates, pollen, dust, and other contaminants.

After filtration, the air moves across heat exchangers — the cooling coil in summer or the heat coil in winter. These coils adjust the air temperature to the target set point. A supply fan then drives the conditioned air through the building's duct network, delivering the correct air volume to each zone before exhausting stale air back out.

A sophisticated control system governs every stage — monitoring sensors, adjusting dampers, modulating fan speeds, and responding to changing occupancy and outdoor conditions. The result is a building that can circulate air continuously at the right temperature, humidity, and cleanliness level.

The table below illustrates the sequential path of air through a typical AHU, from fresh air intake through to conditioned air supply:

AHU Airflow Sequence →

↵ Return air loop feeds back into the mixing chamber for recirculation.

Understanding the individual parts of an AHU demystifies how the system achieves precise control over indoor air conditions. Each component plays a specific role in the overall air flow chain.

One of the most significant advances in modern air handling unit design is the integration of heat recovery technology. Rather than exhausting conditioned air and spending energy to treat fully fresh air, heat exchangers within an ERV or HRV pre-condition the incoming air by transferring energy from the outgoing stream.

In winter, warm return air heats the cold incoming fresh air, dramatically reducing the load on the heat coil. In summer, cool exhaust air pre-cools the warmer incoming air before it reaches the cooling coil. A Heat Recovery Ventilator (HRV) transfers heat only; an Energy Recovery Ventilator (ERV) transfers both heat and moisture.

A common source of confusion in HVAC is the distinction between an AHU and a rooftop unit (RTU). Both condition and distribute air, but they differ significantly in scope, scale, and installation context.

In summary: choose an AHU for large, complex buildings requiring precise air flow control and energy efficiency. Opt for a rooftop unit for simpler, smaller commercial applications where speed of installation and a self-contained air conditioning system are priorities.

AHUs are not one-size-fits-all. Depending on building type, climate, and operational requirements, engineers select from several configurations:

Draw-through vs. Blow-through AHUs

In a draw-through AHU, the fan is located downstream of the coils, drawing air through the filters and coils. In a blow-through unit, the fan pushes air through. Draw-through designs are more common as they produce more even air passing across the coil surface, improving efficiency.

Single-zone vs. Multi-zone AHUs

A single-zone AHU conditions air for one area at a consistent set point. A multi-zone unit serves several areas simultaneously, using zone dampers to modulate air supply independently to each section.

Packaged vs. Built-up AHUs

Packaged units come factory-assembled, offering speed for standard applications. Built-up AHUs are constructed on-site, giving engineers freedom to specify precise coil sizing, filter classes, and heat recovery system integration.

Outdoor (Weatherproof) AHUs

Some applications require the AHU outdoors, often on a rooftop. Weatherproof housings protect sensitive components from rain, frost, and UV exposure while maintaining all the functional benefits of a standard air conditioning system.

A modern AHU is only as effective as its control system. Building Management Systems (BMS) and dedicated AHU controllers continuously monitor dozens of variables — supply and return air temperatures, differential pressure across the air filter, humidity, CO₂ concentration, and fan speed.

Variable Air Volume (VAV) systems dynamically adjust the air volume delivered to each zone based on occupancy and demand, preventing energy waste. Demand-Controlled Ventilation (DCV) uses CO₂ sensors to bring in fresh air only when needed, balancing ventilation quality with running costs.

The integration of IoT and predictive maintenance algorithms is transforming AHU management. Smart sensors can flag when an air filter reaches end of service life, when coil fouling is reducing heat transfer across the cooling coil, or when fan imbalance is developing — preventing failures before they disrupt operations.

What does AHU stand for in HVAC?

AHU stands for Air Handling Unit. It is the central component in a heating, ventilating, and air conditioning system responsible for conditioning and distributing air throughout a building.

What is the purpose of the mixing chamber in an AHU?

The mixing chamber blends fresh outdoor air with recirculated return air before the combined stream is filtered and conditioned. Adjusting the mix ratio allows the system to balance fresh air ventilation with energy efficiency, reducing the workload on the heat coil or cooling coil.

How often should AHU air filters be replaced?

The service interval depends on environment and filter class. In a typical commercial application, pre-filters are inspected monthly and replaced every 3–6 months, while final-stage filters may last 6–12 months. Modern AHU control systems automate filter monitoring using differential pressure sensors.

Can an AHU be used for both heating and cooling?

Yes. A full-function AHU contains both a heat coil for raising air temperature in winter and a cooling coil for chilling air in summer. The control system sequences these components as needed, making the AHU a year-round solution for indoor air conditioning.

How does heat recovery improve AHU performance?

By incorporating heat exchangers (via an ERV or HRV), an AHU can recover the thermal energy in the exhaust return air and use it to pre-condition incoming fresh air. This reduces the energy required to reach the target air temperature, lowering operating costs and carbon emissions significantly.
