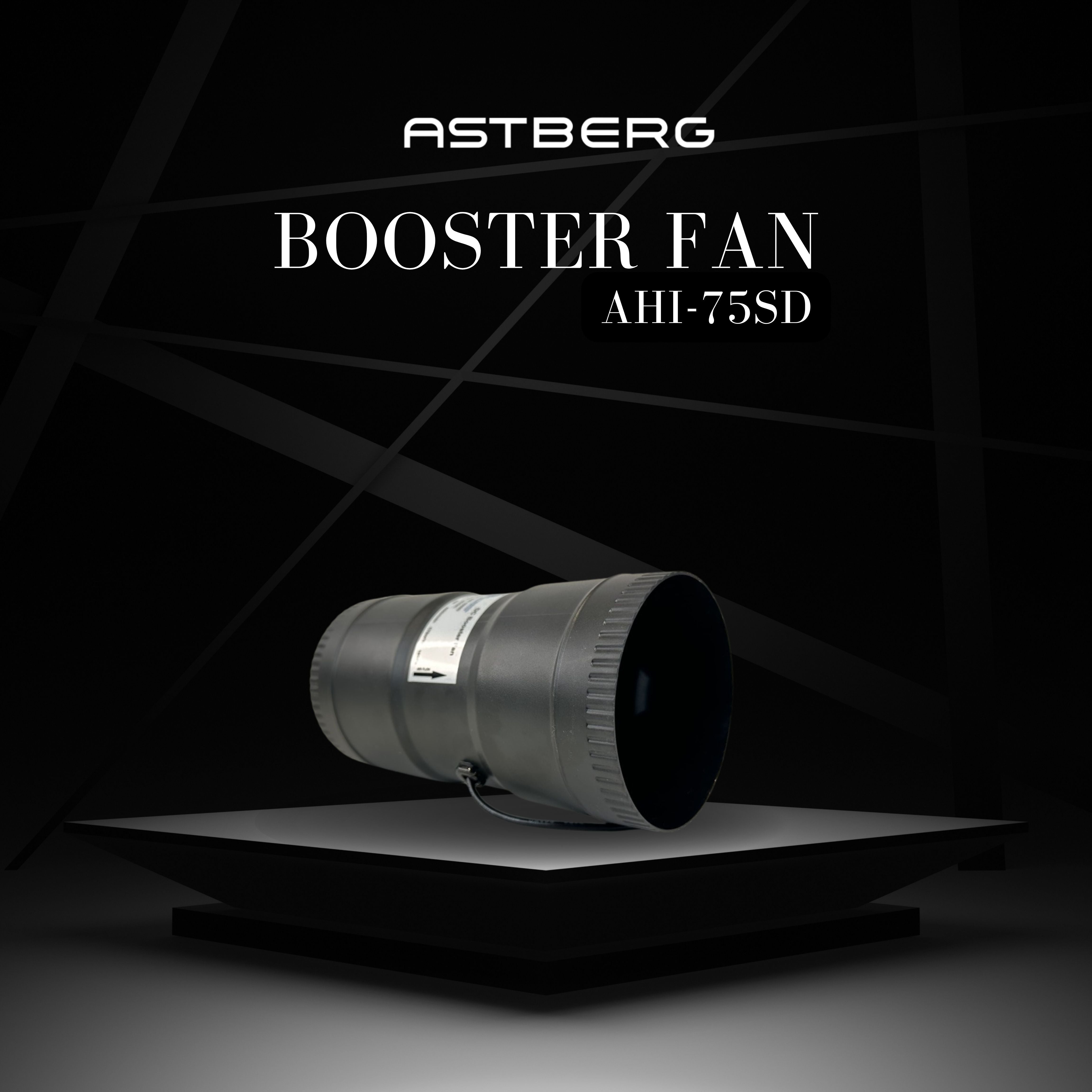

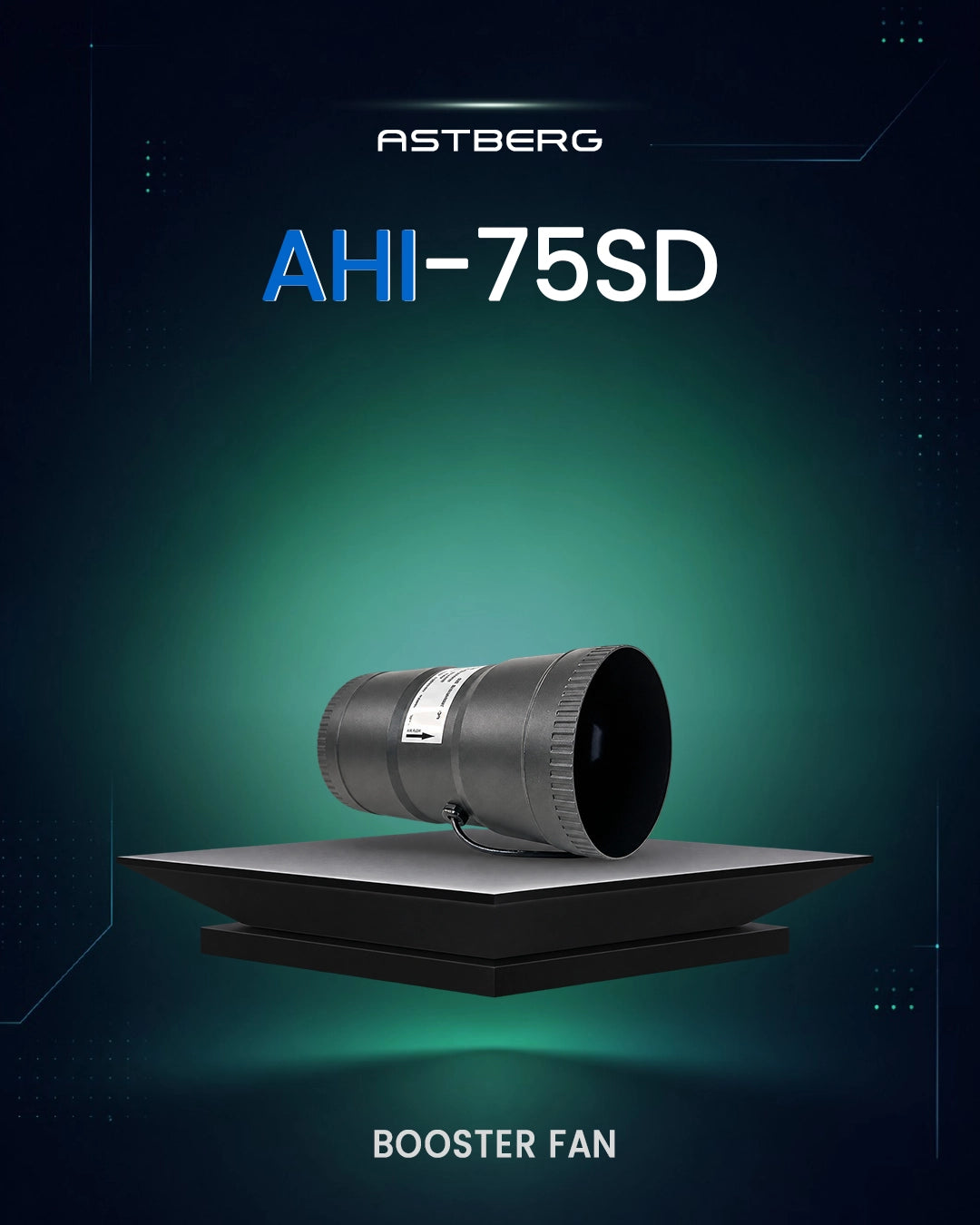

ASTBERG BLDC PIPE INLINE DUCT VENTILATION BOOSTER EXHAUST FAN WITH REMOTE AHI75SD 75MM 3" 165CMH
ASTBERG BLDC PIPE INLINE DUCT VENTILATION BOOSTER EXHAUST FAN WITH REMOTE AHI75SD 75MM 3" 165CMH
AHI-SD FAN SERIES

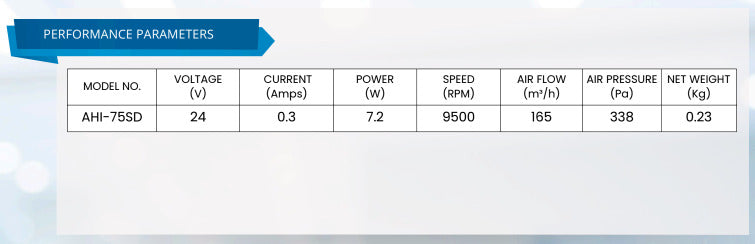

Product Specifications:
- Model: AHI-75SD
- Fan Diameter: 75mm
- Max. Airflow: 165m 3 /h

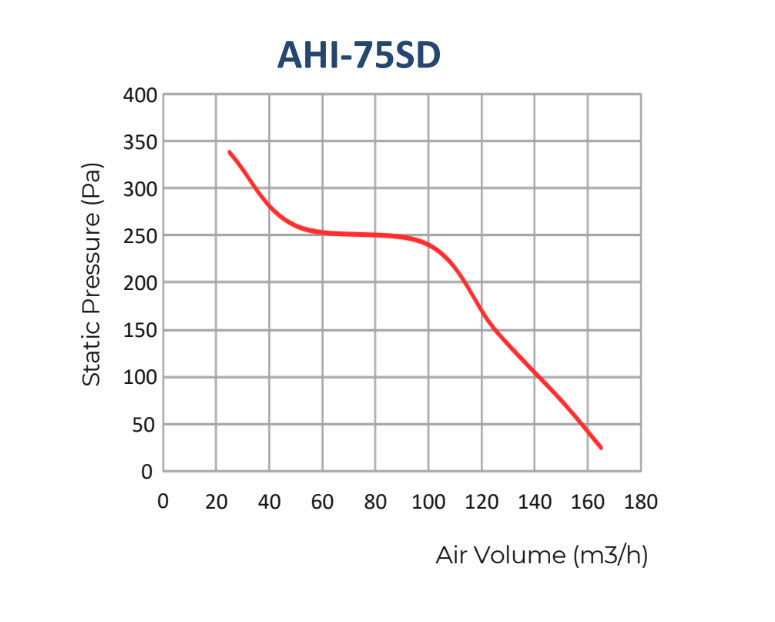

- Static Pressure: 338 Pa
- Voltage : 220V/ 50Hz
- Color: Black
- Speed: 9500 rpm
- Power: 21.6W
- Current: 0.9 (amp)
Adapted to any circumstance where strong ventilation is requested, such as metallurgy, light industry, chemical industry, food factory, medical equipment, mechanical equipment or residential, commercial buildings. It's also adapted to air cooling systems.
- All models incorporate strong EC brushless motor for free speed control and lower energy consumption.
- Low profile and light weight: the fan casings are manufactured from pure ABS with straight design, it's double insulation
- High performance: small fan body with big airflow and air pressure.
- Firm and safe installation: concave-convex design to both ends which can increase force of friction during duct connections.
- Working temperature range: -20°C to +60°
-
AIR FLOW:- 165CMH
· Colour Black
· Electric fan design Exhaust Fan
· Power Source Corded Electric
· Style Modern

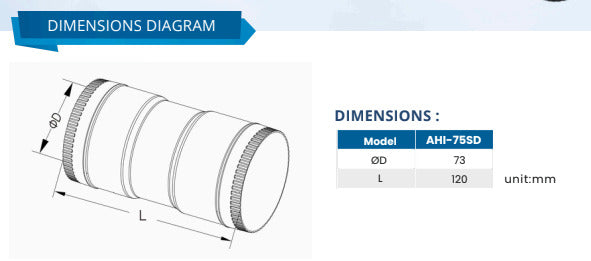

· Product Dimensions 120 x 73 MM
· Room Type Washroom, Bedroom, Living Room etc.
· Special Feature SPEED CONTROLLER
· Finish Type Polished
NET ZERO EMISSION
GREEN ENERGY
CO2 Control
Green Buildings
Engineered Airflow
Air in motion. Carbon at rest.
Every Astberg unit is tuned to move the maximum volume of air with the minimum draw of power — so your building breathes freely while the grid barely notices.
Air Quality Metrics
Measurable impact, every minute.
Aggregate performance from Astberg installations across commercial, residential and healthcare deployments.
Lower CO₂
Lower PM2.5
Lower PM10
Lower VOC
Fresh Air Exchange
The Air Path
How it breathes.
Four stages between stale and fresh. Follow the air through the unit.
Green Impact Estimator
What efficiency gives back.
Slide to match how you would run this unit. We will do the maths on the energy, money and carbon it hands back — every single year.
Your usage
Estimates compare this unit's rated draw against a conventional AC fan of similar airflow, at your local grid emission factor. Actual figures vary with speed setting and duct design.
Acoustics
Powerful. Not loud.
Thousands of cubic metres of air every hour, engineered to stay out of your conversations. Here is where this unit sits on the sound scale.
Sound pressure in dB(A), typical values at 3 m. The scale is logarithmic — every 10 dB drop is roughly half the perceived loudness.
