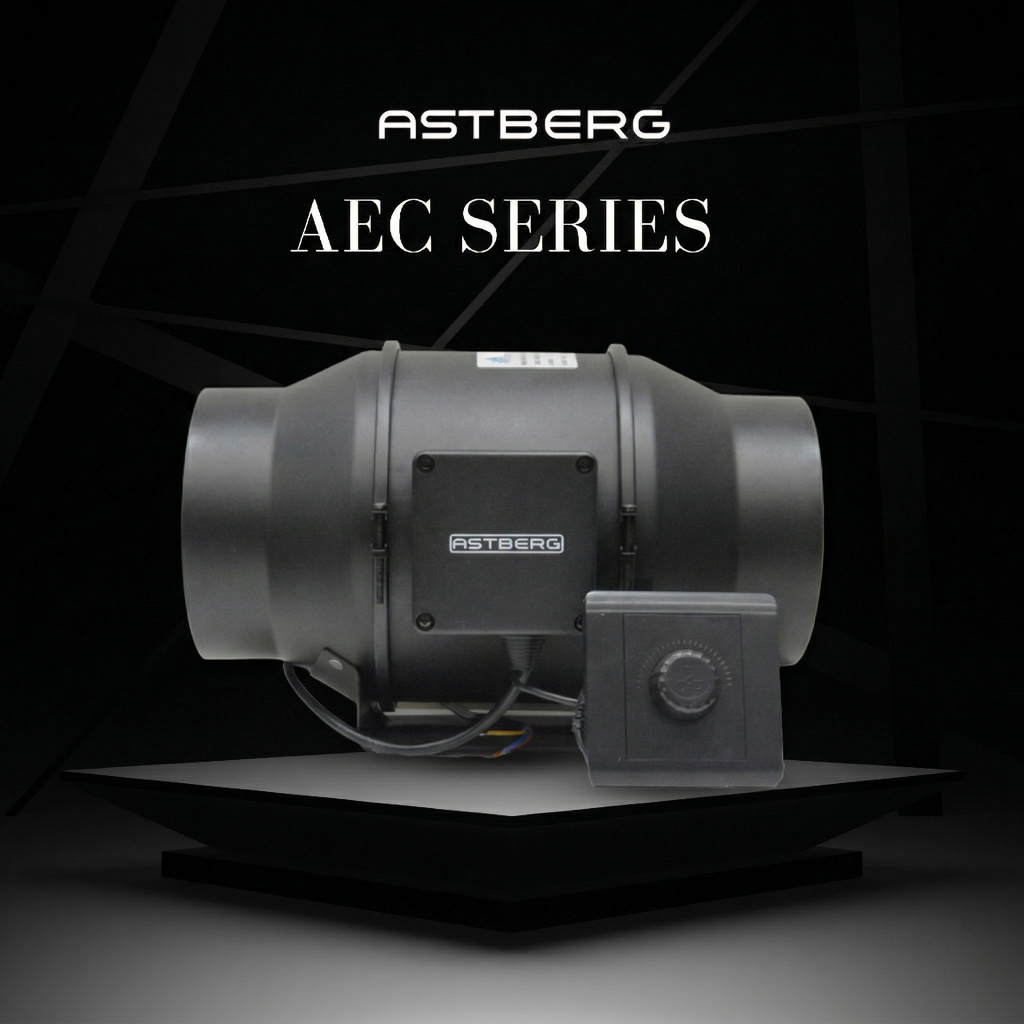

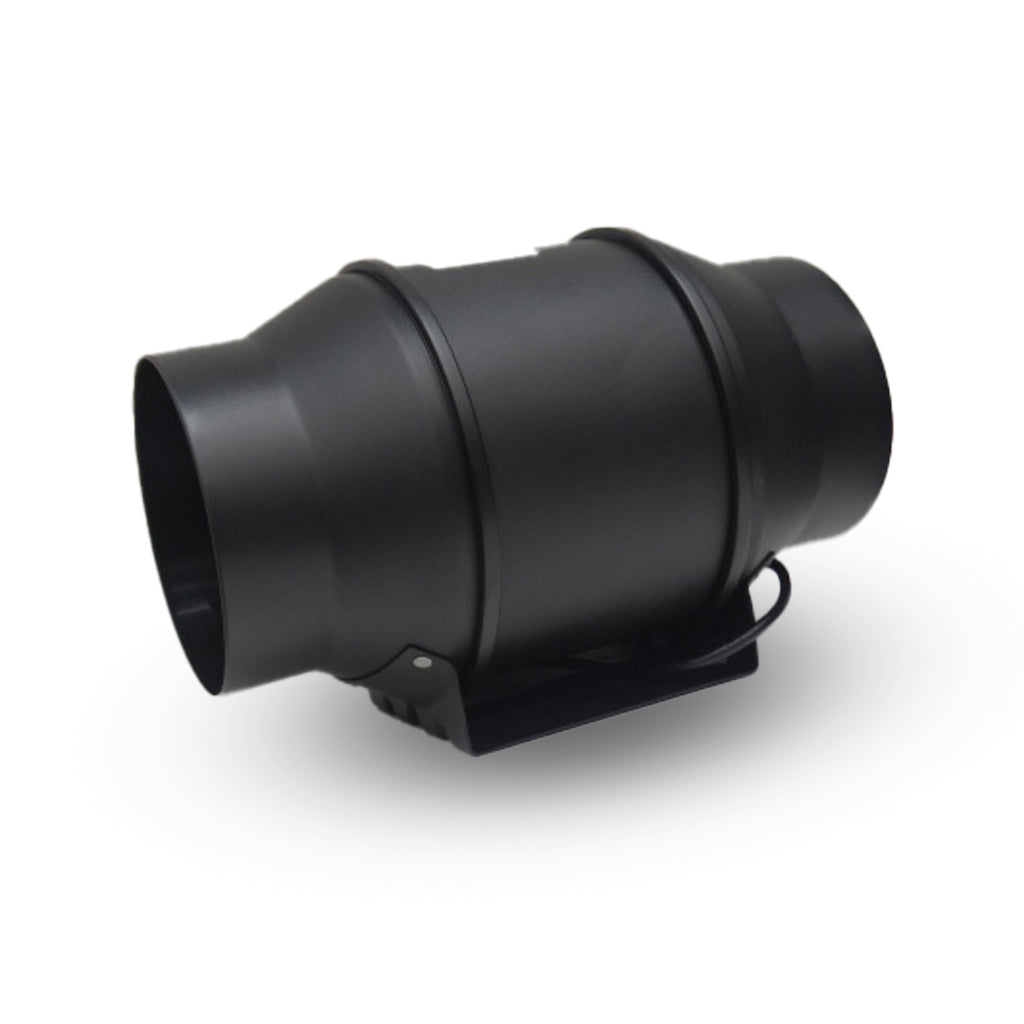

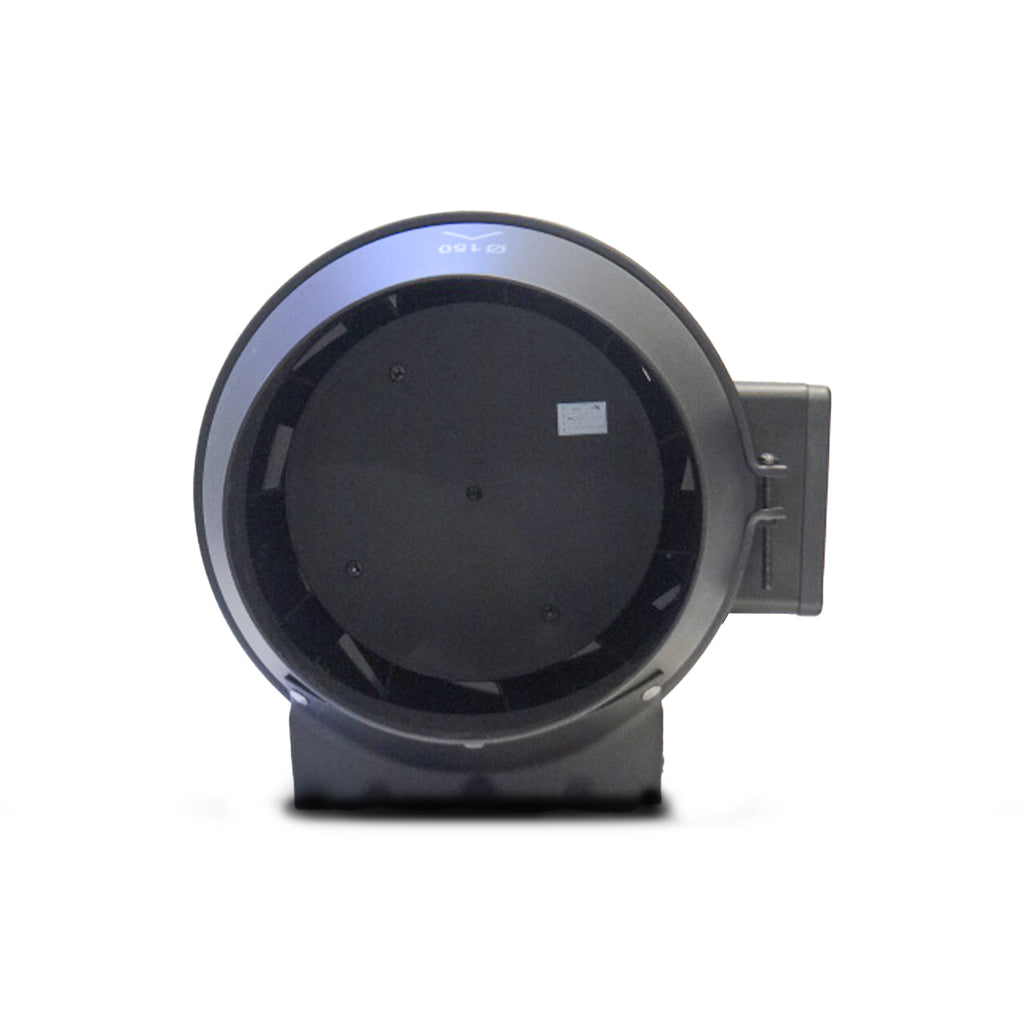

ASTBERG EC MOTOR SILENT MIXFLOW CIRCULAR INLINE VENTILATION FAN WITH REGULATOR AND VARIABLE SPEED AEC150 530CMH 150MM 6"
ASTBERG EC MOTOR SILENT MIXFLOW CIRCULAR INLINE VENTILATION FAN WITH REGULATOR AND VARIABLE SPEED AEC150 530CMH 150MM 6"
Exhaust Fan
Brand: Astberg
Color: cream
Product Specifications:

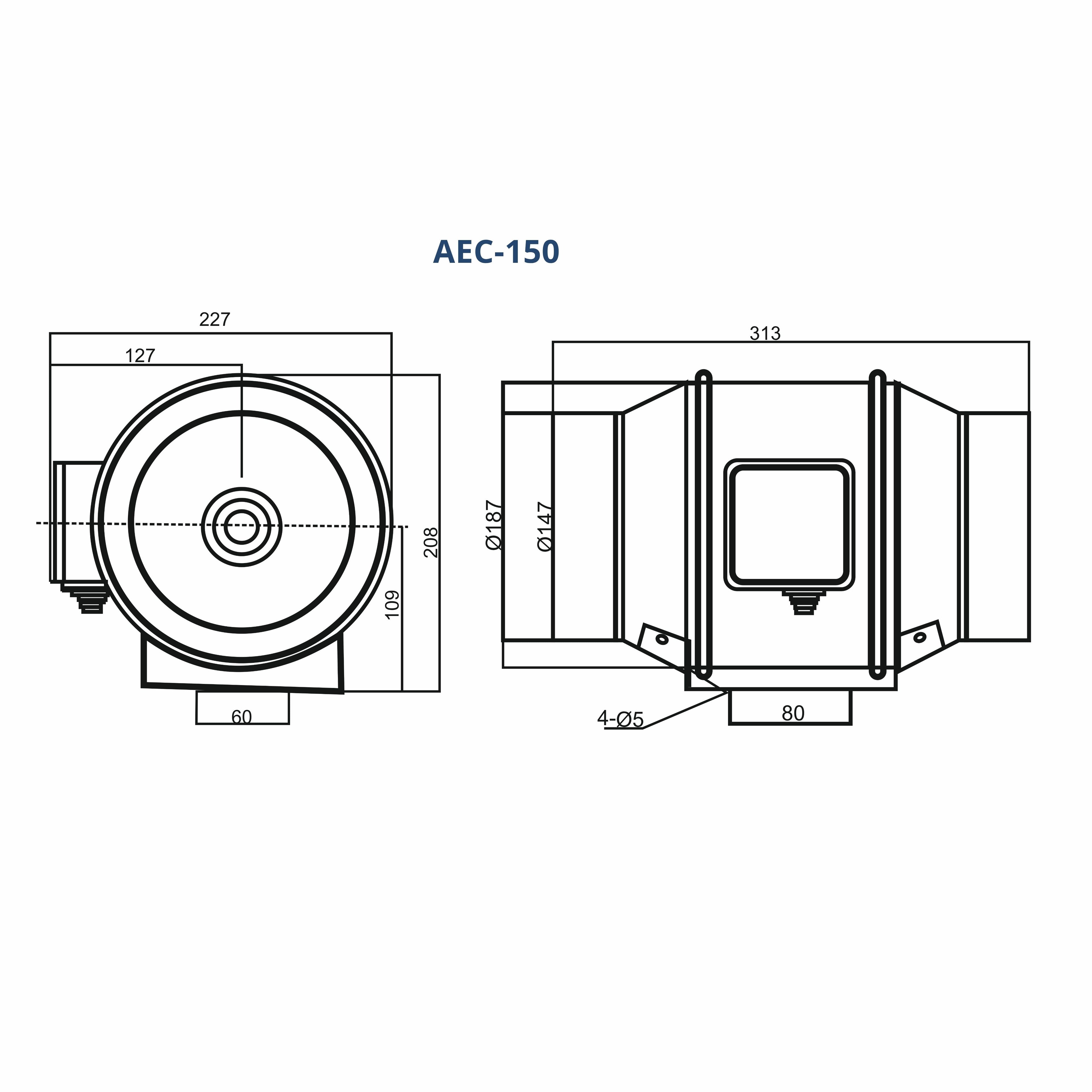

- Model: AEC150
- Size of Duct: 150mm (6)
- Max. Airflow:530 m 3 /h
- Max. Pressure: 350 Pa
- Voltage : 220V/ 50Hz
- Net Weight:1.8 kg
- Color: BLACK
- Body:- Metal
- Power:- 50W
- Speed: 2550 rpm
Features:
- Astberg EC duct fans are used in indoor grow facilities and vertical farms, heating and cooling transfer, commercial drying and air filtration applications. Our inline blowers can also create negative pressure environments, simulate wind, exhaust odors and smoke as well as intake fresh air from outdoors
- With same speed, EC motor has better working performance, lower power and lower noise.
- With speed controllable, 0-10V voltage controllable and PWM signal transferring.
- Strong airflow and air pressure The unlimitedfrequency feature greatly increases the fan rotating speed; the small motor design increases the air supply area.
- High efficiency, low power Comparing to AC fan at the same size and same speed,EC fan has lower energy consumption.
- Speed controllable, 0-10V voltage controllable and PWM signal controllable.
- 0-10V voltage controllable and PWM signal transferring. High controllability fan with intelligent protection Vector control, with over-current protection, over- voltage protection, shake-proof protection, over- temperature protection, overload
protection. High efficiency, long working life, low

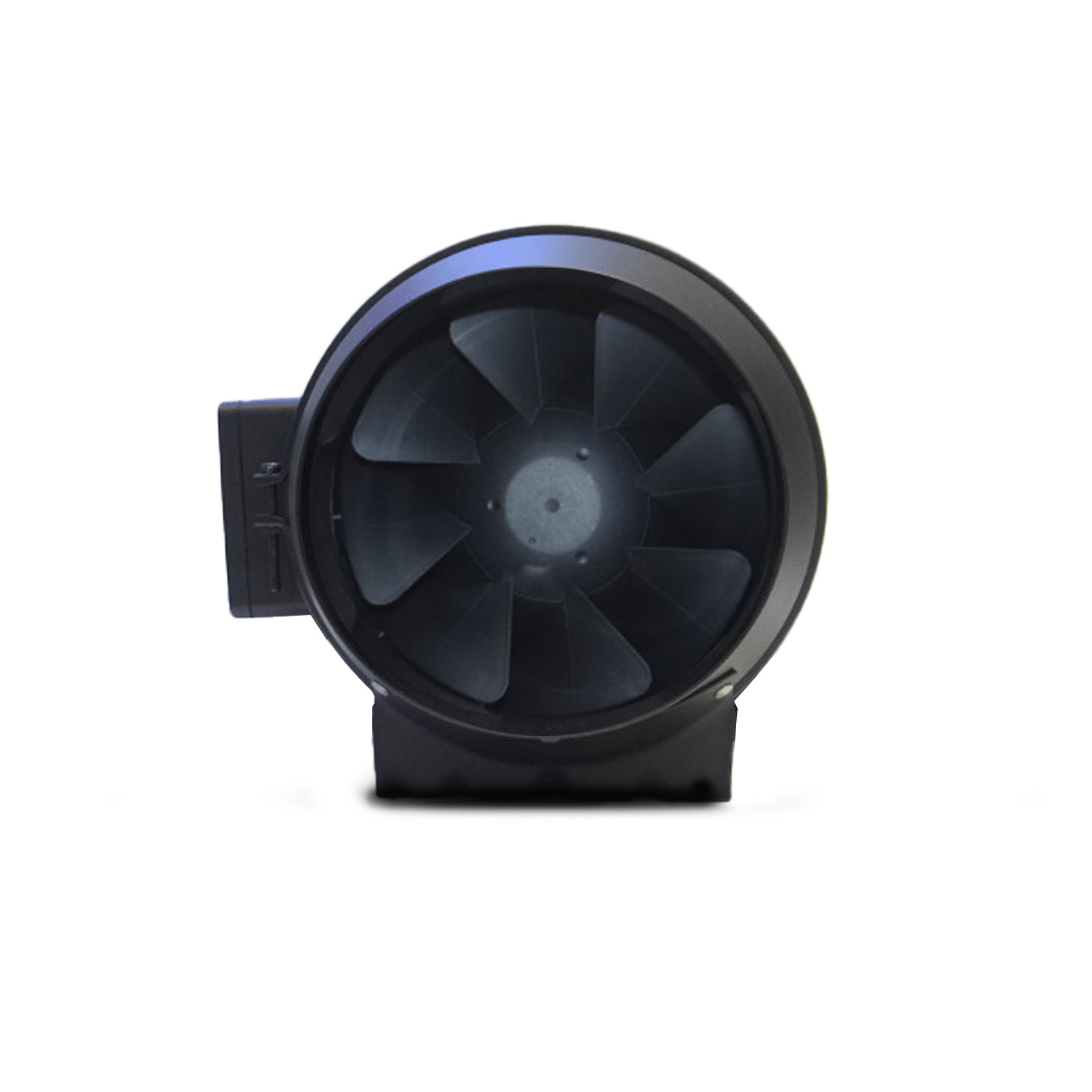

vibration and continuous working . - Built with cutting edge brushless EC Motor and dual jet type blades, this blower delivers 530CMH airflow rate using just 50 Watts at max speed. Our fans don’t “purge” or waste electricity at lower speeds.

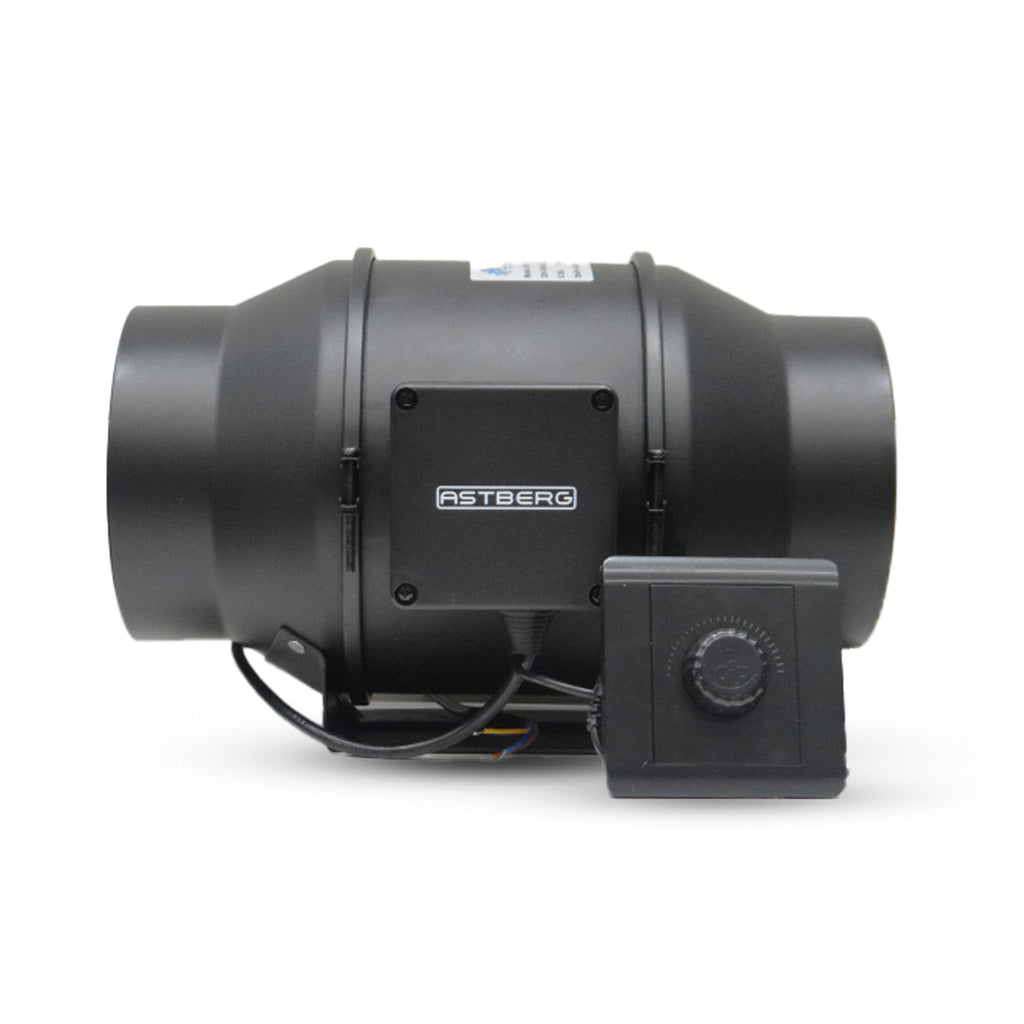

- Our EC fan gives you a unique flexibility of controls – choose any speed from 0 to 100% using the included variable speed controller without creating background noise or hum at low speeds. Or choose to upgrade to a wireless remote control or intelligent thermostat speed controller with temperature programming .

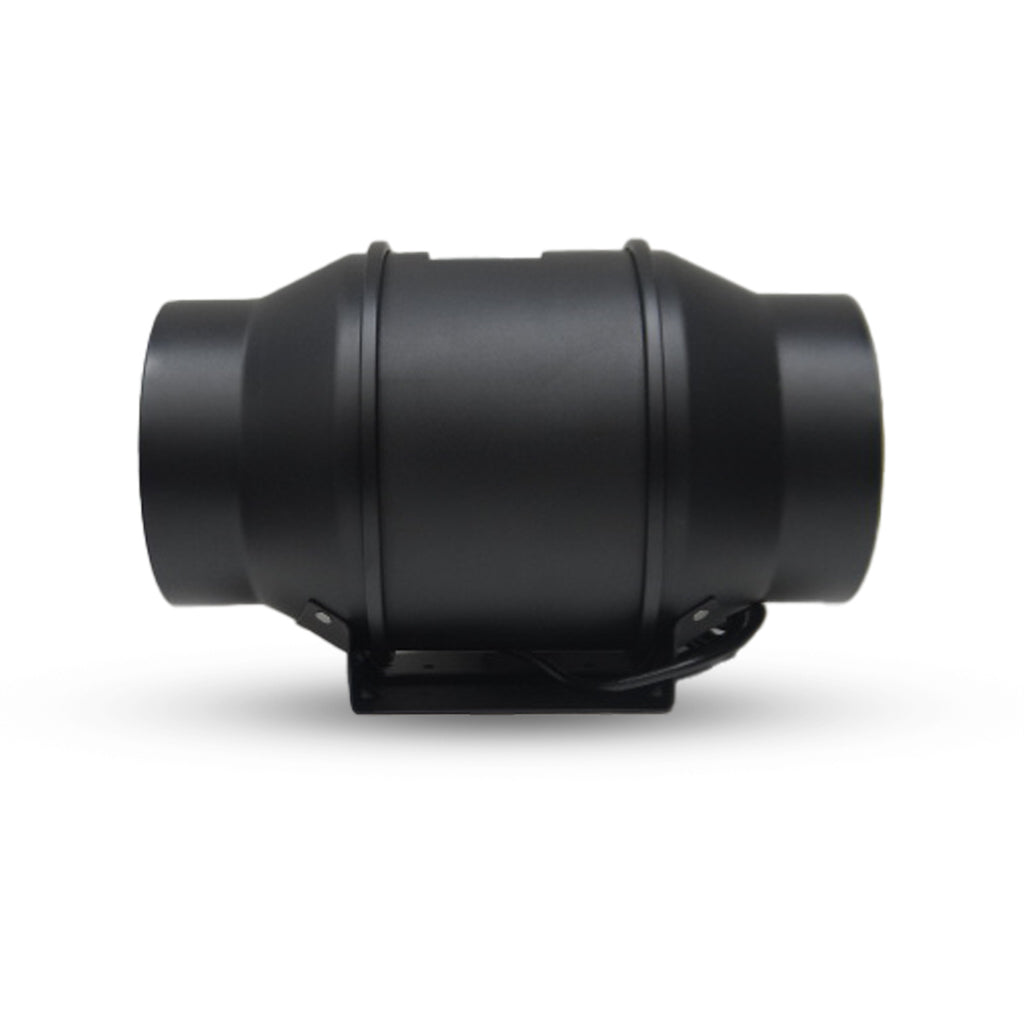

- Coated steel housing resists rust, protects motor and blades from accidental damage and harsh elements to reduce maintenance in demanding applications. This fan has IPX4 ingress protection rating
model number: AEC 150
Part Number: AEC
Package Dimensions: 12.2 x 8.7 x 7.9 inches
