What Is an Exhaust Fan? Types, Uses, and How It Works

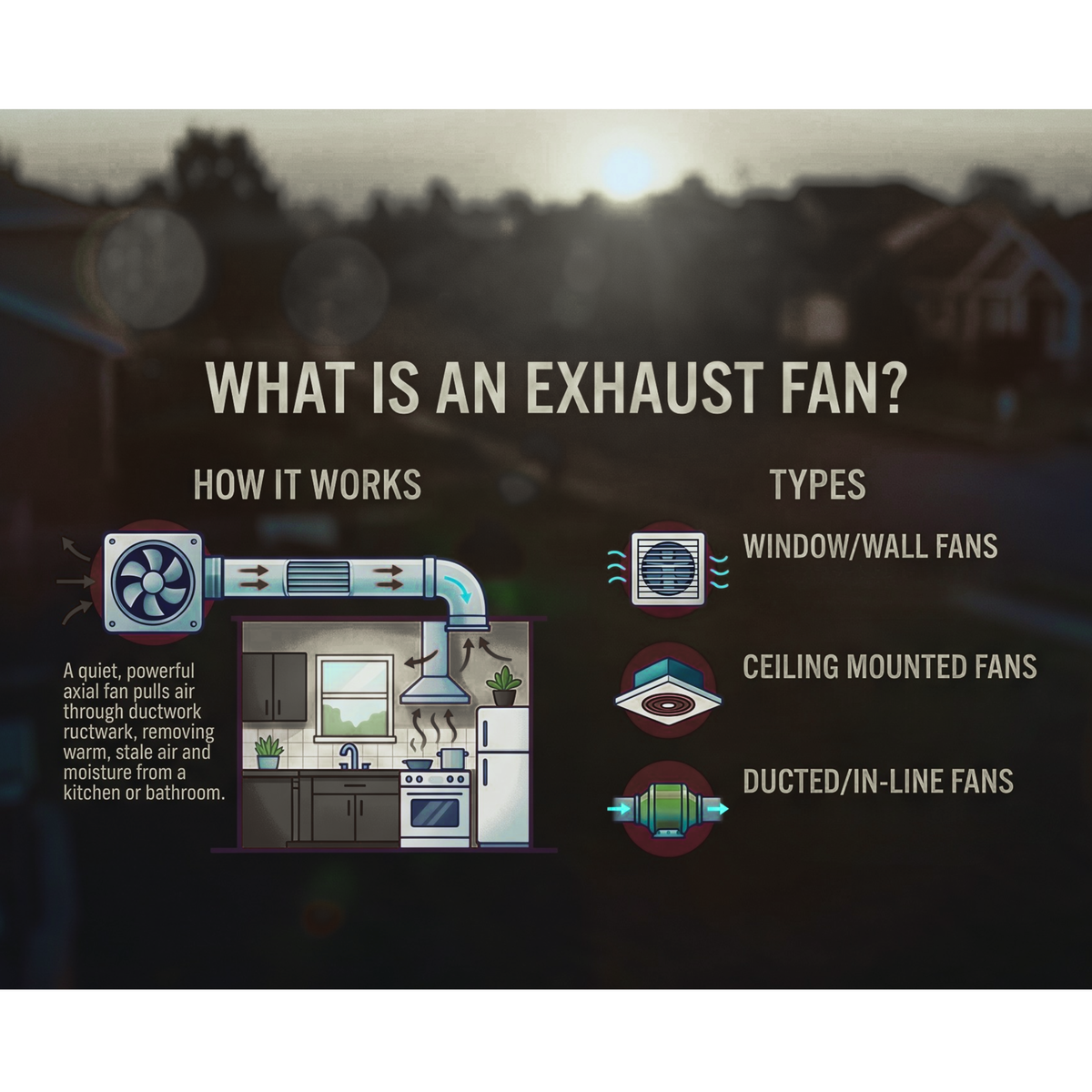

An exhaust fan is a mechanical ventilation device that pulls stale, humid, or odour-laden air out of an enclosed space and expels it outside through a duct, wall opening, or roof vent. It works by spinning a motor-driven impeller that creates negative pressure, drawing air out of the room while fresh air enters through doors, windows, or vents to replace it. Common types include wall-mounted, ceiling-mounted, inline duct, and window units, used across bathrooms, kitchens, and industrial facilities.
Exhaust Fan vs Ventilation Fan: What's the Difference
An exhaust fan removes air from one specific point — typically a kitchen, bathroom, or workshop — and expels it directly outside in a single direction. A ventilation fan circulates air across an entire structure, simultaneously drawing in fresh outdoor air and expelling stale indoor air to regulate temperature and air quality throughout a building rather than just in one room.
Exhaust Fan vs Exhaust Hood vs Chimney: Which One Do You Actually Need
An exhaust fan extracts general stale air and odours from a room and works well for moisture and mild cooking smells. An exhaust hood (kitchen chimney) sits directly above the cooking surface and captures grease, smoke, and oil particles at the source before they spread — the better choice for heavy daily cooking — while a basic exhaust fan suits lighter use or kitchens without space for hood installation.
Wall Exhaust Fan vs Window Exhaust Fan
A wall exhaust fan is installed through an opening cut in an exterior wall and vents directly outside through a short duct, while a window exhaust fan fits inside an existing window frame without permanent wall modification. Wall units offer more placement flexibility; window units are easier to install and remove but depend on having a suitable window available.
AC Motor vs EC Motor Exhaust Fans
AC motor exhaust fans use traditional induction motors that are inexpensive but less energy-efficient, typically drawing 20–40W for standard residential use. EC (electronically commutated) motor fans use brushless DC technology that's significantly more efficient — often just 5–15W for similar airflow — and run quieter and last longer, though they cost more upfront.
Ducted vs Ductless (Recirculating) Exhaust Fans
Ducted exhaust fans vent extracted air outside the building, fully removing moisture and odours. Ductless fans recirculate room air through a carbon filter that traps odours but doesn't remove moisture, making them unsuitable as primary ventilation for bathrooms or kitchens — useful only when ducting genuinely isn't possible.
Axial vs Centrifugal Exhaust Fans
Axial fans move air parallel to the fan shaft using propeller-like blades, suited to low-resistance scenarios like short duct runs or simple wall venting. Centrifugal fans move air at a right angle using a rotating impeller in a scroll casing, generating more static pressure — better suited to long or complex duct runs with higher resistance.
Exhaust Fan vs Air Purifier
An exhaust fan removes air from a room and replaces it with fresh outdoor air, taking moisture, odours, and pollutants with it. An air purifier doesn't replace air — it filters and recirculates the air already in the room, removing particulates and allergens but not moisture or excess CO2. For humidity and odour control you need an exhaust fan; for filtering fine particulates and pollen, a purifier complements it.
How to Calculate the Right Exhaust Fan Size for Any Room
Multiply room volume (length × width × height in metres) by the recommended air changes per hour for that room type — 8–10 for bathrooms, 15–20 for kitchens, 10–15 for utility rooms — to get the minimum required airflow in m³/h. Choose a fan rated at or above that figure, adding margin if the duct run is long.
Best Exhaust Fan for a Bathroom With No Window
A bathroom without an exterior wall or window needs a ceiling-mounted ducted exhaust fan that vents through the ceiling cavity to a roof or outside wall opening. Look for a minimum IP44 rating, 80–150 m³/h airflow for a standard 4–6 m² bathroom, under 35 dB noise, and ideally a humidity sensor for automatic operation.
Best Exhaust Fan for a Small Kitchen
A small kitchen generally needs an exhaust fan rated 150–250 m³/h — lower than the 250–500 m³/h needed for larger or open-plan kitchens. A wall-mounted unit near the cooking area or a hob-mounted hood works well; prioritise models with a grease filter to protect the motor over time.
Exhaust Fan IP Rating Explained
IP rating (Ingress Protection) indicates how well sealed a fan is against dust and moisture — the first digit covers dust, the second covers water. IP44 (protected against splashing water) is the minimum standard for a bathroom outside the shower zone; IP65 or higher is required directly above or within a shower enclosure where water exposure is direct.
How Many Air Changes Per Hour Does Your Room Actually Need
Recommended air changes per hour vary by room type: bathrooms and toilets need 8–10, kitchens need 15–20, utility and laundry rooms need 10–15, and commercial kitchens can require 20–30 or more. Multiply room volume by the relevant ACH rate to get the required airflow in m³/h.
Installation and Maintenance
How to Install a Ceiling Exhaust Fan: Step-by-Step Guide
Installing a ceiling exhaust fan involves cutting an opening sized to the fan housing, securing the housing to a ceiling joist or frame, running duct from the fan outlet to an outside vent, wiring the fan to a switch or timer, sealing gaps around the ducting, and testing airflow before fitting the grille cover.
How to Clean and Maintain an Exhaust Fan
Clean the intake grille every 3–6 months with warm soapy water to remove dust and lint buildup, check the duct annually for obstructions or condensation, verify the external vent and backdraught damper open freely, and listen for grinding or rattling that signals worn motor bearings.
Exhaust Fan Not Working? Common Causes and Fixes
Common causes include a tripped breaker or blown fuse, faulty switch wiring, worn motor bearings, or a blocked duct or grille restricting airflow. Check the power supply first, then clean the grille and duct, test the switch, and replace the motor if bearings have failed
Exhaust Fan Making Noise? Here's What It Means
A grinding or rattling sound usually indicates worn motor bearings needing lubrication or replacement, while vibration often means loose mounting screws or an unbalanced blade. Humming without rotation suggests a seized motor; buzzing can point to an electrical issue in the capacitor or wiring.
Use-Case / Application-Specific
Exhaust Fans for Commercial Kitchens
Commercial kitchen exhaust systems require far higher airflow than residential setups (often 20–30+ air changes per hour), heavy-duty grease filtration, fire-code-compliant ducting, and continuous-duty motors rated for nonstop operation. Local fire and building codes typically set specific exhaust requirements for commercial cooking equipment.
Exhaust Fans for Server Rooms and Data Centres
Server room ventilation must handle continuous heat loads from equipment, often requiring redundant fans, precise temperature and humidity control, and motors rated for 24/7 reliability. Airflow sizing is based on equipment heat output rather than just room volume.
Exhaust Fans for Garages and Workshops
Garage and workshop exhaust fans need to handle fumes from paint, solvents, or vehicle exhaust along with dust and heat, generally requiring higher airflow capacity and more robust motor housing than residential units — and an explosion-proof rating where flammable materials are present.
Exhaust Fans for Basements
Basement exhaust fans address the dampness and musty odour common in below-ground spaces with little natural airflow, typically requiring ducted ceiling or wall units with humidity sensors since basements often lack window access for natural ventilation.
Industrial Exhaust Fans: What Changes at Scale
Industrial exhaust fans differ from residential ones in airflow capacity (often thousands of m³/h versus hundreds), higher static pressure capability for long or complex ducting, continuous-duty motors built for nonstop operation, and construction designed to withstand higher temperatures or corrosive airborne contaminants.
Problem-Driven Topics
Mould in the Bathroom Despite an Exhaust Fan — What's Going Wrong
If mould persists despite a running fan, likely causes include an undersized fan for the room, the fan not running long enough after showers, a blocked or leaking duct preventing moist air from actually leaving the building, or incorrect fan placement relative to the humidity source. Run the fan 15–20 minutes after showering and inspect duct integrity.
Exhaust Fan Not Pulling Air: Causes and Fixes
Weak airflow usually traces to a blocked or dirty grille restricting intake, kinked or crushed ducting reducing flow, a duct run too long for the fan's static pressure rating, or motor wear slowing the impeller. Clean the grille and duct first, then check whether the fan is correctly sized for the duct length.
Why Does My Kitchen Still Smell After Using the Exhaust Fan
Lingering smell after fan use often means the fan is undersized for the kitchen's cooking volume (most kitchens need 250–500 m³/h), the fan was switched off too soon after cooking, or grease buildup in the grille and duct is reducing extraction efficiency and trapping odour-causing particles.
Cost and Local Relevance
Exhaust Fan Electricity Cost: How Much Does Running One Add to Your Bill
Running an exhaust fan typically costs very little — a standard residential fan draws 15–40W depending on motor type. A 30W fan run continuously for 24 hours consumes about 0.72 kWh/day, which at typical Indian electricity rates works out to roughly ₹5–7/day for continuous operation, far less for intermittent bathroom or kitchen use.
Exhaust Fans for Humid and Monsoon Climates
In humid monsoon climates, exhaust fans matter more because natural drying through open windows is unreliable when ambient humidity stays high. Continuous low-speed operation or humidity-sensor-activated fans help prevent the mould, mildew, and musty odours that develop faster under sustained high humidity.
Building Code and Ventilation Standards for Exhaust Fans in India
India's National Building Code and local municipal regulations generally set minimum ventilation requirements for bathrooms and kitchens in residential and commercial construction, typically referencing minimum air change rates and exhaust outlet placement — though exact figures and enforcement vary by state and municipality, so check with the local building authority for project-specific requirements.
Note on accuracy: Specs and figures above (airflow ranges, dB levels, electricity costs, code references) are general industry ranges for drafting purposes — verify against your actual product specs and current local tariffs/codes before publishing, since these become factual claims once live.
